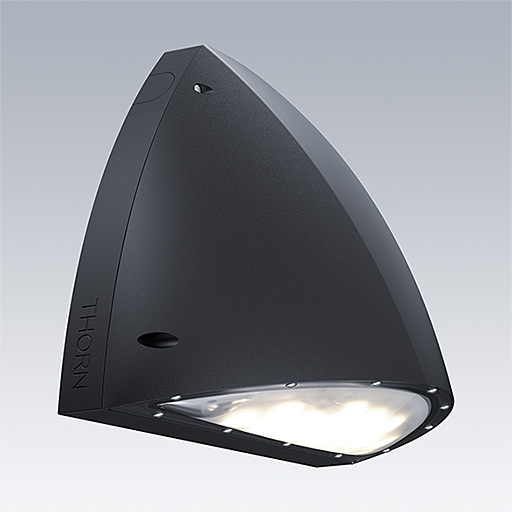

Piazza 3

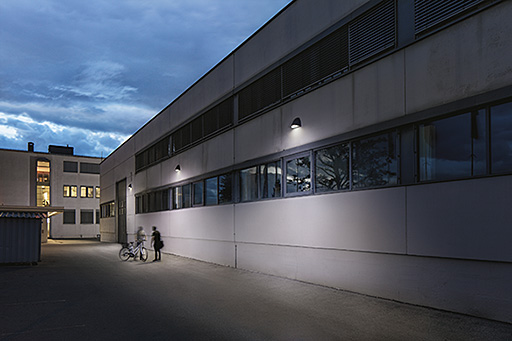

A robust and adaptable IP65 outdoor wall mounted luminaire with a unique light distribution, ideal for building perimeter applications
- Unika ljustekniska data med 3 meters framåtriktat ljus och 12 meters mellanrum - idealiskt för kringgående fotvägar. Utmärkt effektivitet på upp till 130 lm/W.
- Komplett med LCS LED-teknik med tre tre ljusstyrkor(900/1600/2700lm) i färgtemperaturer 2700K, 3000K och 4000K vardera, CS LED teknik med färgtemperaturer 2700K, 3000K och 4000K för HFIX versionen.
- Finns i E3 och E3D, även kompatibel med Central Emergency System.
- Bakmontering, kompatibel med BESA och ytmonterad krets. Överkoppling möjlig utom för HFIX och E3D.
Utförande
Back-plate: EN-AC44300 die-cast aluminium painted anthracite (RAL7016)
Body: UV resistant polycarbonate In anthracite colour (RAL 7016)
Diffuser: UV resistant textured clear polycarbonate
Suitable for C5 (standard corrosion class according to ISO 9223 : 2012) without additional coating
Installering och montering
Wall mounted luminaire. Back mounted, BESA and surface mounted conduit compatible. Ø20 mm cable entry via rear or side conduit entries. Recommended 3-4 metre mounting height. Include captive screw.
New Product
LumExpress Product
eControl Product
▼ Piazza 3
Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
---|---|---|---|---|---|---|---|---|---|
PIAZZA 3 9-16-27 827-830-840 HF ANT | 20 | 2640 | LED | 3.55 | 96800094 |
▼ Piazza 3, Emergency
Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
---|---|---|---|---|---|---|---|---|---|
PIAZZA 3 9-16-27 827-830-840 HF ANT E3 | 24 | 2643 | LED | 3.55 | 96800095 | ||||
PIAZZA 3 9-16-27 827-830-840 HF ANT E3D | 24 | 2643 | LED | 3.55 | 96800096 |
▼ Piazza 3, Dimmable
Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
---|---|---|---|---|---|---|---|---|---|
PIAZZA 3 2700 827-830-840 HFIX EC ANT | 20 | 2601 | LED | 3.55 | 96800099 |
