Axyl Glow

  • Axyl Glow

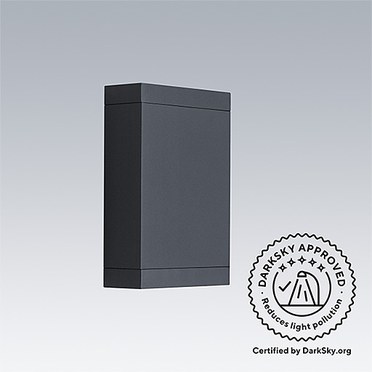

Axyl Glow is a square shaped wall luminaire offering an elegant simple design for building surround applications

  • Elegant väggarmatur i tre storlekar (liten, medium, stor) och fyra av Thorns standardfärger (grå, antracit, svart, vit)
  • Ger en mjuk och diffus belysningseffekt perfekt för att skapa en avspänd stämning i byggnadens omgivningar och stor visuell komfort
  • Finns i 2700K, 3000K, 4000K och CRI90
  • Axyl Glow finns med anslutning utan ljusreglering eller DALI2 (alternativ med externt driftdon)
  • Det internationella Dark Sky godkännandet för fixturer avser endast ≤ 3000 K med ljusregleringsfunktion och endast nedåtriktat ljus. Armaturerna måste monteras enligt fotometriska mätningar

Utförande

Die-cast aluminium housing.
Acid-etched glass.
Stainless steel screws.
Silicone gaskets.
Double Powder Paint process.
Suitable for C3 (standard corrosion class according to ISO 9223 : 2012).

Installering och montering

Suitable for wall mounting with 2 oblong fixing points for positioning.
Fixing anchors and screw not delivered with product.
Pre-wired with 5m cable.
Remote DALI-2 driver to be ordered separately.

New Product
LumExpress Product
eControl Product

▼ Axyl Glow, liten nedåt

BeskrivningArmatureffekt (W)Armaturljusflöde (lm)   TypeVikt (kg)SAP nummer
AXYL GLOW S DWN 1L927 WB HF ANT490LED1.4096700145
AXYL GLOW S DWN 1L927 WB HF BK490LED1.4096700143
AXYL GLOW S DWN 1L927 WB HF WH490LED1.4096700142
AXYL GLOW S DWN 1L927 WB RD ANT490LED1.4096701261
AXYL GLOW S DWN 1L927 WB RD BK490LED1.4096701259
AXYL GLOW S DWN 1L927 WB RD WH490LED1.4096701258
AXYL GLOW S DWN 1L930 WB HF ANT495LED1.4096700153
AXYL GLOW S DWN 1L930 WB HF BK495LED1.4096700151
AXYL GLOW S DWN 1L930 WB HF GY495LED1.4096700152
AXYL GLOW S DWN 1L930 WB HF WH495LED1.4096700150
AXYL GLOW S DWN 1L930 WB RD ANT495LED1.4096701269
AXYL GLOW S DWN 1L930 WB RD BK495LED1.4096701267
AXYL GLOW S DWN 1L930 WB RD GY495LED1.4096701268
AXYL GLOW S DWN 1L930 WB RD WH495LED1.4096701266
AXYL GLOW S DWN 1L940 WB HF ANT4102LED1.4096700149
AXYL GLOW S DWN 1L940 WB HF BK4102LED1.4096700147
AXYL GLOW S DWN 1L940 WB HF GY4102LED1.4096700148
AXYL GLOW S DWN 1L940 WB HF WH4102LED1.4096700146
AXYL GLOW S DWN 1L940 WB RD ANT4102LED1.4096701265
AXYL GLOW S DWN 1L940 WB RD BK4102LED1.4096701263
AXYL GLOW S DWN 1L940 WB RD GY4102LED1.4096701264
AXYL GLOW S DWN 1L940 WB RD WH4102LED1.4096701262
AXYL GLOW S DWN1L927 WB HF GY490LED1.4096700144
AXYL GLOW S DWN1L927 WB RD GY490LED1.4096701260

▼ Axyl Glow, liten upp- & nedåt

BeskrivningArmatureffekt (W)Armaturljusflöde (lm)   TypeVikt (kg)SAP nummer
AXYL GLOW S U/D 2L927 WB HF ANT5180LED1.4096700157
AXYL GLOW S U/D 2L927 WB HF BK5180LED1.4096700155
AXYL GLOW S U/D 2L927 WB HF GY5180LED1.4096700156
AXYL GLOW S U/D 2L927 WB HF WH5180LED1.4096700154
AXYL GLOW S U/D 2L927 WB RD ANT5180LED1.4096701297
AXYL GLOW S U/D 2L927 WB RD BK5180LED1.4096701295
AXYL GLOW S U/D 2L927 WB RD GY5180LED1.4096701296
AXYL GLOW S U/D 2L927 WB RD WH5180LED1.4096701294
AXYL GLOW S U/D 2L930 WB HF ANT5190LED1.4096700165
AXYL GLOW S U/D 2L930 WB HF BK5190LED1.4096700163
AXYL GLOW S U/D 2L930 WB HF GY5190LED1.4096700164
AXYL GLOW S U/D 2L930 WB HF WH5190LED1.4096700162
AXYL GLOW S U/D 2L930 WB RD ANT5190LED1.4096701305
AXYL GLOW S U/D 2L930 WB RD BK5190LED1.4096701303
AXYL GLOW S U/D 2L930 WB RD GY5190LED1.4096701304
AXYL GLOW S U/D 2L930 WB RD WH5190LED1.4096701302
AXYL GLOW S U/D 2L940 WB HF ANT5205LED1.4296700161
AXYL GLOW S U/D 2L940 WB HF BK5205LED1.4296700159
AXYL GLOW S U/D 2L940 WB HF GY5205LED1.4296700160
AXYL GLOW S U/D 2L940 WB HF WH5205LED1.4296700158
AXYL GLOW S U/D 2L940 WB RD ANT5205LED1.4296701301
AXYL GLOW S U/D 2L940 WB RD BK5205LED1.4296701299
AXYL GLOW S U/D 2L940 WB RD GY5205LED1.4296701300
AXYL GLOW S U/D 2L940 WB RD WH5205LED1.4296701298

▼ Axyl Glow, medium nedåt

BeskrivningArmatureffekt (W)Armaturljusflöde (lm)   TypeVikt (kg)SAP nummer
AXYL GLOW M DWN 3L927 WB HF GY10321LED1.7196700168
AXYL GLOW M DWN 3L927 WB RD GY10321LED1.7196701272
AXYL GLOW M DWN 3L927 WB HF ANT10321LED1.7196700169
AXYL GLOW M DWN 3L927 WB HF BK10321LED1.7196700167
AXYL GLOW M DWN 3L927 WB HF WH10321LED1.7196700166
AXYL GLOW M DWN 3L927 WB RD ANT10321LED1.7196701273
AXYL GLOW M DWN 3L927 WB RD BK10321LED1.7196701271
AXYL GLOW M DWN 3L927 WB RD WH10321LED1.7196701270
AXYL GLOW M DWN 3L930 WB HF ANT10338LED1.7296700177
AXYL GLOW M DWN 3L930 WB HF BK10338LED1.7296700175
AXYL GLOW M DWN 3L930 WB HF GY10338LED1.7296700176
AXYL GLOW M DWN 3L930 WB HF WH10338LED1.7296700174
AXYL GLOW M DWN 3L930 WB RD ANT10338LED1.7296701281
AXYL GLOW M DWN 3L930 WB RD BK10338LED1.7296701279
AXYL GLOW M DWN 3L930 WB RD GY10338LED1.7296701280
AXYL GLOW M DWN 3L930 WB RD WH10338LED1.7296701278
AXYL GLOW M DWN 3L940 WB HF ANT10365LED1.7196700173
AXYL GLOW M DWN 3L940 WB HF BK10365LED1.7196700171
AXYL GLOW M DWN 3L940 WB HF GY10365LED1.7196700172
AXYL GLOW M DWN 3L940 WB HF WH10365LED1.7196700170
AXYL GLOW M DWN 3L940 WB RD ANT10365LED1.7196701277
AXYL GLOW M DWN 3L940 WB RD BK10365LED1.7196701275
AXYL GLOW M DWN 3L940 WB RD GY10365LED1.7196701276
AXYL GLOW M DWN 3L940 WB RD WH10365LED1.7196701274

▼ Axyl Glow, medium up & down

BeskrivningArmatureffekt (W)Armaturljusflöde (lm)   TypeVikt (kg)SAP nummer
AXYL GLOW M U/D 6L927 WB HF ANT19644LED1.7796700181
AXYL GLOW M U/D 6L927 WB HF BK19644LED1.7796700179
AXYL GLOW M U/D 6L927 WB HF GY19644LED1.7796700180
AXYL GLOW M U/D 6L927 WB HF WH19644LED1.7796700178
AXYL GLOW M U/D 6L927 WB RD ANT19644LED1.7796701309
AXYL GLOW M U/D 6L927 WB RD BK19644LED1.7796701307
AXYL GLOW M U/D 6L927 WB RD GY19644LED1.7796701308
AXYL GLOW M U/D 6L927 WB RD WH19644LED1.7796701306
AXYL GLOW M U/D 6L930 WB HF ANT19678LED1.7796700189
AXYL GLOW M U/D 6L930 WB HF BK19678LED1.7796700187
AXYL GLOW M U/D 6L930 WB HF GY19678LED1.7796700188
AXYL GLOW M U/D 6L930 WB HF WH19678LED1.7796700186
AXYL GLOW M U/D 6L930 WB RD ANT19678LED1.7796701317
AXYL GLOW M U/D 6L930 WB RD BK19678LED1.7796701315
AXYL GLOW M U/D 6L930 WB RD GY19678LED1.7796701316
AXYL GLOW M U/D 6L930 WB RD WH19678LED1.7796701314
AXYL GLOW M U/D 6L940 WB HF ANT19732LED1.7896700185
AXYL GLOW M U/D 6L940 WB HF BK19732LED1.7896700183
AXYL GLOW M U/D 6L940 WB HF GY19732LED1.7896700184
AXYL GLOW M U/D 6L940 WB HF WH19732LED1.7896700182
AXYL GLOW M U/D 6L940 WB RD ANT19732LED1.7896701313
AXYL GLOW M U/D 6L940 WB RD BK19732LED1.7896701311
AXYL GLOW M U/D 6L940 WB RD GY19732LED1.7896701312
AXYL GLOW M U/D 6L940 WB RD WH19732LED1.7896701310

▼ Axyl Glow, stor nedåt

BeskrivningArmatureffekt (W)Armaturljusflöde (lm)   TypeVikt (kg)SAP nummer
AXYL GLOW L DWN 5L927 WB HF ANT16524LED2.3496700193
AXYL GLOW L DWN 5L927 WB HF BK16524LED2.3496700191
AXYL GLOW L DWN 5L927 WB HF GY16524LED2.3496700192
AXYL GLOW L DWN 5L927 WB HF WH16524LED2.3496700190
AXYL GLOW L DWN 5L927 WB RD ANT16524LED2.3496701285
AXYL GLOW L DWN 5L927 WB RD BK16524LED2.3496701283
AXYL GLOW L DWN 5L927 WB RD GY16524LED2.3496701284
AXYL GLOW L DWN 5L927 WB RD WH16524LED2.3496701282
AXYL GLOW L DWN 5L930 WB HF ANT16552LED2.1596700201
AXYL GLOW L DWN 5L930 WB HF BK16552LED2.1596700199
AXYL GLOW L DWN 5L930 WB HF GY16552LED2.1596700200
AXYL GLOW L DWN 5L930 WB HF WH16552LED2.1596700198
AXYL GLOW L DWN 5L930 WB RD ANT16552LED2.1596701293
AXYL GLOW L DWN 5L930 WB RD BK16552LED2.1596701291
AXYL GLOW L DWN 5L930 WB RD GY16552LED2.1596701292
AXYL GLOW L DWN 5L930 WB RD WH16552LED2.1596701290
AXYL GLOW L DWN 5L940 WB HF ANT16596LED2.1796700197
AXYL GLOW l DWN 5L940 WB HF BK16596LED2.1796700195
AXYL GLOW L DWN 5L940 WB HF GY16596LED2.1796700196
AXYL GLOW L DWN 5L940 WB HF WH16596LED2.1796700194
AXYL GLOW L DWN 5L940 WB RD ANT16596LED2.1796701289
AXYL GLOW l DWN 5L940 WB RD BK16596LED2.1796701287
AXYL GLOW L DWN 5L940 WB RD GY16596LED2.1796701288
AXYL GLOW L DWN 5L940 WB RD WH16596LED2.1796701286

▼ Axyl Glow, stor upp- & nedåt

BeskrivningArmatureffekt (W)Armaturljusflöde (lm)   TypeVikt (kg)SAP nummer
AXYL GLOW L U/D 10L927 WB HF GY291047LED2.3696700204
AXYL GLOW L U/D 10L927 WB RD GY291047LED2.3696701320
AXYL GLOW L U/D 10L927 WB HF ANT291047LED2.3696700205
AXYL GLOW L U/D 10L927 WB HF BK291047LED2.3696700203
AXYL GLOW L U/D 10L927 WB HF WH291047LED2.3696700202
AXYL GLOW L U/D 10L927 WB RD ANT291047LED2.3696701321
AXYL GLOW L U/D 10L927 WB RD BK291047LED2.3696701319
AXYL GLOW L U/D 10L927 WB RD WH291047LED2.3696701318
AXYL GLOW L U/D 10L930 WB HF ANT291103LED2.3696700213
AXYL GLOW L U/D 10L930 WB HF BK291103LED2.3696700211
AXYL GLOW L U/D 10L930 WB HF GY291103LED2.3696700212
AXYL GLOW L U/D 10L930 WB HF WH291103LED2.3696700210
AXYL GLOW L U/D 10L930 WB RD ANT291103LED2.3696701329
AXYL GLOW L U/D 10L930 WB RD BK291103LED2.3696701327
AXYL GLOW L U/D 10L930 WB RD GY291103LED2.3696701328
AXYL GLOW L U/D 10L930 WB RD WH291103LED2.3696701326
AXYL GLOW L U/D 10L940 WB HF ANT291191LED2.3596700209
AXYL GLOW L U/D 10L940 WB HF BK291191LED2.3596700207
AXYL GLOW L U/D 10L940 WB HF GY291191LED2.3596700208
AXYL GLOW L U/D 10L940 WB HF WH291191LED2.3596700206
AXYL GLOW L U/D 10L940 WB RD ANT291191LED2.3596701325
AXYL GLOW L U/D 10L940 WB RD BK291191LED2.3596701323
AXYL GLOW L U/D 10L940 WB RD GY291191LED2.3596701324
AXYL GLOW L U/D 10L940 WB RD WH291191LED2.3596701322
