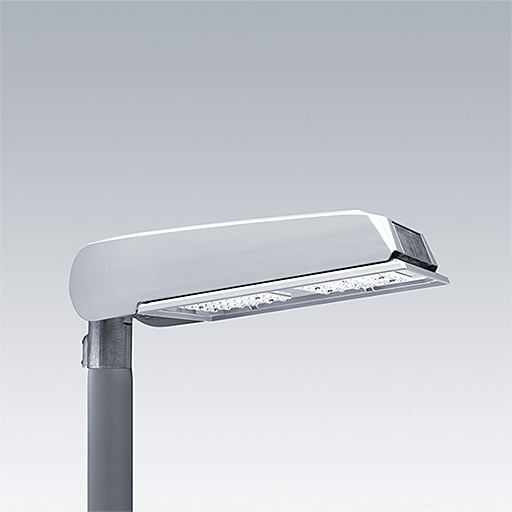

CiviTEQ
Kostnadseffektiv belysningslösning med LED för renovering på vägar
- Erbjuder den bästa balansen mellan ägarkostnad och prestanda. Monterad med R-PEC®-optik för säker och effektiv belysning i
bostadsområden och längs väl trafikerade gator - Tillgänglig i 2 storlekar upp till 19 klm, 12 precisionsmässiga ljusdistributioner och flera olika installationsmöjligheter – CiviTEQ kan anpassas till valfri installationslayout
- Omfattande utbud av styrdon, med omkopplare för dubbla ljuskällor som aktiverar eller avaktiverar anläggningens ljusreglering
- Kompakt och lätt armatur för enkel hantering och installation med låg projicerad vindyta
Utförande
Classic-version eller GY-S: Armaturhus: pressgjutet aluminium (EN AC-44300), ljusgrå sandtextur 150 (liknar RAL9006) och fäste i omålat pressgjutet aluminium
ANT-version: Armaturhus och fäste: pressgjutet aluminium (EN AC-44300), antracitgrå texturfärg (liknar RAL7043) med vit mask. Standardkorrosivitetsklass C5 enligt ISO 9223:2012.
Andra RAL-färger på begäran.
Glas: 4 mm tjockt
Skruvar: rostfritt stål
Installering och montering
Lämpligt för montering ovanpå Ø76 mm eller Ø60 mm (genom beställning av rätt adapterversion)
Lämpligt för montering på sidan Ø60 mm eller Ø42 mm (genom beställning av rätt adapterversion)
Variabel lutningsinställning: 0° till +10° ovanpå stolpen och -20° till 0° montering på utliggare, i steg om 5°.
Lutningsadapter 0° med fäste som lutas -45° som tillbehör.
Kabelförskruvning för Ø8 till 12 mm-kabel. Levereras installationsklar och komplett med fabriksmonterat driftdonshus i en enda förpackning.
New Product
LumExpress Product
eControl Product
▼ CiviTEQ-tillbehör
| Beskrivning | Vikt (kg) | SAP nummer | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CQ ADAPTOR MLE -45° | 0.20 | 96643222 | |||||||
| CQ L LOUVRES FRONT & BACK | 3.00 | 96628087 | |||||||
| CQ M42 EXTERNAL SPIGOT | 0.48 | 59008134 | |||||||
| CQ M60 EXTERNAL SPIGOT | 0.65 | 59008133 | |||||||
| CQ M76 EXTERNAL SPIGOT | 0.65 | 59008132 | |||||||
| CQ S LOUVRES FRONT & BACK | 2.40 | 96643221 |
▼ CiviTEQ Small, Narrow road optic, white/anthracite
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 12L35-740 NR BPS CL2 M60 ANT | 15 | 2115 | LED | 6.20 | 96665591 | ||||
| CQ 12L50-740 NR BPS CL2 M60 ANT | 20 | 2916 | LED | 6.20 | 96665596 | ||||
| CQ 12L70-740 NR BPS CL2 M60 ANT | 28 | 3920 | LED | 6.20 | 96665602 | ||||
| CQ 24L35-740 NR BPS CL2 M60 ANT | 27 | 4213 | LED | 6.30 | 96665608 | ||||
| CQ 24L50-740 NR BPS CL2 M60 ANT | 38 | 5784 | LED | 6.30 | 96665614 | ||||
| CQ 24L70-740 NR BPS CL2 M60 ANT | 52 | 7725 | LED | 6.30 | 96665620 | ||||
| CQ 36L35-740 NR BPS CL2 M60 ANT | 39 | 6290 | LED | 6.40 | 96665626 | ||||
| CQ 36L50-740 NR BPS CL2 M60 ANT | 55 | 8607 | LED | 6.40 | 96665632 | ||||
| CQ 36L70-740 NR LRT CL2 M60 ANT | 77 | 11421 | LED | 6.40 | 96665638 |
▼ CiviTEQ Large, Narrow road optic, white/anthracite
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 48L35-740 NR BPS CL2 M60 ANT | 50 | 8426 | LED | 8.52 | 96665645 | ||||
| CQ 48L50-740 NR BPS CL2 M60 ANT | 72 | 11568 | LED | 9.21 | 96665651 | ||||
| CQ 48L70-740 NR BPS CL2 M60 ANT | 101 | 15458 | LED | 9.28 | 96665655 | ||||
| CQ 60L35-740 NR BPS CL2 M60 ANT | 62 | 10492 | LED | 9.26 | 96665661 | ||||
| CQ 60L50-740 NR BPS CL2 M60 ANT | 89 | 14361 | LED | 9.26 | 96665667 | ||||
| CQ 60L70-740 NR BPS CL2 M60 ANT | 125 | 19086 | LED | 10.03 | 96665673 | ||||
| CQ 72L35-740 NR BPS CL2 M60 ANT | 75 | 12535 | LED | 10.01 | 96665679 | ||||
| CQ 72L50-740 NR BPS CL2 M60 ANT | 106 | 17099 | LED | 10.01 | 96665685 | ||||
| CQ 72L70-740 NR BPS CL2 M60 ANT | 149 | 22577 | LED | 10.01 | 96665691 |
▼ CiviTEQ liten och smal gatuoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | E-nummer | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| CQ 12L105-740 NR BPS CL2 M60 GY-S | 41 | 5487 | LED | 5.70 | 96627876 | |||||
| CQ 12L35-740 NR BPS CL2 M60 GY-S | 15 | 2115 | E7733724 | LED | 5.70 | 96627873 | ||||
| CQ 12L50-740 NR BPS CL2 M60 GY-S | 20 | 2916 | E7733725 | LED | 5.70 | 96627874 | ||||
| CQ 12L70-740 NR BPS CL2 M60 GY-S | 28 | 3920 | E7733726 | LED | 5.70 | 96627875 | ||||
| CQ 24L105-740 NR BPS CL2 M60 GY-S | 79 | 10672 | E7733727 | LED | 5.70 | 96627880 | ||||
| CQ 24L35-740 NR BPS CL2 M60 GY-S | 27 | 4213 | E7733728 | LED | 5.70 | 96627877 | ||||
| CQ 24L50-740 NR BPS CL2 M60 GY-S | 38 | 5784 | E7733729 | LED | 5.70 | 96627878 | ||||
| CQ 24L70-730 NR BPS CL2 M60 GY-S | 52 | 7063 | LED | 5.60 | 96628311 | |||||
| CQ 24L70-740 NR BPS CL2 M60 GY-S | 52 | 7725 | E7733730 | LED | 5.70 | 96627879 | ||||
| CQ 36L35-740 NR BPS CL2 M60 GY-S | 39 | 6290 | E7733731 | LED | 5.70 | 96627881 | ||||
| CQ 36L50-740 NR BPS CL2 M60 GY-S | 55 | 8607 | E7733732 | LED | 5.70 | 96627882 | ||||
| CQ 36L70-740 NR BPS CL2 M60 GY-S | 77 | 11421 | E7733733 | LED | 5.70 | 96627556 |
▼ CiviTEQ liten och smal gatuoptik, konfigurerade produkter
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | E-nummer | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| <CQ 12L70-740 NR BPS CL2 W8 T60F | 28 | 3920 | E7727745 | LED | 5.70 | 92900504 | ||||
| <CQ 24L50-740 NR BPS CL2 W8 T60F | 38 | 5784 | E7727744 | LED | 7.54 | 92900503 | ||||
| CQ 12L50-740 NR BPS CL2 W8 T60F GY-S | 20 | 2916 | E7727742 | LED | 5.70 | 92900501 | ||||
| CQ 24L70-740 NR BPS CL2 T60F W10 GY-S | 52 | 7725 | E7727767 | LED | 5.60 | 96628279 | ||||
| CQ 36L70-740 NR BPS CL2 W10 T60F GY-S | 77 | 11421 | LED | 5.70 | 96643337 |
▼ CiviTEQ Small, optik för breda gator
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 12L35-740 WS BPS CL2 M60 GY-S | 15 | 2099 | LED | 5.70 | 96643021 | ||||
| CQ 12L50-740 WS BPS CL2 M60 GY-S | 20 | 2893 | LED | 5.70 | 96643022 | ||||
| CQ 12L70-740 WS BPS CL2 M60 GY-S | 28 | 3889 | LED | 5.70 | 96643023 | ||||
| CQ 24L35-730 WS BPS CL2 M60 GY-S | 27 | 3822 | LED | 5.50 | 96628318 | ||||
| CQ 24L35-740 WS BPS CL2 M60 GY-S | 27 | 4181 | LED | 5.70 | 96643024 | ||||
| CQ 24L50-740 WS BPS CL2 M60 GY-S | 38 | 5739 | LED | 5.70 | 96643025 | ||||
| CQ 24L70-740 WS BPS CL2 M60 GY-S | 52 | 7665 | LED | 5.70 | 96643026 | ||||
| CQ 36L35-740 WS BPS CL2 M60 GY-S | 39 | 6241 | LED | 5.70 | 96643027 | ||||
| CQ 36L70-740 WS BPS CL2 M60 GY-S | 77 | 11332 | LED | 5.70 | 96643029 |
▼ CiviTEQ Small, Comfort-optik för breda vägar
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 12L35-740 WSC BPS CL2 M60 GY-S | 15 | 2092 | LED | 5.70 | 96643057 | ||||
| CQ 12L50-740 WSC BPS CL2 M60 GY-S | 20 | 2884 | LED | 5.70 | 96643058 | ||||
| CQ 12L70-740 WSC BPS CL2 M60 GY-S | 28 | 3876 | LED | 5.70 | 96643059 | ||||
| CQ 24L35-740 WSC BPS CL2 M60 GY-S | 27 | 4167 | LED | 5.70 | 96643060 | ||||
| CQ 24L50-740 WSC BPS CL2 M60 GY-S | 38 | 5720 | LED | 5.70 | 96643061 | ||||
| CQ 24L70-740 WSC BPS CL2 M60 GY-S | 52 | 7639 | LED | 5.70 | 96643062 | ||||
| CQ 36L35-740 WSC BPS CL2 M60 GY-S | 39 | 6220 | LED | 5.70 | 96643063 | ||||
| CQ 36L50-740 WSC BPS CL2 M60 GY-S | 55 | 8512 | LED | 5.70 | 96643064 | ||||
| CQ 36L70-740 WSC BPS CL2 M60 GY-S | 77 | 11294 | LED | 5.70 | 96643065 |
▼ CiviTEQ Small, optik för våta vägar
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 12L35-740 RWT BPS CL2 M60 GY-S | 15 | 2153 | LED | 5.70 | 96643075 | ||||
| CQ 12L50-740 RWT BPS CL2 M60 GY-S | 20 | 2967 | LED | 5.70 | 96643076 | ||||
| CQ 12L70-740 RWT BPS CL2 M60 GY-S | 28 | 3989 | LED | 5.70 | 96643077 | ||||
| CQ 24L35-740 RWT BPS CL2 M60 GY-S | 27 | 4288 | LED | 5.70 | 96643078 | ||||
| CQ 24L50-740 RWT BPS CL2 M60 GY-S | 38 | 5886 | LED | 5.70 | 96643079 | ||||
| CQ 24L70-740 RWT BPS CL2 M60 GY-S | 52 | 7862 | LED | 5.70 | 96643080 | ||||
| CQ 36L35-740 RWT BPS CL2 M60 GY-S | 39 | 6401 | LED | 5.70 | 96643081 | ||||
| CQ 36L50-740 RWT BPS CL2 M60 GY-S | 55 | 8760 | LED | 5.70 | 96643082 | ||||
| CQ 36L70-740 RWT BPS CL2 M60 GY-S | 77 | 11623 | LED | 5.70 | 96643083 |
▼ CiviTEQ Small, Comfort-vägoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 12L35-740 RC BPS CL2 M60 GY-S | 15 | 2139 | LED | 5.70 | 96643093 | ||||
| CQ 12L70-740 RC BPS CL2 M60 GY-S | 28 | 3963 | LED | 5.70 | 96643095 | ||||
| CQ 24L35-740 RC BPS CL2 M60 GY-S | 27 | 4260 | LED | 5.70 | 96643096 | ||||
| CQ 24L50-740 RC BPS CL2 M60 GY-S | 38 | 5848 | LED | 5.70 | 96643097 | ||||
| CQ 36L35-740 RC BPS CL2 M60 GY-S | 39 | 6359 | LED | 5.70 | 96643099 | ||||
| CQ 36L70-740 RC BPS CL2 M60 GY-S | 77 | 11547 | LED | 5.70 | 96643101 |
▼ CiviTEQ Small, optik för breda vägar
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 12L35-740 WR BPS CL2 M60 GY-S | 15 | 2139 | LED | 5.70 | 96643111 | ||||
| CQ 12L50-740 WR BPS CL2 M60 GY-S | 20 | 2948 | LED | 5.70 | 96643112 | ||||
| CQ 12L70-740 WR BPS CL2 M60 GY-S | 28 | 3963 | LED | 5.70 | 96643113 | ||||
| CQ 24L35-740 WR BPS CL2 M60 GY-S | 27 | 4260 | LED | 5.70 | 96643114 | ||||
| CQ 24L50-740 WR BPS CL2 M60 GY-S | 38 | 5848 | LED | 5.70 | 96643115 | ||||
| CQ 36L35-730 WR BPS CL2 M60 GY-S | 39 | 5814 | LED | 5.60 | 96628568 | ||||
| CQ 36L35-740 WR BPS CL2 M60 GY-S | 39 | 6359 | LED | 5.70 | 96643117 | ||||
| CQ 36L50-740 WR BPS CL2 M60 GY-S | 55 | 8703 | LED | 5.70 | 96643118 | ||||
| CQ 36L70-740 WR BPS CL2 M60 GY-S | 77 | 11547 | LED | 5.70 | 96643119 |
▼ CiviTEQ Small, extra bred gatuoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 12L35-740 EWS BPS CL2 M60 GY-S | 15 | 2052 | LED | 5.70 | 96643129 | ||||
| CQ 12L50-740 EWS BPS CL2 M60 GY-S | 20 | 2829 | LED | 5.70 | 96643130 | ||||
| CQ 12L70-730 EWS BPS CL2 M60 GY-S | 28 | 3477 | LED | 5.50 | 96628556 | ||||
| CQ 12L70-740 EWS BPS CL2 M60 GY-S | 28 | 3802 | LED | 5.70 | 96643131 | ||||
| CQ 24L35-740 EWS BPS CL2 M60 GY-S | 27 | 4087 | LED | 5.70 | 96643132 | ||||
| CQ 24L50-740 EWS BPS CL2 M60 GY-S | 38 | 5611 | LED | 5.70 | 96643133 | ||||
| CQ 24L70-740 EWS BPS CL2 M60 GY-S | 52 | 7494 | LED | 5.70 | 96643134 | ||||
| CQ 36L35-740 EWS BPS CL2 M60 GY-S | 39 | 6102 | LED | 5.70 | 96643135 | ||||
| CQ 36L50-740 EWS BPS CL2 M60 GY-S | 55 | 8350 | LED | 5.70 | 96643136 | ||||
| CQ 36L70-740 EWS BPS CL2 M60 GY-S | 77 | 11079 | LED | 5.70 | 96643137 |
▼ CiviTEQ Small, optik för övergångsställen
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 36L50-740 IVS CL2 M60 GY-S | 55 | 8426 | LED | 5.70 | 96643154 | ||||
| CQ 36L70-740 IVS CL2 M60 GY-S | 77 | 11181 | LED | 5.70 | 96643155 |
▼ CiviTEQ Small, optik för övergångsställen, konfigurerade produkter
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 36L70-757 IVS CL2 M60 GY-S | 77 | 9310 | LED | 5.70 | 96643227 |
▼ CiviTEQ Small, Comfort-gatuoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 12L35-740 SC BPS CL2 M60 GY-S | 15 | 2132 | LED | 5.70 | 96643165 | ||||
| CQ 12L50-740 SC BPS CL2 M60 GY-S | 20 | 2938 | LED | 5.70 | 96643166 | ||||
| CQ 12L70-740 SC BPS CL2 M60 GY-S | 28 | 3950 | LED | 5.70 | 96643167 | ||||
| CQ 24L35-740 SC BPS CL2 M60 GY-S | 27 | 4246 | LED | 5.70 | 96643168 | ||||
| CQ 24L50-740 SC BPS CL2 M60 GY-S | 38 | 5829 | LED | 5.70 | 96643169 | ||||
| CQ 24L70-740 SC BPS CL2 M60 GY-S | 52 | 7785 | LED | 5.70 | 96643170 | ||||
| CQ 36L35-740 SC BPS CL2 M60 GY-S | 39 | 6338 | LED | 5.70 | 96643171 | ||||
| CQ 36L50-740 SC BPS CL2 M60 GY-S | 55 | 8674 | LED | 5.70 | 96643172 | ||||
| CQ 36L70-740 SC BPS CL2 M60 GY-S | 77 | 11509 | LED | 5.70 | 96643173 |
▼ CiviTEQ Small, extra bredstrålande Comfort-vägoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 12L35-740 EWC BPS CL2 M60 GY-S | 15 | 2061 | LED | 5.70 | 96643183 | ||||
| CQ 12L50-740 EWC BPS CL2 M60 GY-S | 20 | 2842 | LED | 5.70 | 96643184 | ||||
| CQ 12L70-740 EWC BPS CL2 M60 GY-S | 28 | 3820 | LED | 5.70 | 96643185 | ||||
| CQ 24L35-730 EWC BPS CL2 M60 GY-S | 27 | 3754 | LED | 5.60 | 96628567 | ||||
| CQ 24L35-740 EWC BPS CL2 M60 GY-S | 27 | 4106 | LED | 5.70 | 96643186 | ||||
| CQ 24L50-740 EWC BPS CL2 M60 GY-S | 38 | 5637 | LED | 5.70 | 96643187 | ||||
| CQ 24L70-740 EWC BPS CL2 M60 GY-S | 52 | 7528 | LED | 5.70 | 96643188 | ||||
| CQ 36L35-740 EWC BPS CL2 M60 GY-S | 39 | 6130 | LED | 5.70 | 96643189 | ||||
| CQ 36L50-740 EWC BPS CL2 M60 GY-S | 55 | 8388 | LED | 5.70 | 96643190 | ||||
| CQ 36L70-740 EWC BPS CL2 M60 GY-S | 77 | 11130 | LED | 5.70 | 96643191 |
▼ CiviTEQ Small, extra bredstrålande vägoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 12L35-740 EWR BPS CL2 M60 GY-S | 15 | 2073 | LED | 5.70 | 96643201 | ||||
| CQ 12L50-740 EWR BPS CL2 M60 GY-S | 20 | 2858 | LED | 5.70 | 96643202 | ||||
| CQ 24L35-740 EWR BPS CL2 M60 GY-S | 27 | 4129 | LED | 5.70 | 96643204 | ||||
| CQ 24L50-740 EWR BPS CL2 M60 GY-S | 38 | 5669 | LED | 5.70 | 96643205 | ||||
| CQ 24L70-740 EWR BPS CL2 M60 GY-S | 52 | 7571 | LED | 5.70 | 96643206 | ||||
| CQ 36L35-740 EWR BPS CL2 M60 GY-S | 39 | 6164 | LED | 5.70 | 96643207 | ||||
| CQ 36L50-740 EWR BPS CL2 M60 GY-S | 55 | 8436 | LED | 5.70 | 96643208 | ||||
| CQ 36L70-740 EWR BPS CL2 M60 GY-S | 77 | 11193 | LED | 5.70 | 96643209 |
▼ CiviTEQ Large, smalstrålande vägoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 48L35-740 NR BPS CL2 M60 GY-S | 50 | 8426 | LED | 9.60 | 96627884 | ||||
| CQ 48L50-740 NR BPS CL2 M60 GY-S | 72 | 11568 | LED | 9.60 | 96627885 | ||||
| CQ 48L70-740 NR BPS CL2 M60 GY-S | 101 | 15458 | LED | 9.60 | 96627886 | ||||
| CQ 60L35-740 NR BPS CL2 M60 GY-S | 62 | 10492 | LED | 9.60 | 96627887 | ||||
| CQ 60L50-740 NR BPS CL2 M60 GY-S | 89 | 14361 | LED | 9.60 | 96627888 | ||||
| CQ 60L70-740 NR BPS CL2 M60 GY-S | 125 | 19086 | LED | 9.60 | 96627889 | ||||
| CQ 72L35-740 NR BPS CL2 M60 GY-S | 75 | 12535 | LED | 9.60 | 96627890 | ||||
| CQ 72L50-730 NR BPS CL2 M60 GY-S | 106 | 15634 | LED | 9.30 | 96628403 | ||||
| CQ 72L50-740 NR BPS CL2 M60 GY-S | 106 | 17099 | LED | 9.60 | 96627891 | ||||
| CQ 72L70-740 NR BPS CL2 M60 GY-S | 149 | 22577 | LED | 9.60 | 96627892 |
▼ CiviTEQ Large, bredstrålande gatuoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 48L35-740 WS BPS CL2 M60 GY-S | 50 | 8361 | LED | 9.60 | 96643030 | ||||
| CQ 48L50-740 WS BPS CL2 M60 GY-S | 72 | 11478 | LED | 9.60 | 96643031 | ||||
| CQ 48L70-740 WS BPS CL2 M60 GY-S | 101 | 15339 | LED | 9.60 | 96643032 | ||||
| CQ 60L35-740 WS BPS CL2 M60 GY-S | 62 | 10410 | LED | 9.60 | 96643033 | ||||
| CQ 60L50-730 WS BPS CL2 M60 GY-S | 89 | 13028 | LED | 8.55 | 96628570 | ||||
| CQ 60L50-740 WS BPS CL2 M60 GY-S | 89 | 14250 | LED | 9.60 | 96643034 | ||||
| CQ 60L70-740 WS BPS CL2 M60 GY-S | 125 | 18938 | LED | 9.60 | 96643035 | ||||
| CQ 72L35-740 WS BPS CL2 M60 GY-S | 75 | 12438 | LED | 9.60 | 96643036 | ||||
| CQ 72L50-730 WS BPS CL2 M60 GY-S | 106 | 15513 | LED | 9.30 | 96628346 | ||||
| CQ 72L50-740 WS BPS CL2 M60 GY-S | 106 | 16967 | LED | 9.60 | 96643037 | ||||
| CQ 72L70-740 WS BPS CL2 M60 GY-S | 149 | 22402 | LED | 9.60 | 96643038 |
▼ CiviTEQ Large, bredstrålande Comfort-gatuoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 48L35-740 WSC BPS CL2 M60 GY-S | 50 | 8333 | LED | 9.60 | 96643066 | ||||
| CQ 48L50-740 WSC BPS CL2 M60 GY-S | 72 | 11440 | LED | 9.60 | 96643067 | ||||
| CQ 48L70-740 WSC BPS CL2 M60 GY-S | 101 | 15287 | LED | 9.60 | 96643068 | ||||
| CQ 60L35-740 WSC BPS CL2 M60 GY-S | 62 | 10376 | LED | 9.60 | 96643069 | ||||
| CQ 60L50-740 WSC BPS CL2 M60 GY-S | 89 | 14202 | LED | 9.60 | 96643070 | ||||
| CQ 60L70-740 WSC BPS CL2 M60 GY-S | 125 | 18875 | LED | 9.60 | 96643071 | ||||
| CQ 72L35-740 WSC BPS CL2 M60 GY-S | 75 | 12396 | LED | 9.60 | 96643072 | ||||
| CQ 72L50-730 WSC BPS CL2 M60. GY-S | 106 | 15461 | LED | 9.30 | 96628453 | ||||
| CQ 72L50-740 WSC BPS CL2 M60 GY-S | 106 | 16910 | LED | 9.60 | 96643073 | ||||
| CQ 72L70-740 WSC BPS CL2 M60 GY-S | 149 | 22327 | LED | 9.60 | 96643074 |
▼ CiviTEQ Large, optik för våta vägar
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 48L35-740 RWT BPS CL2 M60 GY-S | 50 | 8575 | LED | 9.60 | 96643084 | ||||
| CQ 48L50-740 RWT BPS CL2 M60 GY-S | 72 | 11772 | LED | 9.60 | 96643085 | ||||
| CQ 48L70-740 RWT BPS CL2 M60 GY-S | 101 | 15732 | LED | 9.60 | 96643086 | ||||
| CQ 60L35-740 RWT BPS CL2 M60 GY-S | 62 | 10677 | LED | 9.60 | 96643087 | ||||
| CQ 60L50-740 RWT BPS CL2 M60 GY-S | 89 | 14615 | LED | 9.60 | 96643088 | ||||
| CQ 60L70-740 RWT BPS CL2 M60 GY-S | 125 | 19424 | LED | 9.60 | 96643089 | ||||
| CQ 72L35-740 RWT BPS CL2 M60 GY-S | 75 | 12757 | LED | 9.60 | 96643090 | ||||
| CQ 72L50-740 RWT BPS CL2 M60 GY-S | 106 | 17402 | LED | 9.60 | 96643091 | ||||
| CQ 72L70-740 RWT BPS CL2 M60 GY-S | 149 | 22977 | LED | 9.60 | 96643092 |
▼ CiviTEQ Large, Comfort-vägoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 48L35-740 RC BPS CL2 M60 GY-S | 50 | 8519 | LED | 9.60 | 96643102 | ||||
| CQ 48L50-740 RC BPS CL2 M60 GY-S | 72 | 11696 | LED | 9.60 | 96643103 | ||||
| CQ 48L70-740 RC BPS CL2 M60 GY-S | 101 | 15629 | LED | 9.60 | 96643104 | ||||
| CQ 60L35-740 RC BPS CL2 M60 GY-S | 62 | 10608 | LED | 9.60 | 96643105 | ||||
| CQ 60L50-740 RC BPS CL2 M60 GY-S | 89 | 14520 | LED | 9.60 | 96643106 | ||||
| CQ 60L70-740 RC BPS CL2 M60 GY-S | 125 | 19297 | LED | 9.60 | 96643107 | ||||
| CQ 72L35-740 RC BPS CL2 M60 GY-S | 75 | 12674 | LED | 9.60 | 96643108 | ||||
| CQ 72L50-740 RC BPS CL2 M60 GY-S | 106 | 17289 | LED | 9.60 | 96643109 | ||||
| CQ 72L70-740 RC BPS CL2 M60 GY-S | 149 | 22827 | LED | 9.60 | 96643110 |
▼ CiviTEQ Large, bredstrålande vägoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 48L35-740 WR BPS CL2 M60 GY-S | 50 | 8519 | LED | 9.60 | 96643120 | ||||
| CQ 48L50-740 WR BPS CL2 M60 GY-S | 72 | 11696 | LED | 9.60 | 96643121 | ||||
| CQ 48L70-740 WR BPS CL2 M60 GY-S | 101 | 15629 | LED | 9.60 | 96643122 | ||||
| CQ 60L35-740 WR BPS CL2 M60 GY-S | 62 | 10608 | LED | 9.60 | 96643123 | ||||
| CQ 60L50-740 WR BPS CL2 M60 GY-S | 89 | 14520 | LED | 9.60 | 96643124 | ||||
| CQ 60L70-740 WR BPS CL2 M60 GY-S | 125 | 19297 | LED | 9.60 | 96643125 | ||||
| CQ 72L35-740 WR BPS CL2 M60 GY-S | 75 | 12674 | LED | 9.60 | 96643126 | ||||
| CQ 72L50-740 WR BPS CL2 M60 GY-S | 106 | 17289 | LED | 9.60 | 96643127 | ||||
| CQ 72L70-740 WR BPS CL2 M60 GY-S | 149 | 22827 | LED | 9.60 | 96643128 |
▼ CiviTEQ Large, optik för övergångsställen
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 48L35-740 IVS CL2 M60 GY-S | 50 | 8249 | LED | 9.60 | 96643156 | ||||
| CQ 48L70-740 IVS CL2 M60 GY-S | 101 | 15134 | LED | 9.60 | 96643158 | ||||
| CQ 60L70-740 IVS CL2 M60 GY-S | 125 | 18685 | LED | 9.60 | 96643161 | ||||
| CQ 72L70-740 IVS CL2 M60 GY-S | 149 | 22103 | LED | 9.60 | 96643164 |
▼ CiviTEQ Large, optik för övergångsställen, konfigurerade produkter
| Beskrivning | Vikt (kg) | SAP nummer | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 48L70-757 IVS CL2 M60 GY-S | 9.20 | 96643228 | |||||||
| CQ 60L70-757 IVS CL2 M60 GY-S | 9.24 | 96643229 | |||||||
| CQ 72L70-757 IVS CL2 M60 GY-S | 9.30 | 96643230 |
▼ CiviTEQ Large, Comfort-gatuoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 48L35-740 SC BPS CL2 M60 GY-S | 50 | 8492 | LED | 9.60 | 96643174 | ||||
| CQ 48L50-740 SC BPS CL2 M60 GY-S | 72 | 11657 | LED | 9.60 | 96643175 | ||||
| CQ 48L70-740 SC BPS CL2 M60 GY-S | 101 | 15578 | LED | 9.60 | 96643176 | ||||
| CQ 60L35-740 SC BPS CL2 M60 GY-S | 62 | 10573 | LED | 9.60 | 96643177 | ||||
| CQ 60L50-740 SC BPS CL2 M60 GY-S | 89 | 14472 | LED | 9.60 | 96643178 | ||||
| CQ 60L70-740 SC BPS CL2 M60 GY-S | 125 | 19234 | LED | 9.60 | 96643179 | ||||
| CQ 72L35-740 SC BPS CL2 M60 GY-S | 75 | 12632 | LED | 9.60 | 96643180 | ||||
| CQ 72L50-740 SC BPS CL2 M60 GY-S | 106 | 17232 | LED | 9.60 | 96643181 | ||||
| CQ 72L70-740 SC BPS CL2 M60 GY-S | 149 | 22752 | LED | 9.60 | 96643182 |
▼ CiviTEQ Large, extra bredstrålande Comfort-gatuoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 48L35-740 EWC BPS CL2 M60 GY-S | 50 | 8212 | LED | 9.60 | 96643192 | ||||
| CQ 48L50-740 EWC BPS CL2 M60 GY-S | 72 | 11273 | LED | 9.60 | 96643193 | ||||
| CQ 48L70-740 EWC BPS CL2 M60 GY-S | 101 | 15065 | LED | 9.60 | 96643194 | ||||
| CQ 60L35-740 EWC BPS CL2 M60 GY-S | 62 | 10225 | LED | 9.60 | 96643195 | ||||
| CQ 60L50-740 EWC BPS CL2 M60 GY-S | 89 | 13995 | LED | 9.60 | 96643196 | ||||
| CQ 60L70-740 EWC BPS CL2 M60 GY-S | 125 | 18600 | LED | 9.60 | 96643197 | ||||
| CQ 72L35-740 EWC BPS CL2 M60 GY-S | 75 | 12216 | LED | 9.60 | 96643198 | ||||
| CQ 72L50-740 EWC BPS CL2 M60 GY-S | 106 | 16664 | LED | 9.60 | 96643199 | ||||
| CQ 72L70-740 EWC BPS CL2 M60 GY-S | 149 | 22003 | LED | 9.60 | 96643200 |
▼ CiviTEQ Large, extra bredstrålande gatuoptik
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 48L35-740 EWR BPS CL2 M60 GY-S | 50 | 8258 | LED | 9.60 | 96643210 | ||||
| CQ 48L50-740 EWR BPS CL2 M60 GY-S | 72 | 11337 | LED | 9.60 | 96643211 | ||||
| CQ 48L70-740 EWR BPS CL2 M60 GY-S | 101 | 15151 | LED | 9.60 | 96643212 | ||||
| CQ 60L35-740 EWR BPS CL2 M60 GY-S | 62 | 10283 | LED | 9.60 | 96643213 | ||||
| CQ 60L50-740 EWR BPS CL2 M60 GY-S | 89 | 14075 | LED | 9.60 | 96643214 | ||||
| CQ 60L70-740 EWR BPS CL2 M60 GY-S | 125 | 18706 | LED | 9.60 | 96643215 | ||||
| CQ 72L35-740 EWR BPS CL2 M60 GY-S | 75 | 12285 | LED | 9.60 | 96643216 | ||||
| CQ 72L50-740 EWR BPS CL2 M60 GY-S | 106 | 16759 | LED | 9.60 | 96643217 | ||||
| CQ 72L70-740 EWR BPS CL2 M60 GY-S | 149 | 22128 | LED | 9.60 | 96643218 |
▼ CiviTEQ Small, extra bred vägoptik, vitt/antracit
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CQ 36L35-740 EWR BPS CL2 M60 ANT | 39 | 6164 | LED | 5.70 | 96629458 |
