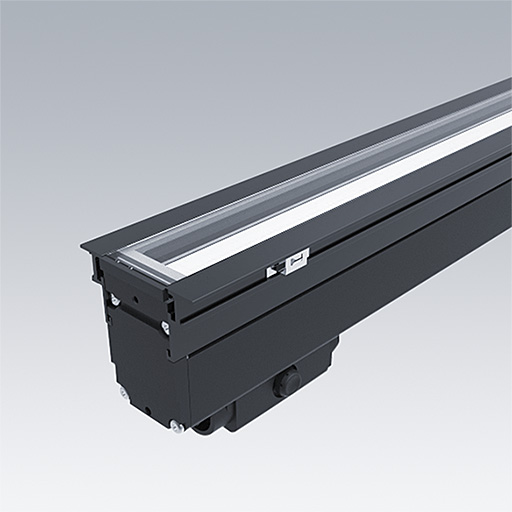

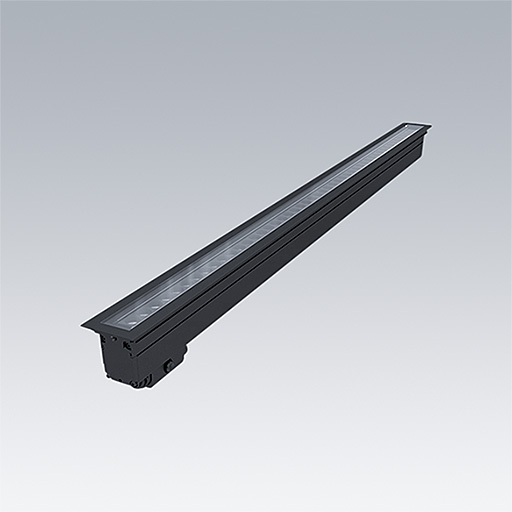

Eroa LRI

EROA LRI is a linear recessed integral driver product designed to create scenes on façade, bridges and monuments

Finns i fyra längder med ett urval singelfärger: 2700K, 3000K, 4000K och dynamisk RGBW. Extra Bright version finns med högre lumenpaket.
Utformad för ren och diskret infälld installation vilket ger sömlös integration i fasader, broar och arkitektoniska strukturer.
Precision-engineered optics delivers continuous and uniform illumination across lengths exceeding 12 metres, ensuring smooth light lines without dark zones or visible transitions.
Tillbehör som intern optisk film ger hög visuell komfort genom att kontrollera ljusspill och minska bländningen vid källan.
Integrerat driftdon och överkoppling förenklar installationen, vilket ger snabbare genomförande av driftstart samtidigt som det minimerar behovet av ytterligare externa komponenter eller komplexa kopplingsscheman.
Markhylsa beställs separat. Flera längder möjliggör fristående eller kontinuerlig montering.

Utförande

Suitable for C5 (standard corrosion class according to ISO 9223 : 2012) without additional coating
Body: extruded aluminium (6063) and end cap in machined aluminium
Enclosure: 6mm toughened glass
Ground Sleeve : black PVC
External screws: A2 with zinc coating treatment
Finish: BK - Anodised Black close to RAL9005 ; SI : Anodised Silver close to RAL9022

Installering och montering

Recessed mounting with:
Ground sleeve (to be ordered separately)
Sleeve end cap (to be ordered separately) - 1 kit per standalone product or 1 kit per continuous line
Flange end cap (to be ordered separately) - 1 kit per standalone product or 1 kit per continuous line
For secured installation : secured end cap if necessary (to be ordered separately) with secured joigning kit (to be ordered separately)

Starter Kit to be ordered separately to power luminaires
Link Lead to be ordered separately to connect luminaires together

More details on How To Spec Guide

▼ Eroa LRI, L03 Extra Bright

Beskrivning	Armatureffekt (W)	Armaturljusflöde (lm)	Type	Vikt (kg)	SAP nummer
ER LRI L03 1200-830 M ABK 0 67 HF ecoCALC DIALux RELUX	18	1330	LED	1.80	21040224
ER LRI L03 1200-830 M ABK 0 67 HFX ecoCALC DIALux RELUX	18	1330	LED	1.80	21040225
ER LRI L03 1200-830 M ABK 5 67 HF ecoCALC DIALux RELUX	18	1440	LED	1.80	21040227
ER LRI L03 1200-830 M ABK 5 67 HFX ecoCALC DIALux RELUX	18	1440	LED	1.80	21040228
ER LRI L03 1200-830 N ABK 0 67 HF ecoCALC DIALux RELUX	18	1440	LED	1.80	21040284
ER LRI L03 1200-830 N ABK 0 67 HFX ecoCALC DIALux RELUX	18	1440	LED	1.80	21040285
ER LRI L03 1200-830 N ABK 5 67 HF ecoCALC DIALux RELUX	18	1450	LED	1.80	21040287
ER LRI L03 1200-830 N ABK 5 67 HFX ecoCALC DIALux RELUX	18	1450	LED	1.80	21040288
ER LRI L03 1200-830 SP ABK 0 67 HF ecoCALC DIALux RELUX	21	2075	LED	2.00	21035963
ER LRI L03 1200-830 SP ABK 0 67 HFX ecoCALC DIALux RELUX	21	2075	LED	2.00	21035964
ER LRI L03 1200-830 SP ABK 5 67 HF ecoCALC DIALux RELUX	21	1979	LED	2.00	21035966
ER LRI L03 1200-830 SP ABK 5 67 HFX ecoCALC DIALux RELUX	21	1979	LED	2.00	21035967
ER LRI L03 1200-830 WF ABK 0 67 HF ecoCALC DIALux RELUX	18	1210	LED	1.80	21040344
ER LRI L03 1200-830 WF ABK 0 67 HFX ecoCALC DIALux RELUX	18	1210	LED	1.80	21040345
ER LRI L03 1200-830 WF ABK 5 67 HF ecoCALC DIALux RELUX	18	1200	LED	1.80	21040347
ER LRI L03 1200-830 WF ABK 5 67 HFX ecoCALC DIALux RELUX	18	1200	LED	1.80	21040348
ER LRI L03 1200-RGBW M ABK 0 67 DMX ecoCALC DIALux RELUX	24	810	LED	1.80	21040583
ER LRI L03 1200-RGBW M ABK 0 67 HFX ecoCALC DIALux RELUX	24	810	LED	1.80	21040584
ER LRI L03 1200-RGBW M ABK 5 67 DMX ecoCALC DIALux RELUX	24	800	LED	1.80	21040585
ER LRI L03 1200-RGBW M ABK 5 67 HFX ecoCALC DIALux RELUX	24	800	LED	1.80	21040586
ER LRI L03 1200-RGBW N ABK 0 67 DMX ecoCALC DIALux RELUX	24	860	LED	1.80	21040619
ER LRI L03 1200-RGBW N ABK 0 67 HFX ecoCALC DIALux RELUX	24	860	LED	1.80	21040620
ER LRI L03 1200-RGBW N ABK 5 67 DMX ecoCALC DIALux RELUX	24	870	LED	1.80	21040621
ER LRI L03 1200-RGBW N ABK 5 67 HFX ecoCALC DIALux RELUX	24	870	LED	1.80	21040622
ER LRI L03 1200-RGBW SP ABK 0 67 DMX ecoCALC DIALux RELUX	21	1036	LED	2.00	21036082
ER LRI L03 1200-RGBW SP ABK 0 67 HFX ecoCALC DIALux RELUX	21	1036	LED	2.00	21036083
ER LRI L03 1200-RGBW SP ABK 5 67 DMX ecoCALC DIALux RELUX	21	987	LED	2.00	21036084
ER LRI L03 1200-RGBW SP ABK 5 67 HFX ecoCALC DIALux RELUX	21	987	LED	2.00	21036085
ER LRI L03 1200-RGBW WF ABK 0 67 DMX ecoCALC DIALux RELUX	24	720	LED	1.80	21040655
ER LRI L03 1200-RGBW WF ABK 0 67 HFX ecoCALC DIALux RELUX	24	720	LED	1.80	21040656
ER LRI L03 1200-RGBW WF ABK 5 67 DMX ecoCALC DIALux RELUX	24	720	LED	1.80	21040657
ER LRI L03 1200-RGBW WF ABK 5 67 HFX ecoCALC DIALux RELUX	24	720	LED	1.80	21040658

▼ Eroa LRI, L03 Standard Bright

Beskrivning	Armatureffekt (W)	Armaturljusflöde (lm)	Type	Vikt (kg)	SAP nummer
ER LRI L03 450-830 M ABK 0 67 HF ecoCALC DIALux RELUX	7	510	LED	1.80	21040751
ER LRI L03 450-830 M ABK 5 67 HF ecoCALC DIALux RELUX	7	500	LED	1.80	21040752
ER LRI L03 450-830 N ABK 0 67 HF ecoCALC DIALux RELUX	7	540	LED	1.80	21040771
ER LRI L03 450-830 N ABK 5 67 HF ecoCALC DIALux RELUX	7	540	LED	1.80	21040772
ER LRI L03 450-830 SP ABK 0 67 HF ecoCALC DIALux RELUX	7	738	LED	2.00	21036142
ER LRI L03 450-830 SP ABK 5 67 HF ecoCALC DIALux RELUX	7	704	LED	2.00	21036143
ER LRI L03 450-830 WF ABK 0 67 HF ecoCALC DIALux RELUX	7	450	LED	1.80	21040791
ER LRI L03 450-830 WF ABK 5 67 HF ecoCALC DIALux RELUX	7	450	LED	1.80	21040792

▼ Eroa LRI, L06 Extra Bright

Beskrivning	Armatureffekt (W)	Armaturljusflöde (lm)	Type	Vikt (kg)	SAP nummer
ER LRI L06 2400-830 M ABK 0 67 HF ecoCALC DIALux RELUX	36	2700	LED	3.38	21043046
ER LRI L06 2400-830 M ABK 0 67 HFX ecoCALC DIALux RELUX	36	2700	LED	3.38	21043047
ER LRI L06 2400-830 M ABK 5 67 HF ecoCALC DIALux RELUX	36	2670	LED	3.38	21043049
ER LRI L06 2400-830 M ABK 5 67 HFX ecoCALC DIALux RELUX	36	2670	LED	3.38	21043050
ER LRI L06 2400-830 N ABK 0 67 HF ecoCALC DIALux RELUX	36	2870	LED	3.38	21043100
ER LRI L06 2400-830 N ABK 0 67 HFX ecoCALC DIALux RELUX	36	2870	LED	3.38	21043101
ER LRI L06 2400-830 N ABK 5 67 HF ecoCALC DIALux RELUX	36	2900	LED	3.38	21043103
ER LRI L06 2400-830 N ABK 5 67 HFX ecoCALC DIALux RELUX	36	2900	LED	3.38	21043104
ER LRI L06 2400-830 SP ABK 0 67 HF ecoCALC DIALux RELUX	41	4153	LED	3.58	21036243
ER LRI L06 2400-830 SP ABK 0 67 HFX ecoCALC DIALux RELUX	41	4153	LED	3.58	21036244
ER LRI L06 2400-830 SP ABK 5 67 HF ecoCALC DIALux RELUX	41	3960	LED	3.58	21036246
ER LRI L06 2400-830 SP ABK 5 67 HFX ecoCALC DIALux RELUX	41	3960	LED	3.58	21036247
ER LRI L06 2400-830 WF ABK 0 67 HF ecoCALC DIALux RELUX	36	2420	LED	3.38	21043147
ER LRI L06 2400-830 WF ABK 0 67 HFX ecoCALC DIALux RELUX	36	2420	LED	3.38	21043148
ER LRI L06 2400-830 WF ABK 5 67 HF ecoCALC DIALux RELUX	36	2410	LED	3.38	21043150
ER LRI L06 2400-830 WF ABK 5 67 HFX ecoCALC DIALux RELUX	36	2410	LED	3.38	21043151
ER LRI L06 2400-RGBW M ABK 0 67 DMX ecoCALC DIALux RELUX	48	1610	LED	3.93	21043366
ER LRI L06 2400-RGBW M ABK 0 67 HFX ecoCALC DIALux RELUX	48	1610	LED	3.93	21043367
ER LRI L06 2400-RGBW M ABK 5 67 DMX ecoCALC DIALux RELUX	48	1590	LED	3.93	21043368
ER LRI L06 2400-RGBW M ABK 5 67 HFX ecoCALC DIALux RELUX	48	1590	LED	3.93	21043369
ER LRI L06 2400-RGBW N ABK 0 67 DMX ecoCALC DIALux RELUX	48	1710	LED	3.93	21043400
ER LRI L06 2400-RGBW N ABK 0 67 HFX ecoCALC DIALux RELUX	48	1710	LED	3.93	21043401
ER LRI L06 2400-RGBW N ABK 5 67 DMX ecoCALC DIALux RELUX	48	1730	LED	3.93	21043402
ER LRI L06 2400-RGBW N ABK 5 67 HFX ecoCALC DIALux RELUX	48	1730	LED	3.93	21043403
ER LRI L06 2400-RGBW SP ABK 0 67 DMX ecoCALC DIALux RELUX	41	2043	LED	4.13	21036362
ER LRI L06 2400-RGBW SP ABK 0 67 HFX ecoCALC DIALux RELUX	41	2043	LED	4.13	21036363
ER LRI L06 2400-RGBW SP ABK 5 67 DMX ecoCALC DIALux RELUX	41	1948	LED	4.13	21036364
ER LRI L06 2400-RGBW SP ABK 5 67 HFX ecoCALC DIALux RELUX	41	1948	LED	4.13	21036365
ER LRI L06 2400-RGBW WF ABK 0 67 DMX ecoCALC DIALux RELUX	48	1440	LED	3.93	21043430
ER LRI L06 2400-RGBW WF ABK 0 67 HFX ecoCALC DIALux RELUX	48	1440	LED	3.65	21051086
ER LRI L06 2400-RGBW WF ABK 5 67 DMX ecoCALC DIALux RELUX	48	1440	LED	3.93	21043431
ER LRI L06 2400-RGBW WF ABK 5 67 HFX ecoCALC DIALux RELUX	48	1440	LED	3.93	21043432

▼ Eroa LRI, L06 Standard Bright

Beskrivning	Armatureffekt (W)	Armaturljusflöde (lm)	Type	Vikt (kg)	SAP nummer
ER LRI L06 900-830 M ABK 0 67 HF ecoCALC DIALux RELUX	14	1010	LED	3.38	21043516
ER LRI L06 900-830 M ABK 5 67 HF ecoCALC DIALux RELUX	14	1000	LED	3.38	21043517
ER LRI L06 900-830 N ABK 0 67 HF ecoCALC DIALux RELUX	14	1080	LED	3.38	21043534
ER LRI L06 900-830 N ABK 5 67 HF ecoCALC DIALux RELUX	14	1090	LED	3.38	21043535
ER LRI L06 900-830 SP ABK 0 67 HF ecoCALC DIALux RELUX	14	1477	LED	3.58	21036422
ER LRI L06 900-830 SP ABK 5 67 HF ecoCALC DIALux RELUX	14	1408	LED	3.58	21036423
ER LRI L06 900-830 WF ABK 0 67 HF ecoCALC DIALux RELUX	14	910	LED	3.38	21043550
ER LRI L06 900-830 WF ABK 5 67 HF ecoCALC DIALux RELUX	14	900	LED	3.38	21043551

▼ Eroa LRI, L09 Standard Bright

Beskrivning	Armatureffekt (W)	Armaturljusflöde (lm)	Type	Vikt (kg)	SAP nummer
ER LRI L09 1400-830 M ABK 0 67 HF ecoCALC DIALux RELUX	20	1520	LED	4.41	21043675
ER LRI L09 1400-830 M ABK 5 67 HF ecoCALC DIALux RELUX	20	1500	LED	4.41	21043676
ER LRI L09 1400-830 N ABK 0 67 HF ecoCALC DIALux RELUX	20	1620	LED	4.41	21043693
ER LRI L09 1400-830 N ABK 5 67 HF ecoCALC DIALux RELUX	20	1630	LED	4.41	21043694
ER LRI L09 1400-830 SP ABK 0 67 HF ecoCALC DIALux RELUX	21	2215	LED	4.61	21036482
ER LRI L09 1400-830 SP ABK 5 67 HF ecoCALC DIALux RELUX	21	2112	LED	4.61	21036483
ER LRI L09 1400-830 WF ABK 0 67 HF ecoCALC DIALux RELUX	20	1360	LED	4.41	21043711
ER LRI L09 1400-830 WF ABK 5 67 HF ecoCALC DIALux RELUX	20	1350	LED	4.41	21043712

▼ Eroa LRI, L09 Extra Bright

Beskrivning	Armatureffekt (W)	Armaturljusflöde (lm)	Type	Vikt (kg)	SAP nummer
ER LRI L09 3800-830 M ABK 0 67 HF ecoCALC DIALux RELUX	54	4060	LED	4.41	21043951
ER LRI L09 3800-830 M ABK 0 67 HFX ecoCALC DIALux RELUX	54	4060	LED	4.41	21043952
ER LRI L09 3800-830 M ABK 5 67 HF ecoCALC DIALux RELUX	54	4000	LED	4.41	21043954
ER LRI L09 3800-830 M ABK 5 67 HFX ecoCALC DIALux RELUX	54	4000	LED	4.41	21043955
ER LRI L09 3800-830 N ABK 0 67 HF ecoCALC DIALux RELUX	54	4310	LED	4.41	21044007
ER LRI L09 3800-830 N ABK 0 67 HFX ecoCALC DIALux RELUX	54	4310	LED	4.41	21044008
ER LRI L09 3800-830 N ABK 5 67 HF ecoCALC DIALux RELUX	54	4350	LED	4.80	21050992
ER LRI L09 3800-830 N ABK 5 67 HFX ecoCALC DIALux RELUX	54	4350	LED	4.41	21044010
ER LRI L09 3800-830 SP ABK 0 67 HF ecoCALC DIALux RELUX	62	6227	LED	4.61	21036583
ER LRI L09 3800-830 SP ABK 0 67 HFX ecoCALC DIALux RELUX	62	6227	LED	4.61	21036584
ER LRI L09 3800-830 SP ABK 5 67 HF ecoCALC DIALux RELUX	62	5938	LED	5.00	21036586
ER LRI L09 3800-830 SP ABK 5 67 HFX ecoCALC DIALux RELUX	62	5938	LED	4.61	21036587
ER LRI L09 3800-830 WF ABK 0 67 HF ecoCALC DIALux RELUX	54	3630	LED	4.41	21044056
ER LRI L09 3800-830 WF ABK 0 67 HFX ecoCALC DIALux RELUX	54	3630	LED	4.80	21050933
ER LRI L09 3800-830 WF ABK 5 67 HF ecoCALC DIALux RELUX	54	3610	LED	4.41	21044058
ER LRI L09 3800-830 WF ABK 5 67 HFX ecoCALC DIALux RELUX	54	3610	LED	4.41	21044059
ER LRI L09 3800-RGBW M ABK 0 67 DMX ecoCALC DIALux RELUX	71	2420	LED	4.96	21044275
ER LRI L09 3800-RGBW M ABK 0 67 HFX ecoCALC DIALux RELUX	71	2420	LED	4.80	21051099
ER LRI L09 3800-RGBW M ABK 5 67 DMX ecoCALC DIALux RELUX	71	2390	LED	4.96	21044276
ER LRI L09 3800-RGBW M ABK 5 67 HFX ecoCALC DIALux RELUX	71	2390	LED	4.96	21044277
ER LRI L09 3800-RGBW N ABK 0 67 DMX ecoCALC DIALux RELUX	71	2570	LED	4.96	21044308
ER LRI L09 3800-RGBW N ABK 0 67 HFX ecoCALC DIALux RELUX	71	2570	LED	4.96	21044309
ER LRI L09 3800-RGBW N ABK 5 67 DMX ecoCALC DIALux RELUX	71	2600	LED	4.96	21044310
ER LRI L09 3800-RGBW N ABK 5 67 HFX ecoCALC DIALux RELUX	71	2600	LED	4.96	21044311
ER LRI L09 3800-RGBW SP ABK 0 67 DMX ecoCALC DIALux RELUX	62	2918	LED	5.16	21036702
ER LRI L09 3800-RGBW SP ABK 0 67 HFX ecoCALC DIALux RELUX	62	2918	LED	5.16	21036703
ER LRI L09 3800-RGBW SP ABK 5 67 DMX ecoCALC DIALux RELUX	62	2782	LED	5.16	21036704
ER LRI L09 3800-RGBW SP ABK 5 67 HFX ecoCALC DIALux RELUX	62	2782	LED	5.16	21036705
ER LRI L09 3800-RGBW WF ABK 0 67 DMX ecoCALC DIALux RELUX	71	2170	LED	4.96	21044338
ER LRI L09 3800-RGBW WF ABK 0 67 HFX ecoCALC DIALux RELUX	71	2170	LED	4.96	21044339
ER LRI L09 3800-RGBW WF ABK 5 67 DMX ecoCALC DIALux RELUX	71	2150	LED	4.96	21044340
ER LRI L09 3800-RGBW WF ABK 5 67 HFX ecoCALC DIALux RELUX	71	2150	LED	4.96	21044341

▼ Eroa LRI, L12 Standard Bright

Beskrivning	Armatureffekt (W)	Armaturljusflöde (lm)	Type	Vikt (kg)	SAP nummer
ER LRI L12 1900-830 M ABK 0 67 HF ecoCALC DIALux RELUX	27	2030	LED	5.44	21051124
ER LRI L12 1900-830 M ABK 5 67 HF ecoCALC DIALux RELUX	27	2000	LED	5.44	21044423
ER LRI L12 1900-830 N ABK 0 67 HF ecoCALC DIALux RELUX	27	2160	LED	5.44	21044439
ER LRI L12 1900-830 N ABK 5 67 HF ecoCALC DIALux RELUX	27	2180	LED	5.44	21044440
ER LRI L12 1900-830 SP ABK 0 67 HF ecoCALC DIALux RELUX	28	2955	LED	5.64	21036762
ER LRI L12 1900-830 SP ABK 5 67 HF ecoCALC DIALux RELUX	28	2817	LED	5.64	21036763
ER LRI L12 1900-830 WF ABK 0 67 HF ecoCALC DIALux RELUX	27	1820	LED	5.44	21044456
ER LRI L12 1900-830 WF ABK 5 67 HF ecoCALC DIALux RELUX	27	1800	LED	5.44	21044457

▼ Eroa LRI, L12 Extra Bright

Beskrivning	Armatureffekt (W)	Armaturljusflöde (lm)	Type	Vikt (kg)	SAP nummer
ER LRI L12 5000-830 M ABK 0 67 HF ecoCALC DIALux RELUX	72	5410	LED	5.44	21044695
ER LRI L12 5000-830 M ABK 0 67 HFX ecoCALC DIALux RELUX	72	5410	LED	5.44	21044696
ER LRI L12 5000-830 M ABK 5 67 HF ecoCALC DIALux RELUX	72	5340	LED	5.44	21044698
ER LRI L12 5000-830 M ABK 5 67 HFX ecoCALC DIALux RELUX	72	5340	LED	5.44	21044699
ER LRI L12 5000-830 N ABK 0 67 HF ecoCALC DIALux RELUX	72	5750	LED	5.44	21044746
ER LRI L12 5000-830 N ABK 0 67 HFX ecoCALC DIALux RELUX	72	5750	LED	5.20	21050921
ER LRI L12 5000-830 N ABK 5 67 HF ecoCALC DIALux RELUX	72	5800	LED	5.44	21044748
ER LRI L12 5000-830 N ABK 5 67 HFX ecoCALC DIALux RELUX	72	5800	LED	5.44	21044749
ER LRI L12 5000-830 SP ABK 0 67 HF ecoCALC DIALux RELUX	77	8309	LED	5.64	21036863
ER LRI L12 5000-830 SP ABK 0 67 HFX ecoCALC DIALux RELUX	77	8309	LED	5.40	21036864
ER LRI L12 5000-830 SP ABK 5 67 HF ecoCALC DIALux RELUX	77	7922	LED	5.64	21036866
ER LRI L12 5000-830 SP ABK 5 67 HFX ecoCALC DIALux RELUX	77	7922	LED	5.64	21036867
ER LRI L12 5000-830 WF ABK 0 67 HF ecoCALC DIALux RELUX	72	4840	LED	5.44	21044794
ER LRI L12 5000-830 WF ABK 0 67 HFX ecoCALC DIALux RELUX	72	4840	LED	5.44	21044795
ER LRI L12 5000-830 WF ABK 5 67 HF ecoCALC DIALux RELUX	72	4810	LED	5.44	21044797
ER LRI L12 5000-830 WF ABK 5 67 HFX ecoCALC DIALux RELUX	72	4810	LED	5.44	21044798
ER LRI L12 5000-RGBW M ABK 0 67 DMX ecoCALC DIALux RELUX	95	3230	LED	5.99	21045014
ER LRI L12 5000-RGBW M ABK 0 67 HFX ecoCALC DIALux RELUX	95	3230	LED	5.99	21045015
ER LRI L12 5000-RGBW M ABK 5 67 DMX ecoCALC DIALux RELUX	95	3180	LED	5.90	21050977
ER LRI L12 5000-RGBW M ABK 5 67 HFX ecoCALC DIALux RELUX	95	3180	LED	5.99	21045016
ER LRI L12 5000-RGBW N ABK 0 67 DMX ecoCALC DIALux RELUX	95	3430	LED	5.99	21045046
ER LRI L12 5000-RGBW N ABK 0 67 HFX ecoCALC DIALux RELUX	95	3430	LED	5.99	21045047
ER LRI L12 5000-RGBW N ABK 5 67 DMX ecoCALC DIALux RELUX	95	3460	LED	5.99	21045048
ER LRI L12 5000-RGBW N ABK 5 67 HFX ecoCALC DIALux RELUX	95	3460	LED	5.99	21045049
ER LRI L12 5000-RGBW SP ABK 0 67 DMX ecoCALC DIALux RELUX	77	4030	LED	6.19	21036982
ER LRI L12 5000-RGBW SP ABK 0 67 HFX ecoCALC DIALux RELUX	77	4030	LED	6.19	21036983
ER LRI L12 5000-RGBW SP ABK 5 67 DMX ecoCALC DIALux RELUX	77	3842	LED	6.19	21036984
ER LRI L12 5000-RGBW SP ABK 5 67 HFX ecoCALC DIALux RELUX	77	3842	LED	6.19	21036985
ER LRI L12 5000-RGBW WF ABK 0 67 DMX ecoCALC DIALux RELUX	95	2890	LED	5.99	21045078
ER LRI L12 5000-RGBW WF ABK 0 67 HFX ecoCALC DIALux RELUX	95	2890	LED	5.99	21045079
ER LRI L12 5000-RGBW WF ABK 5 67 DMX ecoCALC DIALux RELUX	95	2870	LED	5.20	21051091
ER LRI L12 5000-RGBW WF ABK 5 67 HFX ecoCALC DIALux RELUX	95	2870	LED	5.99	21045080

▼ Eroa LRI, monteringstillbehör (obligatoriska)

Beskrivning	Vikt (kg)	SAP nummer
ER LRI FLANGED END CAP 2070/AS ecoCALC	0.30	21100335
ER LRI FLANGED END CAP 2070/BK ecoCALC	0.10	21100336
ER LRI GROUND SLEEVE 2060/1200 ecoCALC	2.50	21100332
ER LRI GROUND SLEEVE 2060/2400 ecoCALC	5.00	21100333
ER LRI GROUND SLEEVE 2060/300 ecoCALC	0.60	21100438
ER LRI GROUND SLEEVE 2060/600 ecoCALC	1.20	21100330
ER LRI GROUND SLEEVE 2060/900 ecoCALC	1.88	21100331
ER LRI SLEEVE END CAP KIT 2059 ecoCALC	0.20	21100334

▼ Eroa LRI, monteringstillbehör (tillval)

Beskrivning	Vikt (kg)	SAP nummer
ER LRI SECURE END CAP 2071/AS ecoCALC	0.25	21100337
ER LRI SECURE END CAP 2071/BK ecoCALC	0.20	21100338
ER LRI SECURE JOINING KIT 2072 ecoCALC	0.15	21100339

▼ Eroa LRI, installationsprodukter

Beskrivning	Vikt (kg)	SAP nummer
ER CONNECTOR KIT 2087A ecoCALC	0.20	21100457
ER LINK LEAD 2067A/0.3M HF ecoCALC	0.21	21100464
ER LINK LEAD 2067A/0.6M HF ecoCALC	0.14	21100465
ER LINK LEAD 2067A/0.9M HF ecoCALC	0.17	21100466
ER LINK LEAD 2067A/1.2M HF ecoCALC	0.19	21100467
ER LINK LEAD 2068A/0.3M HFX ecoCALC	0.20	21100468
ER LINK LEAD 2068A/0.6M HFX ecoCALC	0.25	21100469
ER LINK LEAD 2068A/0.9M HFX ecoCALC	0.24	21100470
ER LINK LEAD 2068A/1.2M HFX ecoCALC	0.30	21100471
ER LINK LEAD 2069A/0.3M DMX ecoCALC	0.20	21100472
ER LINK LEAD 2069A/0.6M DMX ecoCALC	0.20	21100473
ER LINK LEAD 2069A/0.9M DMX ecoCALC	0.25	21100474
ER LINK LEAD 2069A/1.2M DMX ecoCALC	0.25	21100475
ER LRI FLEX REEL 2064/20M HFX ecoCALC	3.00	21100320
ER LRI FLEX REEL 2065/20M HF ecoCALC	3.00	21100319
ER LRI FLEX REEL 2066/20M DMX ecoCALC	3.00	21100321
ER STARTER KIT 2061A/10M HF ecoCALC	1.60	21100461
ER STARTER KIT 2061A/2M HF ecoCALC	0.52	21100458
ER STARTER KIT 2062A/10M HFX ecoCALC	1.70	21100462
ER STARTER KIT 2062A/2M HFX ecoCALC	0.60	21100459
ER STARTER KIT 2063A/10M DMX ecoCALC	1.65	21100463
ER STARTER KIT 2063A/2M DMX ecoCALC	0.45	21100460
