Axyl Flood, Medium Size
AXYL FLOOD M 126L 930 AS HFX ANT
Article number: 96801578
EAN number: 9010757464056
area floodlight 39.6W 4939lm 3,000 K
Luminous flux
4939 lm
Control
Dimming DALI
Correlated colour temperature
3000 K
Colour
Anthracite
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 15 working days
Technical Data
Electrical Properties
EEC
C
Luminaire input power
39.6 W
Power factor
0.97
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Dimming DALI
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
4939 lm
Luminaire efficacy
125 lm/W
Correlated colour temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
asymmetrical
Physical Characteristics
Length
320 mm
Width
40 mm
Height
295 mm
Weight
4.54 kg
Colour
Anthracite
Impact strength
IK09
Degree of protection
IP66
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
3000 K
Luminous flux
4939 lm
Degree of protection
IP66
Norms and Standards
Certificates
Downloads

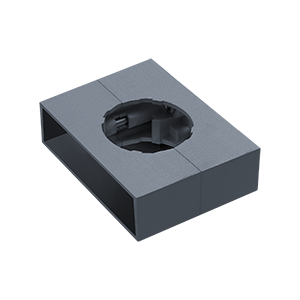

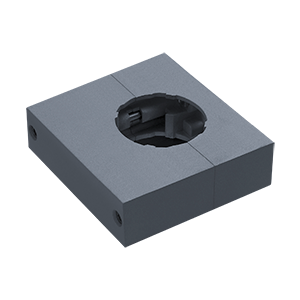

Accessories

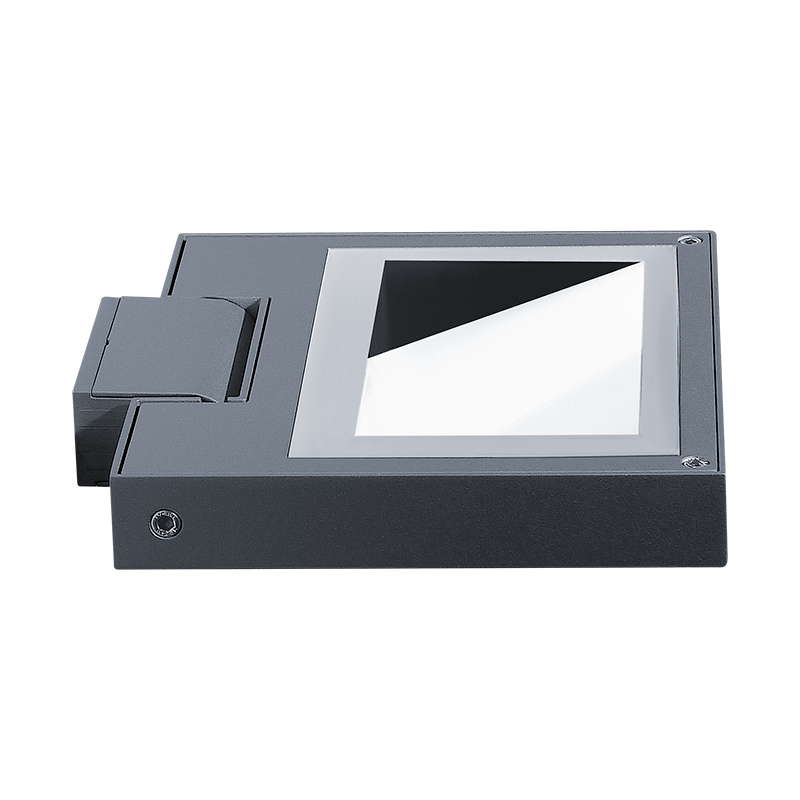

Axyl Flood, Medium Size
96801578 AXYL FLOOD M 126L 930 AS HFX ANT
Axyl Flood, a LED floodlight luminaire for area and facade lighting, with asymmetrical distribution. Class I electrical.. DALI-2 dimmable LED driver. IP66, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +40°C. Complete with 3000K LED..
Dimensions: 320 x 40 x 295 mm
Luminaire luminous flux: 4939 lm
Luminaire efficacy: 125 lm/W
Weight: 4.54 kg
