Axyl Flood, Small Size
AXYL FLOOD S 56L 930 AS HFX WH
Article number: 96801563
EAN number: 9010757463905
area floodlight 18.6W 2097lm 3,000 K
Luminous flux
2097 lm
Control
Dimming DALI
Correlated colour temperature
3000 K
Colour
White
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
C
Luminaire input power
18.6 W
Power factor
0.97
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Dimming DALI
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
2097 lm
Luminaire efficacy
113 lm/W
Correlated colour temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
asymmetrical
Physical Characteristics
Length
220 mm
Width
34 mm
Height
220 mm
Weight
2.75 kg
Colour
White
Impact strength
IK09
Degree of protection
IP66
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
3000 K
Luminous flux
2097 lm
Degree of protection
IP66
Norms and Standards
Certificates
Downloads

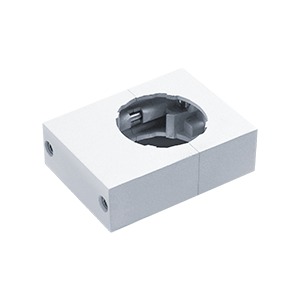

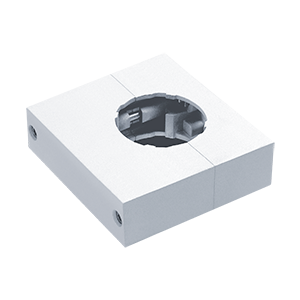

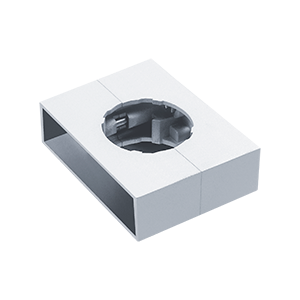

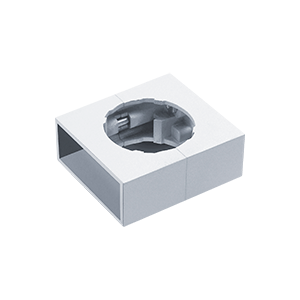

Accessories

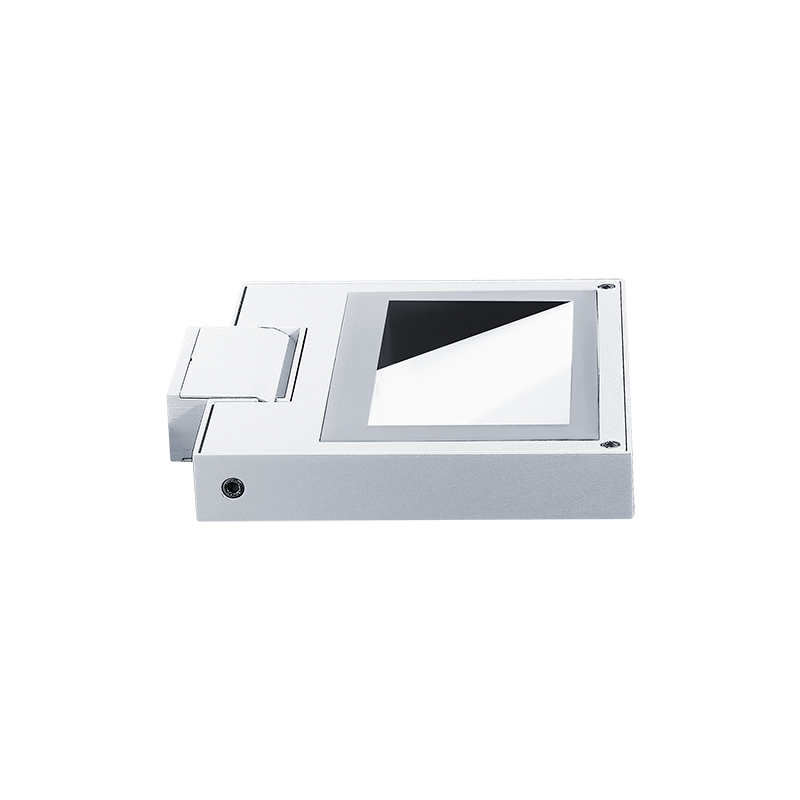

Axyl Flood, Small Size
96801563 AXYL FLOOD S 56L 930 AS HFX WH
Axyl Flood, a LED floodlight luminaire for area and facade lighting, with asymmetrical distribution. Class I electrical.. DALI-2 dimmable LED driver. IP66, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured white. Working ambient temperature: -20°C to +40°C. Complete with 3000K LED..
Dimensions: 220 x 34 x 220 mm
Luminaire luminous flux: 2097 lm
Luminaire efficacy: 113 lm/W
Weight: 2.75 kg
