Axyl Etch
AXYL ETCH S WF 1L RGBW EB DMX ANT
Article number: 96801485
EAN number: 9010757463127
wall mounted luminaire 6.7W 58lm
Luminous flux
58 lm
Control
Dimming DMX
Colour
Anthracite
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 15 working days
Technical Data
Electrical Properties
EEC
E
Luminaire input power
6.7 W
Rated voltage
120 - 277 V
Safety Class
SC3
Control
Dimming DMX
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
58 lm
Luminaire efficacy
9 lm/W
Chromaticity tolerance (initial MacAdam)
3
Light Distribution
STD - standard
Beam angle
elliptical beam
Physical Characteristics
Length
130 mm
Width
103 mm
Height
53 mm
Weight
1.16 kg
Colour
Anthracite
Impact strength
IK10
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Luminous flux
58 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Accessories
Axyl Etch
96801485 AXYL ETCH S WF 1L RGBW EB DMX ANT

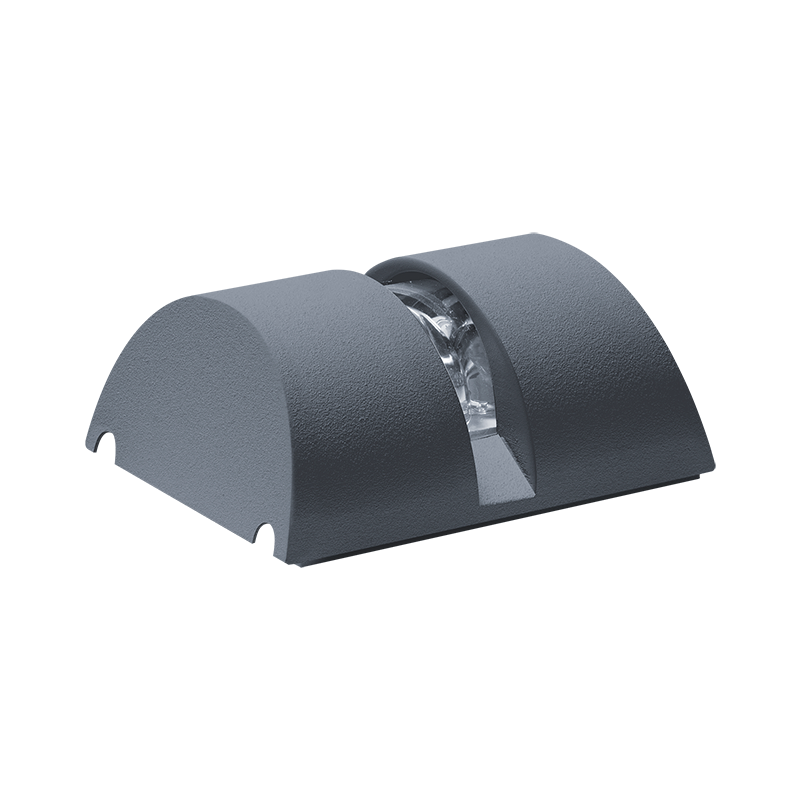

Axyl Etch, a wall mounted, architectural LED luminaire for decorative facade lighting, with elliptical beam distribution. Class III electrical.. DMX controllable control gear LED driver. IP65, Impact strength: IK10. Housing: Die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +40°C. Complete with RGBW colour change LEDs..
Dimensions: 130 x 53 x 103 mm
Luminaire luminous flux: 58 lm
Luminaire efficacy: 9 lm/W
Weight: 1.16 kg
