Axyl Echo Cei, Medium Size Narrow Beam
AXYL ECHO M CEI 9L 927 NB HFX WH
Article number: 96801409
EAN number: 9010757462366
Ceiling LED luminaire 20.8W 1427lm 2,700 K
Luminous flux
1427 lm
Control
Dimming DALI
Correlated colour temperature
2700 K
Colour
White
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
F
Luminaire input power
20.8 W
Power factor
0.95
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Dimming DALI
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
1427 lm
Luminaire efficacy
69 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
narrow beam
Physical Characteristics
Length
155 mm
Width
155 mm
Height
155 mm
Weight
3.37 kg
Colour
White
Impact strength
IK06
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
1427 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads

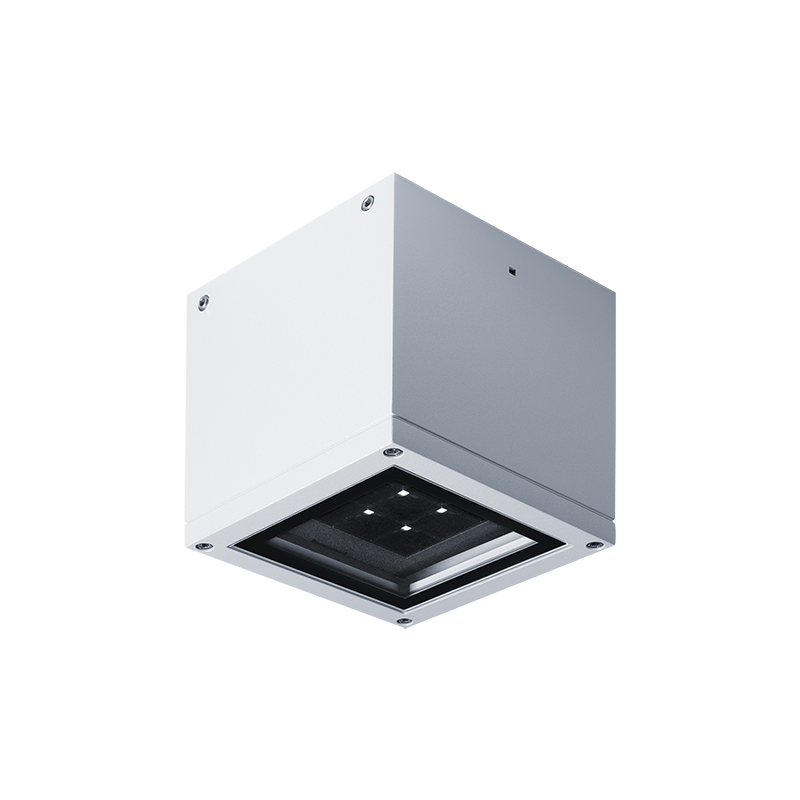

Axyl Echo Cei, Medium Size Narrow Beam
96801409 AXYL ECHO M CEI 9L 927 NB HFX WH
Axyl Echo Ceiling, a ceiling mounted, LED luminaire for decorative facade lighting, with narrow beam distribution. Class I electrical.. DALI-2 dimmable LED driver. IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured white. Working ambient temperature: -20°C to +40°C. Complete with 2700K LED..
Dimensions: 155 x 155 x 155 mm
Luminaire luminous flux: 1427 lm
Luminaire efficacy: 69 lm/W
Weight: 3.37 kg
