Axyl Echo, Small Size Narrow Beam
AXYL ECHO S 4L 927 NB HF WH
Article number: 96801217
EAN number: 9010757460447
wall mounted luminaire 7.7W 461lm 2,700 K
Luminous flux
461 lm
Control
Fixed output
Correlated colour temperature
2700 K
Colour
White
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
F
Luminaire input power
7.7 W
Power factor
0.97
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Fixed output
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
461 lm
Luminaire efficacy
60 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
narrow beam
Physical Characteristics
Length
110 mm
Width
110 mm
Height
110 mm
Weight
1.47 kg
Colour
White
Impact strength
IK06
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
461 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Axyl Echo, Small Size Narrow Beam
96801217 AXYL ECHO S 4L 927 NB HF WH

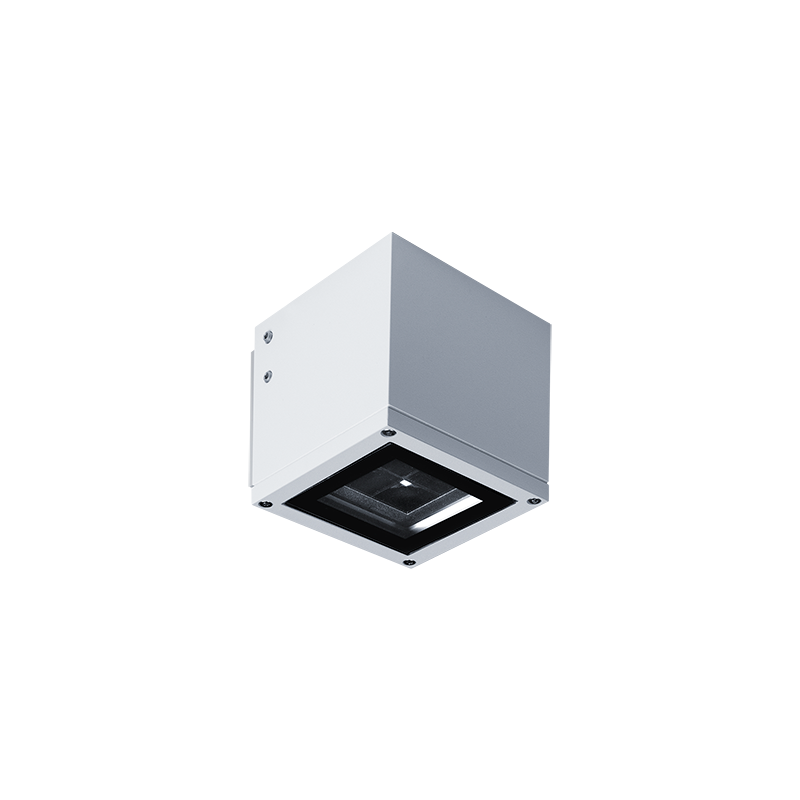

Axyl Echo, a wall mounted, LED luminaire for decorative facade lighting, with narrow beam distribution. Class I electrical.. Fixed output LED driver. IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured white. Working ambient temperature: -20°C to +40°C. Complete with 2700K LED..
Dimensions: 110 x 110 x 110 mm
Luminaire luminous flux: 461 lm
Luminaire efficacy: 60 lm/W
Weight: 1.47 kg
