Axyl Opera Cei, Large Size 5D Beam
AXYL OPERA L CEI 1L 927 5D HFX SS
Article number: 96801030
EAN number: 9010757458574
Ceiling LED luminaire 16.4W 860lm 2,700 K
Luminous flux
860 lm
Control
Dimming DALI
Correlated colour temperature
2700 K
Colour
Steel
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
F
Luminaire input power
16.4 W
Power factor
0.97
Rated voltage
220 - 240 V
Safety Class
SC3
Control
Dimming DALI
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
860 lm
Luminaire efficacy
52 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
0 - Position
Beam angle
5D Beam (10 to 50° Beam angle dimmable by DALI)
Physical Characteristics
Length
210 mm
Width
210 mm
Height
215 mm
Weight
3.71 kg
Colour
Steel
Impact strength
IK09
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
860 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Accessories
Axyl Opera Cei, Large Size 5D Beam
96801030 AXYL OPERA L CEI 1L 927 5D HFX SS

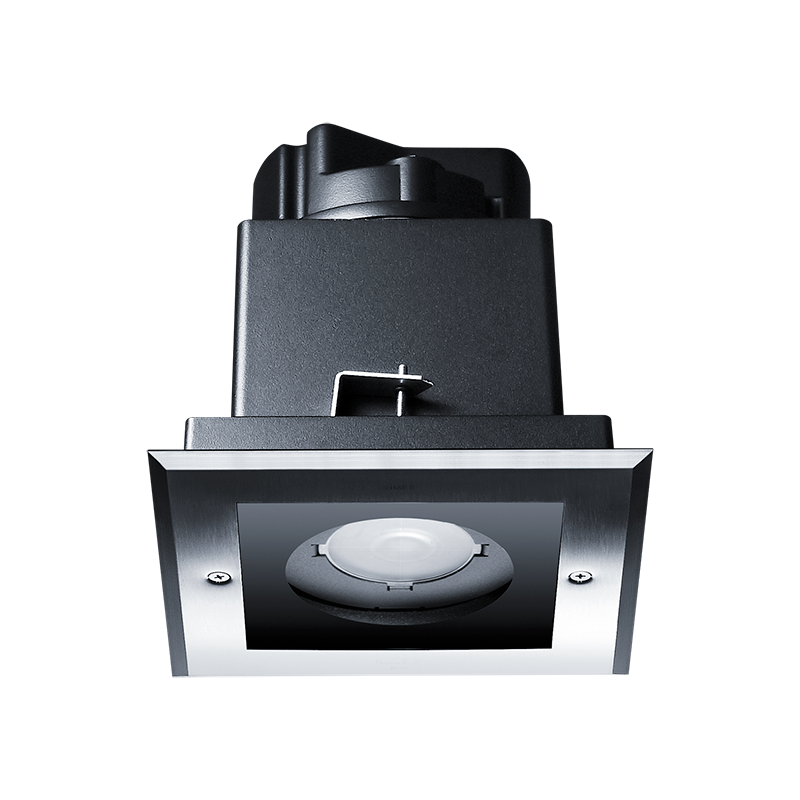

Axyl Opera Ceiling, a ceiling recessed, architectural LED luminaire for decorative facade lighting, with 5D Beam (10 to 50° Beam angle dimmable by DALI) distribution. Class III electrical.. DALI-2 dimmable LED driver. 48V PSU to be ordered separately (96801046) IP65, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured stainless steel. Working ambient temperature: -20°C to +35°C. Complete with 2700K LED. 48V PSU to be ordered separately (96801046).
Dimensions: 210 x 210 x 215 mm
Luminaire luminous flux: 860 lm
Luminaire efficacy: 52 lm/W
Weight: 3.71 kg
