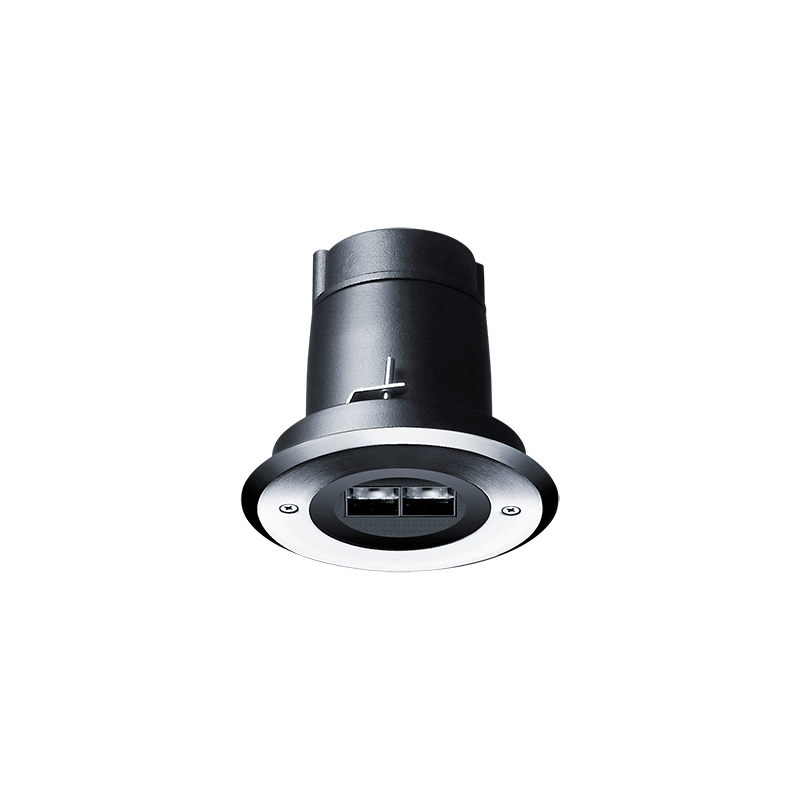

Cesar Opera Cei, Medium Size Wide Beam
CESAR OPERA M CEI 2L 930 WB RD SS
Article number: 96800867
EAN number: 9010757456945
Ceiling LED luminaire 5.5W 268lm 3,000 K
Luminous flux
268 lm
Control
Remote DALI2 driver
Correlated colour temperature
3000 K
Colour
Steel
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 15 working days
Technical Data
Electrical Properties
EEC
E
Luminaire input power
5.5 W
Power factor
0.53
Rated voltage
24 V
Safety Class
SC3
Control
Remote DALI2 driver
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
268 lm
Luminaire efficacy
49 lm/W
Correlated colour temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
wide beam
Physical Characteristics
Length
135 mm
Width
135 mm
Height
216 mm
Weight
1.17 kg
Colour
Steel
Impact strength
IK09
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
3000 K
Luminous flux
268 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Accessories
Cesar Opera Cei, Medium Size Wide Beam
96800867 CESAR OPERA M CEI 2L 930 WB RD SS
Cesar Opera Ceiling a ceiling recessed, LED luminaire for decorative facade lighting, wide beam distribution. Class III electrical. Remote DALI2 driver LED driver. IP65, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured stainless steel. Working ambient temperature: -20°C to +35°C. Complete with 3000K LED.
Operate with 96700028 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to two luminaire(s).
Maximum operating current : 700mA.
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: Ø135 x 216 mm
Luminaire luminous flux: 268 lm
Luminaire efficacy: 49 lm/W
Weight: 1.17 kg
