Cesar Edge, Medium Size 2 Windows 180°
CESAR EDGE M 2L 827 2 WIN 180° RD ANT
Article number: 96800651
EAN number: 9010757454781
surface luminaire 5.8W 119lm 2,700 K
Luminous flux
119 lm
Control
Remote DALI2 driver
Correlated colour temperature
2700 K
Colour
Anthracite
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
E
Luminaire input power
5.8 W
Power factor
0.97
Rated voltage
24 V
Safety Class
SC3
Control
Remote DALI2 driver
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
119 lm
Luminaire efficacy
21 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Length
235 mm
Width
235 mm
Height
50 mm
Weight
3.04 kg
Colour
Anthracite
Impact strength
IK10
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
119 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Accessories

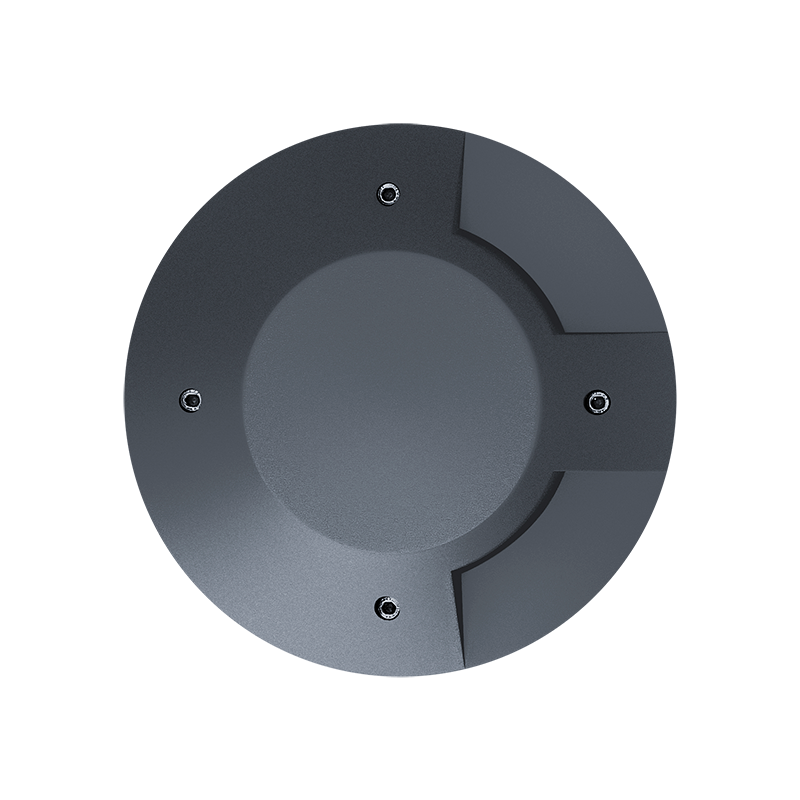

Cesar Edge, Medium Size 2 Windows 180°
96800651 CESAR EDGE M 2L 827 2 WIN 180° RD ANT
Cesar Edge a surface mounted, LED luminaire for decorative facade lighting, 2 window optics with 180° shift, distribution. Class III electrical. Remote DALI2 driver. IP67, Impact strength: IK10. Housing: Die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +40°C. Complete with 2700K LED.
Compatible with Drive Over application if mounted with flange accessory.
Operate with 96700030 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to four luminaire(s).
Maximum operating current : 700mA.
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: Ø235 x 50 mm
Luminaire luminous flux: 119 lm
Luminaire efficacy: 21 lm/W
Weight: 3.04 kg
