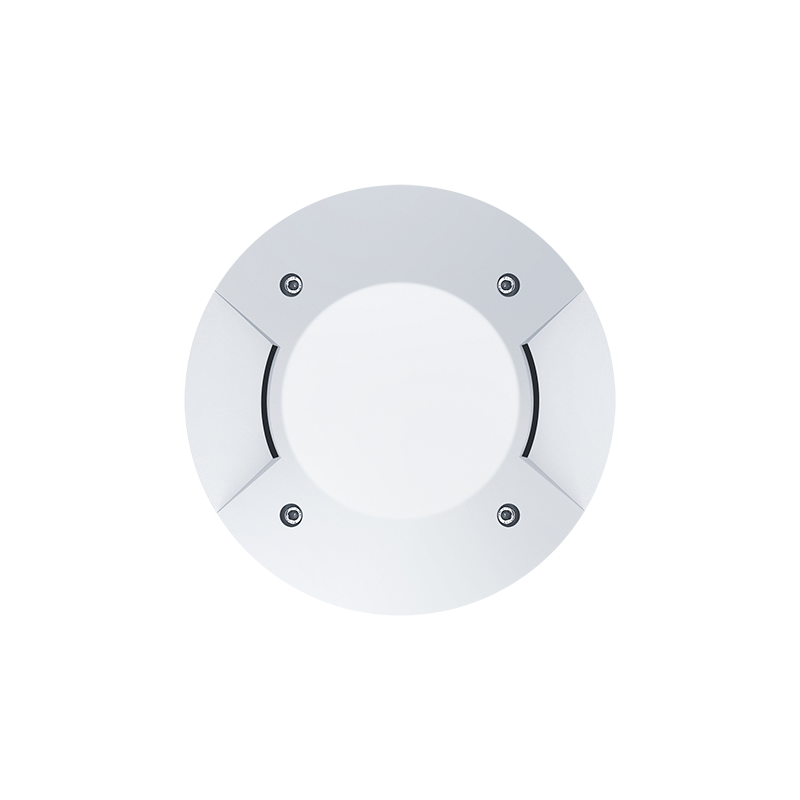

Cesar Edge, Small Size 2 Windows 90°
CESAR EDGE S 2L 830 2 WIN 90° RD WH
Article number: 96800583
EAN number: 9010757454101
surface luminaire 4.3W 76lm 3,000 K
Luminous flux
76 lm
Control
Remote DALI2 driver
Correlated colour temperature
3000 K
Colour
White
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
E
Luminaire input power
4.3 W
Power factor
0.97
Rated voltage
24 V
Safety Class
SC3
Control
Remote DALI2 driver
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
76 lm
Luminaire efficacy
18 lm/W
Correlated colour temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Length
185 mm
Width
185 mm
Height
41 mm
Weight
1.9 kg
Colour
White
Impact strength
IK10
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
3000 K
Luminous flux
76 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Accessories
Cesar Edge, Small Size 2 Windows 90°
96800583 CESAR EDGE S 2L 830 2 WIN 90° RD WH
Cesar Edge a surface mounted, LED luminaire for decorative facade lighting, 2 window optics with 90° shift, distribution. Class III electrical. Remote DALI2 driver. IP67, Impact strength: IK10. Housing: Die-cast aluminium, powder coated textured white. Working ambient temperature: -20°C to +40°C. Complete with 3000K LED.
Compatible with Drive Over application if mounted with flange accessory.
Operate with 96700028 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to three luminaire(s).
Maximum operating current : 350mA.
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: Ø185 x 41 mm
Luminaire luminous flux: 76 lm
Luminaire efficacy: 18 lm/W
Weight: 1.9 kg
