Piazza 3, Emergency
PIAZZA 3 9-16-27 827-830-840 HF ANT E3D
Article number: 96800096
EAN number: 9010757233119
Wall mounted LED luminaire 23.6W 2643lm 4,000 K
Luminous flux
2643 lm
Control
fixed output control gear
Correlated colour temperature
4000 K
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Delivery time on request
Technical Data
Electrical Properties
EEC
D
Luminaire input power
23.6 W
Power factor
0.9
Rated voltage
220 - 240 V
Safety Class
SC1
Control
fixed output control gear
Emergency included
Yes
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
2643 lm
Luminaire efficacy
112 lm/W
Correlated colour temperature
4000 K
Chromaticity tolerance (initial MacAdam)
5
Colour Rendering Index min.
80
Light Distribution
High 4000K
Total emergency luminous flux
635 lm
Physical Characteristics
Dimensions
381x196x305 mm
Mounting type
Wall surface mounted
Length
381 mm
Width
196 mm
Height
305 mm
Weight
3.548 kg
Impact strength
IK10
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 60000 h 25 °C
overviewFeatures_outdoor
Correlated colour temperature
4000 K
Luminous flux
2643 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Piazza 3, Emergency
96800096 PIAZZA 3 9-16-27 827-830-840 HF ANT E3D

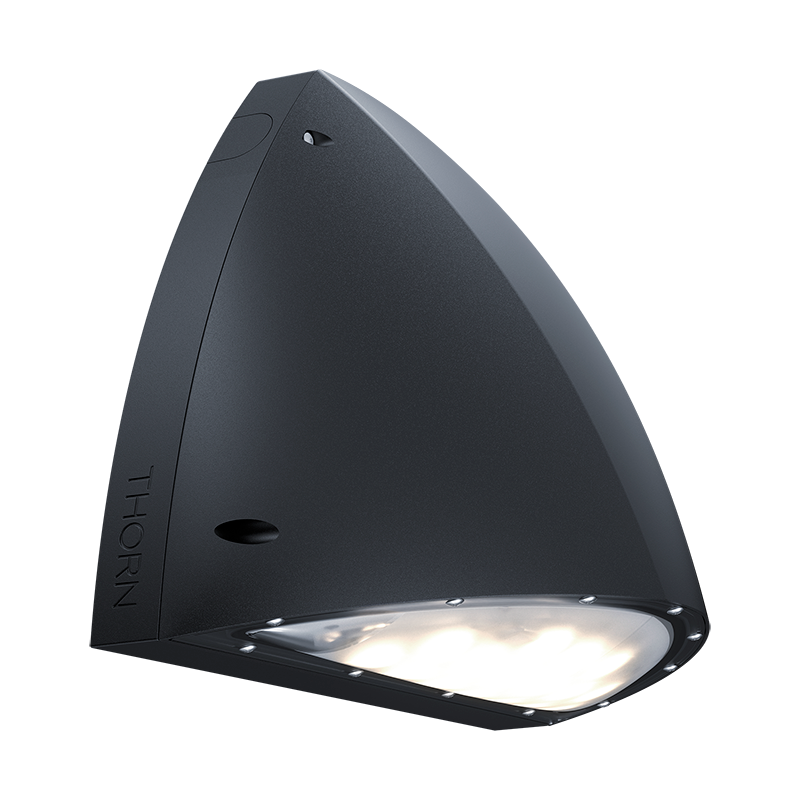

A robust wall mounted luminaire with switchable lumen output. Electronic, fixed output control gear with 3-hour emergency light function and self-test / DALI addressable testing. Back plate: Die-cast aluminium (EN AC-44300), painted anthracite. Body: anthracite polycarbonate. Ø20mm cable entry via rear or side conduit entries, BESA compatible. IP65, IK10.
Complete with LCS LED technology with three lumen values (900/1600/2700lm) in colour temperature 2700K, 3000K and 4000K each.
Dimensions: 381 x 196 x 305 mm
Luminaire luminous flux: 2643 lm
Luminaire efficacy: 112 lm/W
Weight: 3.55 kg
