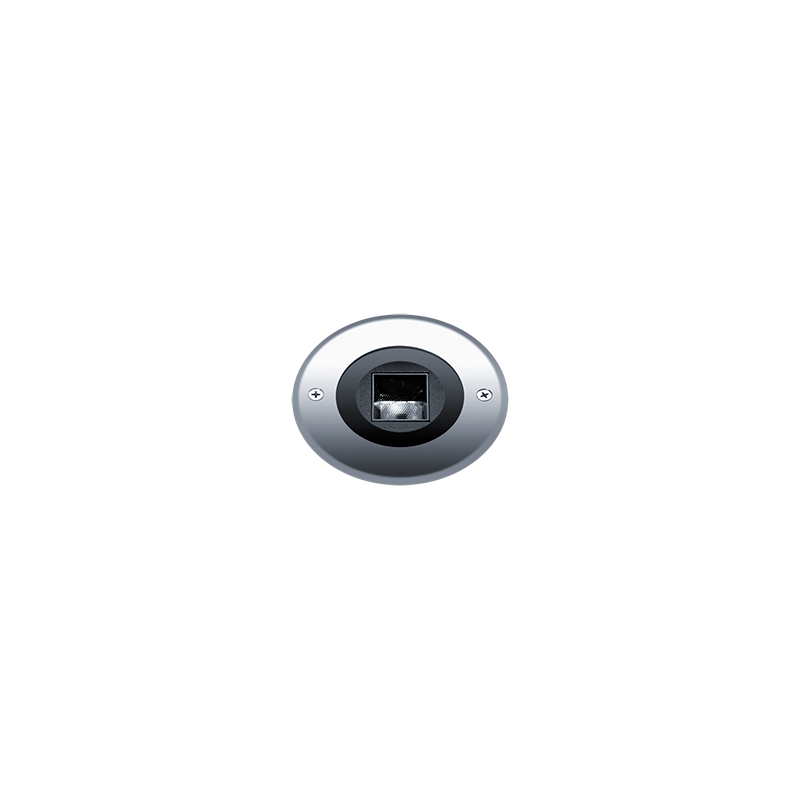

Cesar Opera, walk over small size narrow beam
CESAR OPERA S WO 1L 927 NB RD SS
Article number: 96701845
EAN number: 9010757157194
floor recessed luminaire 3.65W 160lm 2,700 K
Luminous flux
160 lm
Control
Remote DALI2 driver
Correlated colour temperature
2700 K
Colour
Steel
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
F
Luminaire input power
3.65 W
Rated voltage
24 V
Safety Class
SC3
Control
Remote DALI2 driver
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
160 lm
Luminaire efficacy
44 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
narrow beam
Physical Characteristics
Dimensions
Ø[120]x[120] mm
Mounting type
Floor Recessed
Length
120 mm
Width
120 mm
Height
120 mm
Weight
0.7 kg
Colour
Steel
Impact strength
IK09
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
160 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Accessories
Cesar Opera, walk over small size narrow beam
96701845 CESAR OPERA S WO 1L 927 NB RD SS
Cesar Opera, walk over a floor recessed, LED luminaire for decorative facade lighting, narrow beam distribution.. Remote DALI2 driver LED driver. Class III electrical IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +45°C. Complete with 2700K LED.
Operate with 96700028 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to five luminaire(s).
Maximum operating current : 700mA.
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: Ø120 x 120 mm
Luminaire luminous flux: 160 lm
Luminaire efficacy: 44 lm/W
Weight: 0.7 kg
