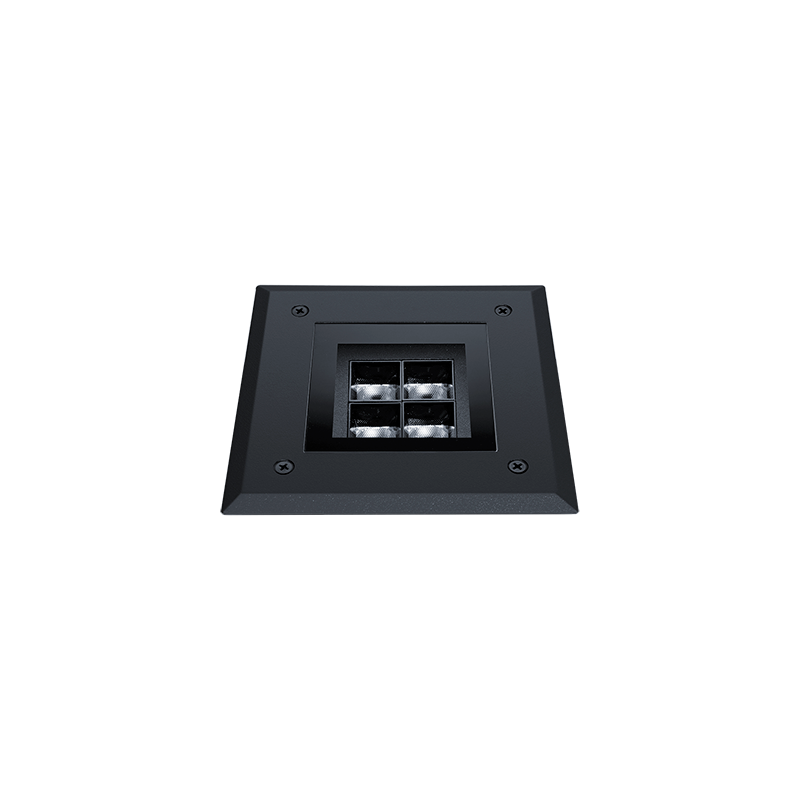

Axyl Opera, medium size narrow beam
AXYL OPERA M WO 4L 930 NB RD BK
Article number: 96701785
EAN number: 9010757156777
floor recessed luminaire 7.1W 485lm 3,000 K
Luminous flux
485 lm
Control
Remote DALI2 driver
Correlated colour temperature
3000 K
Colour
Black
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
E
Luminaire input power
7.1 W
Power factor
0.47
Rated voltage
24 V
Safety Class
SC3
Control
Remote DALI2 driver
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
485 lm
Luminaire efficacy
68 lm/W
Correlated colour temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
narrow beam
Physical Characteristics
Dimensions
135x135x135 mm
Mounting type
Floor Recessed
Length
135 mm
Width
135 mm
Height
135 mm
Weight
1.658 kg
Colour
Black
Impact strength
IK09
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
3000 K
Luminous flux
485 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Accessories
GB IP67 20W 230V 250-700 CL2 HFX
Article Number 96700028
AXYL & CESAR Mandatory Driver for RD Luminaires
Price on request
Delivery time on request
Axyl Opera, medium size narrow beam
96701785 AXYL OPERA M WO 4L 930 NB RD BK
Axyl Opera, a floor recessed, LED luminaire for decorative facade lighting, with narrow beam distribution. Class III electrical. Remote DALI2 driver Remote LED driver. IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured black (close to RAL9005). Working ambient temperature: -20°C to +50°C. Complete with 3000K LED.
Operate with 96700028 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to three luminaire(s).
Maximum operating current : 500mA.
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: 135 x 135 x 135 mm
Luminaire luminous flux: 485 lm
Luminaire efficacy: 68 lm/W
Weight: 1.66 kg
