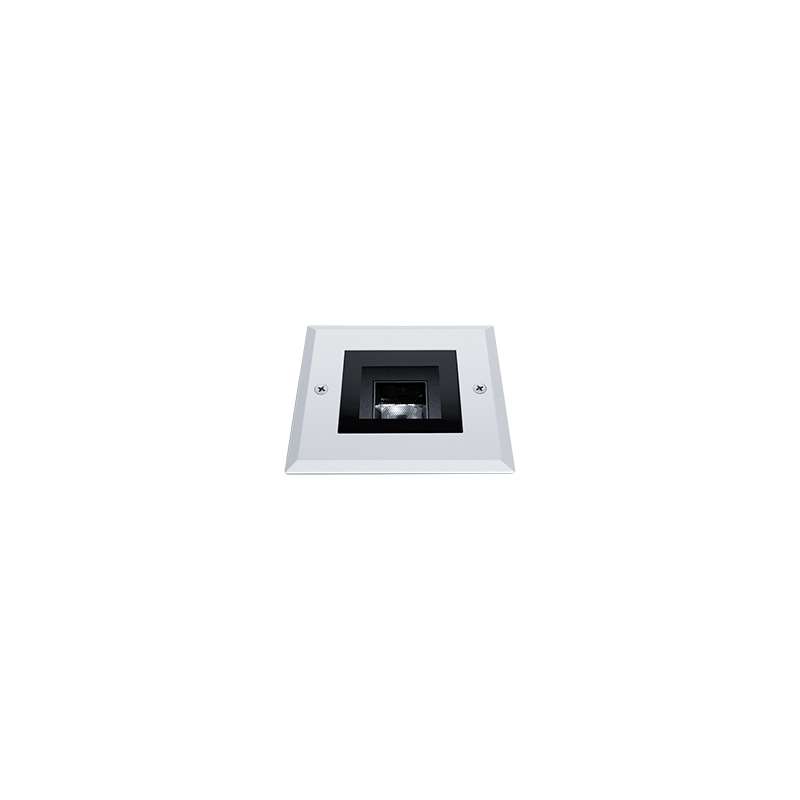

Axyl Opera, small size narrow beam
AXYL OPERA S WO 1L 930 NB RD WH
Article number: 96701712
EAN number: 9010757156043
floor recessed luminaire 3.6W 169lm 3,000 K
Luminous flux
169 lm
Control
Remote DALI2 driver
Correlated colour temperature
3000 K
Colour
White
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
E
Luminaire input power
3.6 W
Power factor
0.45
Rated voltage
24 V
Safety Class
SC3
Control
Remote DALI2 driver
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
169 lm
Luminaire efficacy
47 lm/W
Correlated colour temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
narrow beam
Physical Characteristics
Dimensions
85x85x125 mm
Mounting type
Floor Recessed
Length
85 mm
Width
85 mm
Height
125 mm
Weight
0.766 kg
Colour
White
Impact strength
IK09
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
3000 K
Luminous flux
169 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Accessories
Axyl Opera, small size narrow beam
96701712 AXYL OPERA S WO 1L 930 NB RD WH
Axyl Opera, a floor recessed, LED luminaire for decorative facade lighting, with narrow beam distribution. Class III electrical. Remote DALI2 driver Remote LED driver. IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +45°C. Complete with 3000K LED.
Operate with 96700028 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to five luminaire(s).
Maximum operating current : 700mA.
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: 85 x 85 x 125 mm
Luminaire luminous flux: 169 lm
Luminaire efficacy: 47 lm/W
Weight: 0.77 kg
