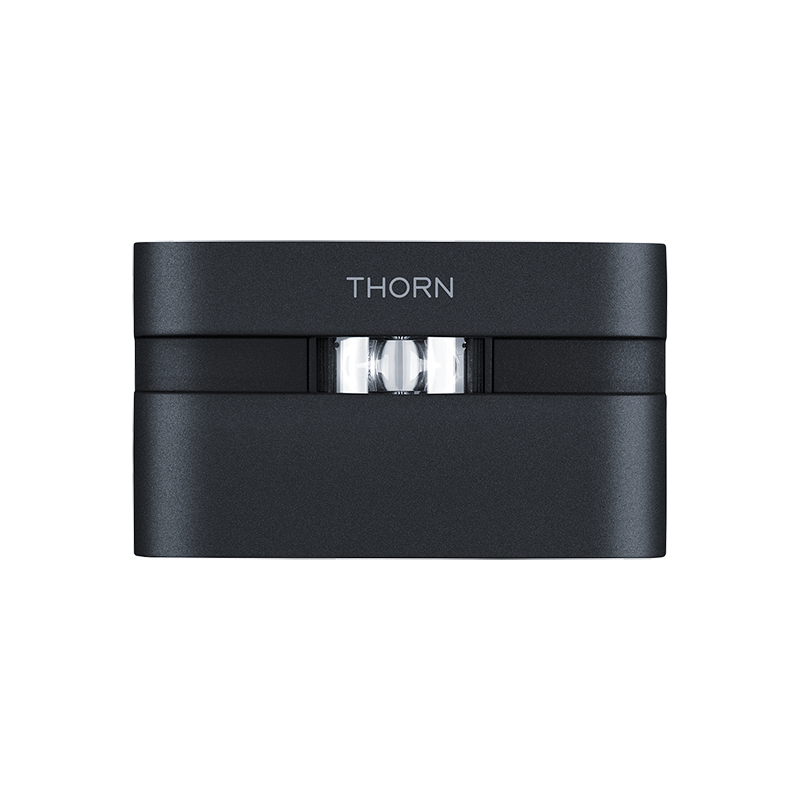

Axyl Etch
AXYL ETCH M WF 1L 827 EB RD BK
Article number: 96701609
EAN number: 9010757155015
wall mounted luminaire 4.7W 171lm 2,700 K
Luminous flux
171 lm
Control
Remote DALI2 driver
Correlated colour temperature
2700 K
Colour
Black
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
G
Luminaire input power
4.7 W
Power factor
0.6
Rated voltage
24 V
Safety Class
SC3
Control
Remote DALI2 driver
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
171 lm
Luminaire efficacy
36 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Beam angle
elliptical beam
Physical Characteristics
Dimensions
150x40x90 mm
Mounting type
Wall surface mounted
Length
150 mm
Width
40 mm
Height
90 mm
Weight
0.73 kg
Colour
Black
Impact strength
IK10
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
171 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Accessories
Axyl Etch
96701609 AXYL ETCH M WF 1L 827 EB RD BK
Axyl Etch, a wall mounted, architectural LED luminaire for decorative facade lighting, with elliptical beam distribution. Class III electrical. Remote DALI2 driver Remote LED driver. IP65, Impact strength: IK10. Housing: Die-cast aluminium, powder coated textured black (close to RAL9005). Working ambient temperature: -20°C to +40°C. Complete with 2700K LED.
Operate with 96700030 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to seven luminaire(s).
Maximum operating current : 1200mA.
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: 150 x 40 x 90 mm
Luminaire luminous flux: 171 lm
Luminaire efficacy: 36 lm/W
Weight: 0.73 kg
