Cesar Stride
CESAR STRIDE M SE 28L 927 RD ANT
Article number: 96701599
EAN number: 9010757154919
wall mounted luminaire 10.1W 355lm 2,700 K
Luminous flux
355 lm
Control
Remote DALI2 driver
Correlated colour temperature
2700 K
Colour
Anthracite
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
C
Luminaire input power
10.1 W
Rated voltage
24 V
Safety Class
SC3
Control
Remote DALI2 driver
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
355 lm
Luminaire efficacy
35 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
asymmetrical
Physical Characteristics
Dimensions
Ø[220]x[30] mm
Mounting type
Wall surface mounted
Length
220 mm
Width
30 mm
Height
220 mm
Weight
1.245 kg
Colour
Anthracite
Impact strength
IK08
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
355 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Accessories
Cesar Stride
96701599 CESAR STRIDE M SE 28L 927 RD ANT

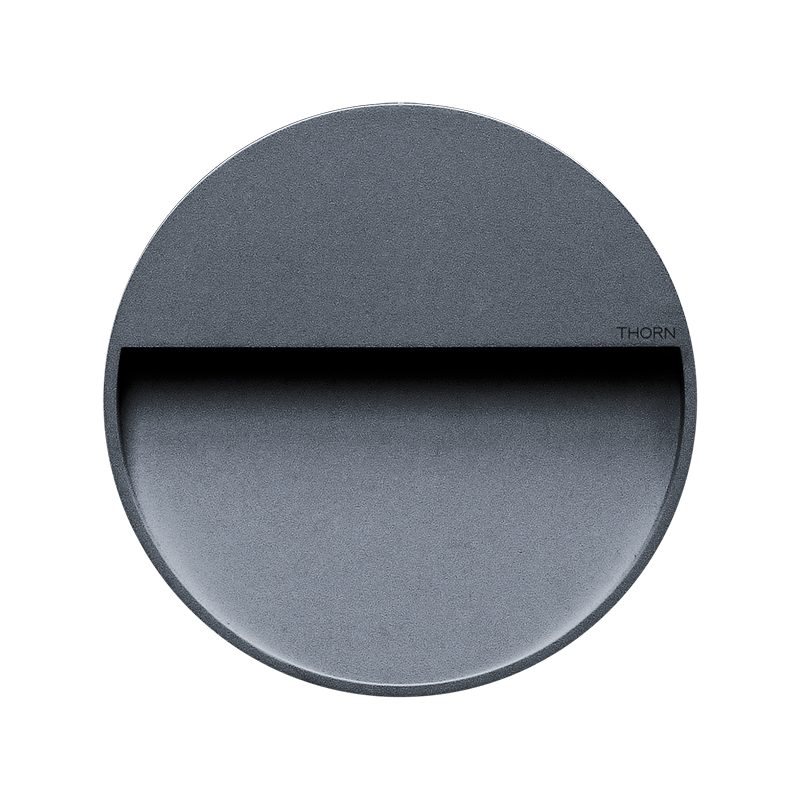

Cesar Stride a wall mounted, architectural LED luminaire for decorative facade lighting, asymmetrical distribution.. Remote DALI2 driver LED driver. Class I electrical IP65, Impact strength: IK08. Housing: Die-cast aluminium, powder coated anthracite. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED.
Operate with 96700028 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to two luminaire(s).
Maximum operating current : 700mA.
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: Ø220 x 30 mm
Luminaire luminous flux: 355 lm
Luminaire efficacy: 35 lm/W
Weight: 1.25 kg
