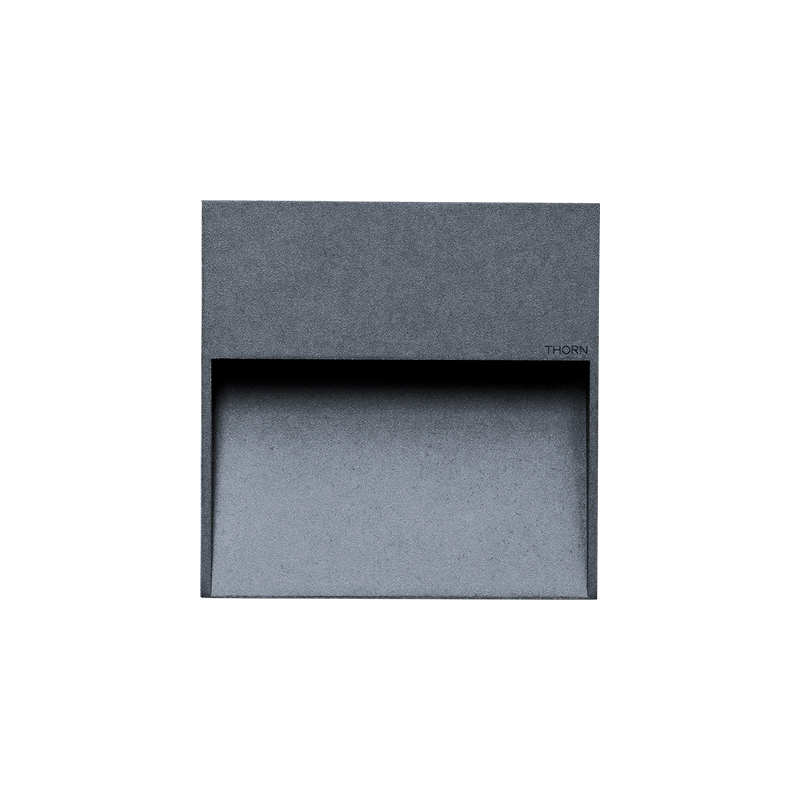

Axyl Stride, Square (M size)
AXYL STRIDE M SE 28L 927 A/S RD ANT
Article number: 96701587
EAN number: 9010757154797
wall mounted luminaire 10.1W 362lm 2,700 K
Luminous flux
362 lm
Control
Remote DALI2 driver
Correlated colour temperature
2700 K
Colour
Anthracite
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
C
Luminaire input power
10.1 W
Power factor
0.84
Rated voltage
24 V
Safety Class
SC3
Control
Remote DALI2 driver
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
362 lm
Luminaire efficacy
36 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
asymmetrical
Physical Characteristics
Dimensions
200x32x200 mm
Mounting type
Wall surface mounted
Length
200 mm
Width
32 mm
Height
200 mm
Weight
1.363 kg
Colour
Anthracite
Impact strength
IK08
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
362 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Accessories
Axyl Stride, Square (M size)
96701587 AXYL STRIDE M SE 28L 927 A/S RD ANT
Axyl Stride, a wall mounted, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class III electrical. Remote DALI2 driver Remote LED driver. 700mA IP65, Impact strength: IK08. Housing: Die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED 700mA.
Operate with 96700028 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to two luminaire(s).
Maximum operating current : 700mA.
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: 200 x 32 x 200 mm
Luminaire luminous flux: 362 lm
Luminaire efficacy: 36 lm/W
Weight: 1.36 kg
