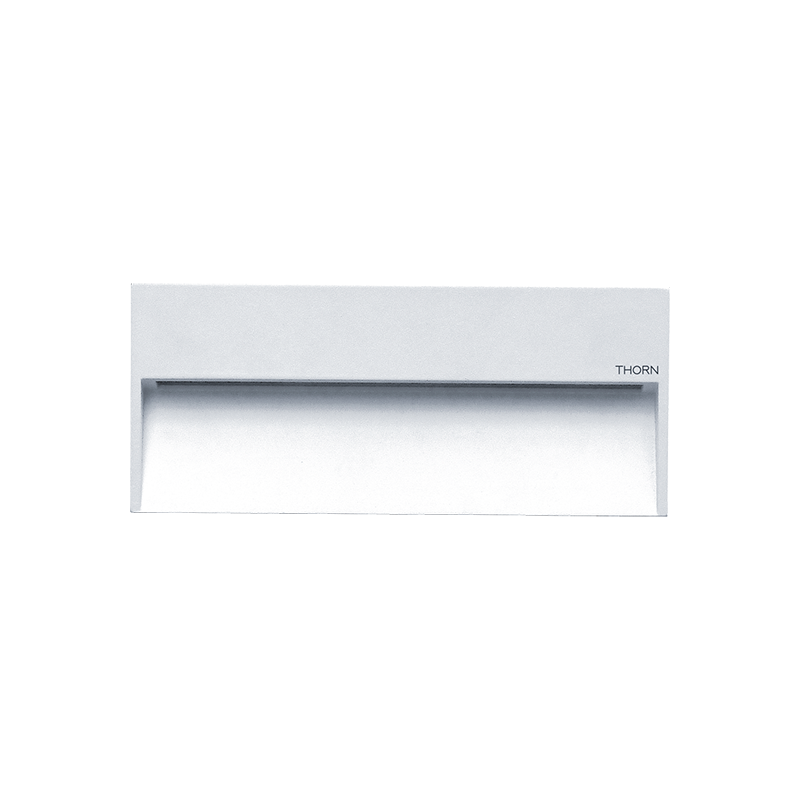

Axyl Stride, Rectangle (L size)
AXYL STRIDE L SE 28L 927 A/S RD WH
Article number: 96701572
EAN number: 9010757154643
wall mounted luminaire 13.1W 399lm 2,700 K
Luminous flux
399 lm
Control
Remote DALI2 driver
Correlated colour temperature
2700 K
Colour
White
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
D
Luminaire input power
13.1 W
Power factor
0.799
Rated voltage
24 V
Safety Class
SC3
Control
Remote DALI2 driver
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
399 lm
Luminaire efficacy
30 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
asymmetrical
Physical Characteristics
Dimensions
270x33x115 mm
Mounting type
Wall surface mounted
Length
270 mm
Width
33 mm
Height
115 mm
Weight
1.319 kg
Colour
White
Impact strength
IK08
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
399 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Accessories
Axyl Stride, Rectangle (L size)
96701572 AXYL STRIDE L SE 28L 927 A/S RD WH
Axyl Stride, a wall mounted, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class III electrical. Remote DALI2 driver Remote LED driver. IP65, Impact strength: IK08. Housing: Die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +50°C. Complete with 2700K LED.
Operate with 96700028 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to one luminaire(s).
Maximum operating current : 500mA.
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: 270 x 33 x 115 mm
Luminaire luminous flux: 399 lm
Luminaire efficacy: 30 lm/W
Weight: 1.32 kg
