Axyl Glow, large down
AXYL GLOW L DWN 5L930 WB RD WH
Article number: 96701290
EAN number: 9010757151888
wall mounted luminaire 16W 552lm 3,000 K
Luminous flux
552 lm
Control
Remote DALI2 driver
Correlated colour temperature
3000 K
Colour
White
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
E
Luminaire input power
16 W
Power factor
0.95
Rated voltage
24 V
Safety Class
SC3
Control
Remote DALI2 driver
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
552 lm
Luminaire efficacy
35 lm/W
Correlated colour temperature
3000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
wide beam
Physical Characteristics
Dimensions
140x200x72 mm
Mounting type
Wall surface mounted
Length
140 mm
Width
200 mm
Height
72 mm
Weight
2.151 kg
Colour
White
Impact strength
IK06
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
3000 K
Luminous flux
552 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Accessories
Axyl Glow, large down
96701290 AXYL GLOW L DWN 5L930 WB RD WH

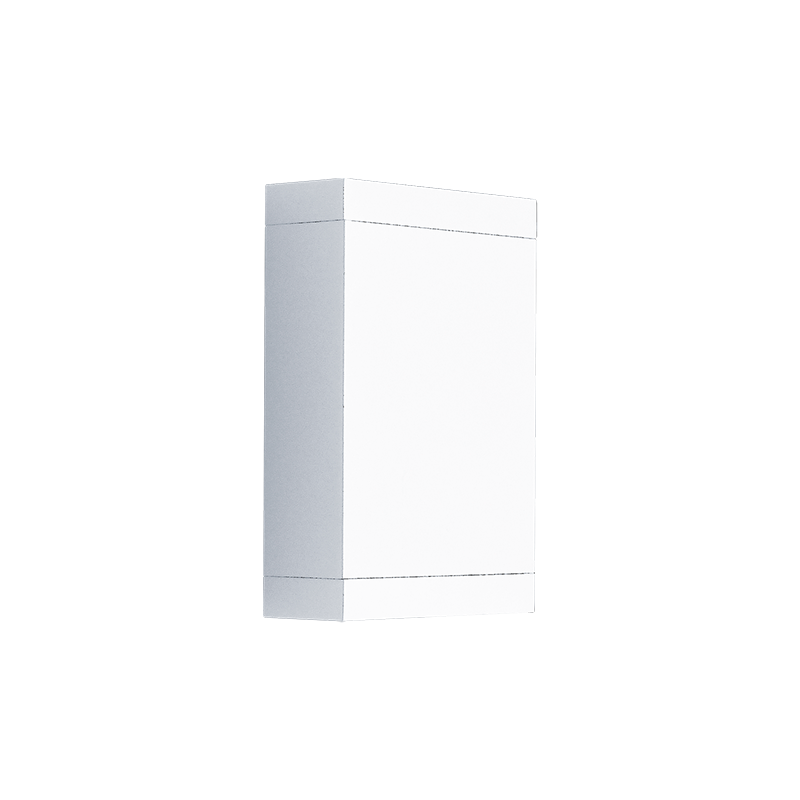

Axyl Glow, a wall mounted, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class III electrical. Remote DALI2 driver Remote LED driver. IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +50°C. Complete with 3000K LED.
Operate with 96700030 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to two luminaire(s).
Maximum operating current : 900mA.
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: 140 x 200 x 72 mm
Luminaire luminous flux: 552 lm
Luminaire efficacy: 35 lm/W
Weight: 2.15 kg
