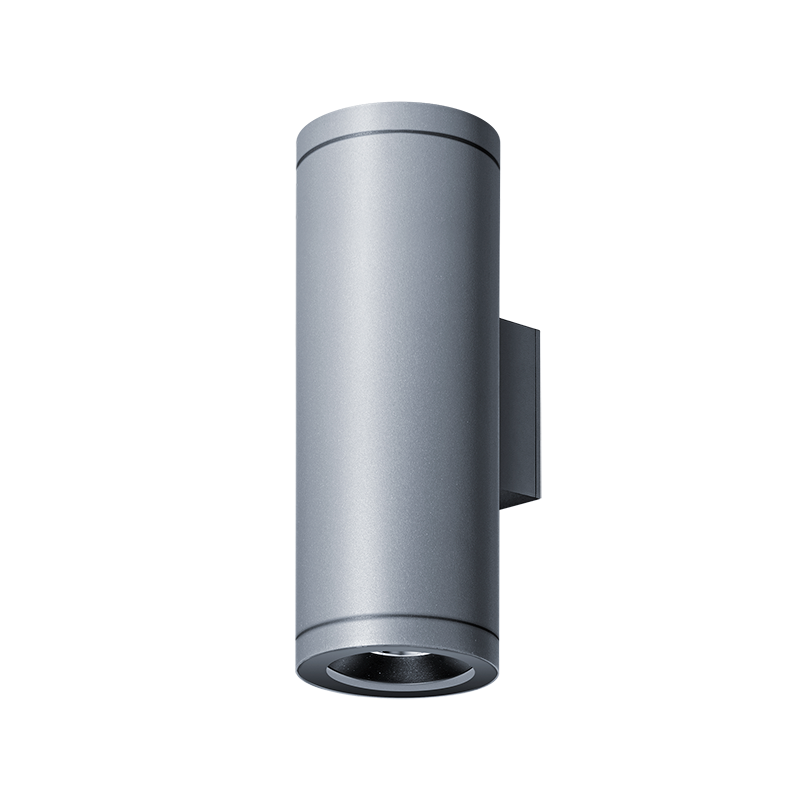

Cesar Amp Wall, small up&down
CESAR AMP S U/D 2L927WB RD GY
Article number: 96701200
EAN number: 9010757150980
wall mounted luminaire 15.3W 860lm 2,700 K
Luminous flux
860 lm
Control
Remote DALI2 driver
Correlated colour temperature
2700 K
Colour
Grey
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
F
Luminaire input power
15.3 W
Rated voltage
24 V
Safety Class
SC3
Control
Remote DALI2 driver
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
860 lm
Luminaire efficacy
56 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
wide beam
Physical Characteristics
Dimensions
Ø[90]x[250] mm
Mounting type
Wall surface mounted
Length
90 mm
Width
250 mm
Height
250 mm
Weight
2.22 kg
Colour
Grey
Impact strength
IK08
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
860 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Accessories
Cesar Amp Wall, small up&down
96701200 CESAR AMP S U/D 2L927WB RD GY
Cesar Amp Wall a wall mounted, architectural LED luminaire for decorative facade lighting, wide beam distribution.. Remote DALI2 driver LED driver. Class III electrical IP65, Impact strength: IK08. Housing: Die-cast aluminium, powder coated grey. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED.
Operate with 96700028 DALI2 Remote Driver (to be ordered separately).
Driver capable of supplying up to one luminaire(s).
Maximum operating current : 700mA.
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: Ø90 x 250 mm
Luminaire luminous flux: 860 lm
Luminaire efficacy: 56 lm/W
Weight: 2.22 kg
