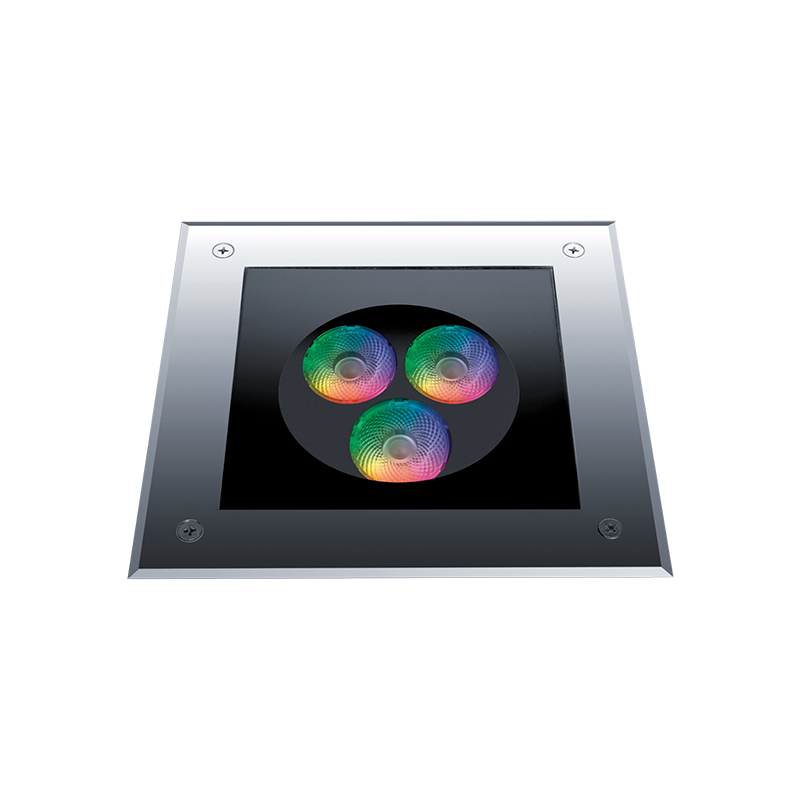

Axyl Opera, RGBW versions
AXYL OPERA L WO 3L RGBW WB PWM SS
Article number: 96701171
EAN number: 9010757145733
floor recessed luminaire 15W 467lm
Luminous flux
467 lm
Control
fixed output control gear
Colour
Steel
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 15 working days
Technical Data
Electrical Properties
Luminaire input power
15 W
Rated voltage
220 - 240 V
Safety Class
SC3
Control
fixed output control gear
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
467 lm
Luminaire efficacy
31 lm/W
Chromaticity tolerance (initial MacAdam)
3
Light Distribution
STD - standard
Beam angle
wide beam
Physical Characteristics
Dimensions
200x200x240 mm
Mounting type
Floor Recessed
Length
200 mm
Width
200 mm
Height
240 mm
Weight
3.99 kg
Colour
Steel
Impact strength
IK09
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Luminous flux
467 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Accessories
Axyl Opera, RGBW versions
96701171 AXYL OPERA L WO 3L RGBW WB PWM SS
Axyl Opera, RGBW versions, a floor recessed, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class III electrical. fixed output control gear LED driver. IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted textured stainless steel. Working ambient temperature: -20°C to +40°C..
Operate with :
96700031 DALI/DMX Remote Driver (to be ordered separately). Up to three luminaire(s).
96700032 DALI/DMX Remote Driver (to be ordered separately). Up to five luminaire(s).
96700033 DALI/DMX Remote Driver (to be ordered separately). Up to twenty luminaire(s).
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: 200 x 200 x 240 mm
Luminaire luminous flux: 467 lm
Luminaire efficacy: 31 lm/W
Weight: 3.99 kg
