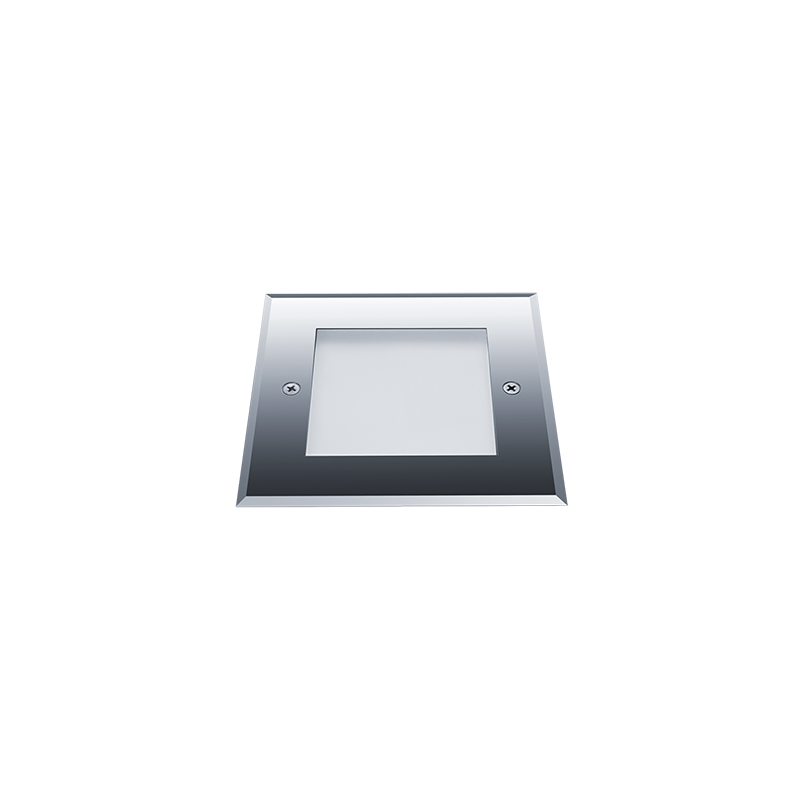

Axyl Opera, medium size wide beam (frosted)
AXYL OPERA M WO 2L 927 WB HF SS
Article number: 96701125
EAN number: 9010757145276
floor recessed luminaire 3W 33lm 2,700 K
Luminous flux
33 lm
Control
Fixed output
Correlated colour temperature
2700 K
Colour
Steel
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
F
Luminaire input power
3 W
Power factor
0.47
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Fixed output
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
33 lm
Luminaire efficacy
11 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
wide beam
Physical Characteristics
Dimensions
130x130x135 mm
Mounting type
Floor Recessed
Length
130 mm
Width
130 mm
Height
135 mm
Weight
1.536 kg
Colour
Steel
Impact strength
IK09
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
33 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Axyl Opera, medium size wide beam (frosted)
96701125 AXYL OPERA M WO 2L 927 WB HF SS
Axyl Opera, a floor recessed, LED luminaire for decorative facade lighting, with wide beam distribution. Class I electrical.. Fixed output LED driver. IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted textured stainless steel. Working ambient temperature: -20°C to +45°C. Complete with 2700K LED..
Dimensions: 130 x 130 x 135 mm
Luminaire luminous flux: 33 lm
Luminaire efficacy: 11 lm/W
Weight: 1.69 kg
