Axyl Opera, extra-large size wide beam (frosted)
AXYL OPERA XL WO 30L 940 WB HFX WHI
Article number: 96701102
EAN number: 9010757145047
floor recessed luminaire 11.1W 319lm 4,000 K
Luminous flux
319 lm
Control
Dimming DALI
Correlated colour temperature
4000 K
Colour
White
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
E
Luminaire input power
11.1 W
Power factor
0.95
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Dimming DALI
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
319 lm
Luminaire efficacy
29 lm/W
Correlated colour temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
wide beam
Physical Characteristics
Dimensions
275x275x245 mm
Mounting type
Floor Recessed
Length
275 mm
Width
275 mm
Height
245 mm
Weight
6.165 kg
Colour
White
Impact strength
IK09
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
4000 K
Luminous flux
319 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads

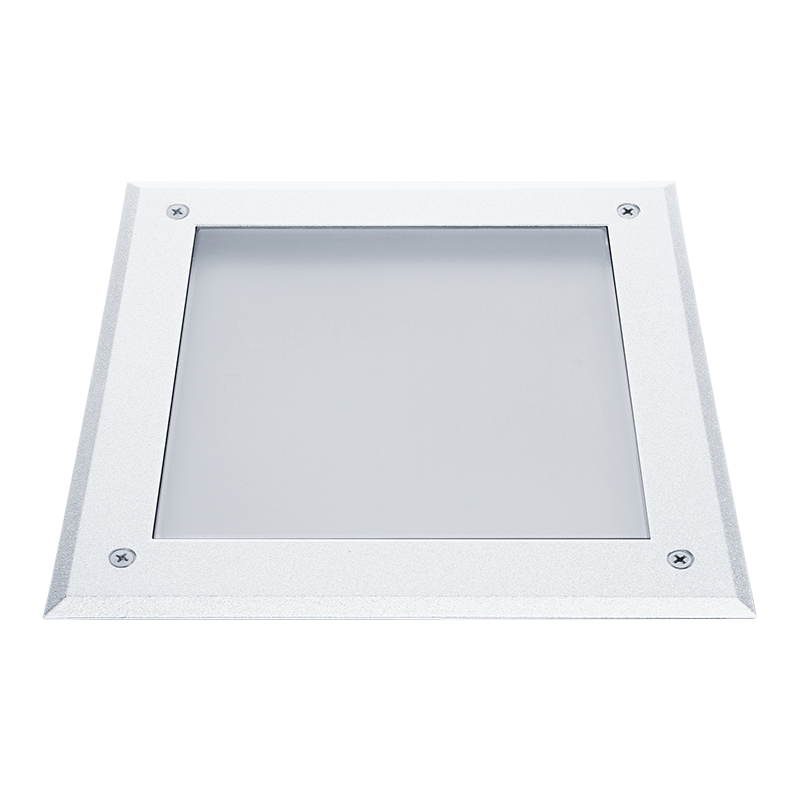

Axyl Opera, extra-large size wide beam (frosted)
96701102 AXYL OPERA XL WO 30L 940 WB HFX WHI
Axyl Opera, a floor recessed, LED luminaire for decorative facade lighting, with wide beam distribution. Class I electrical.. DALI-2 dimmable LED driver. IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +37°C. Complete with 4000K LED..
Dimensions: 275 x 275 x 245 mm
Luminaire luminous flux: 319 lm
Luminaire efficacy: 29 lm/W
Weight: 6.17 kg
