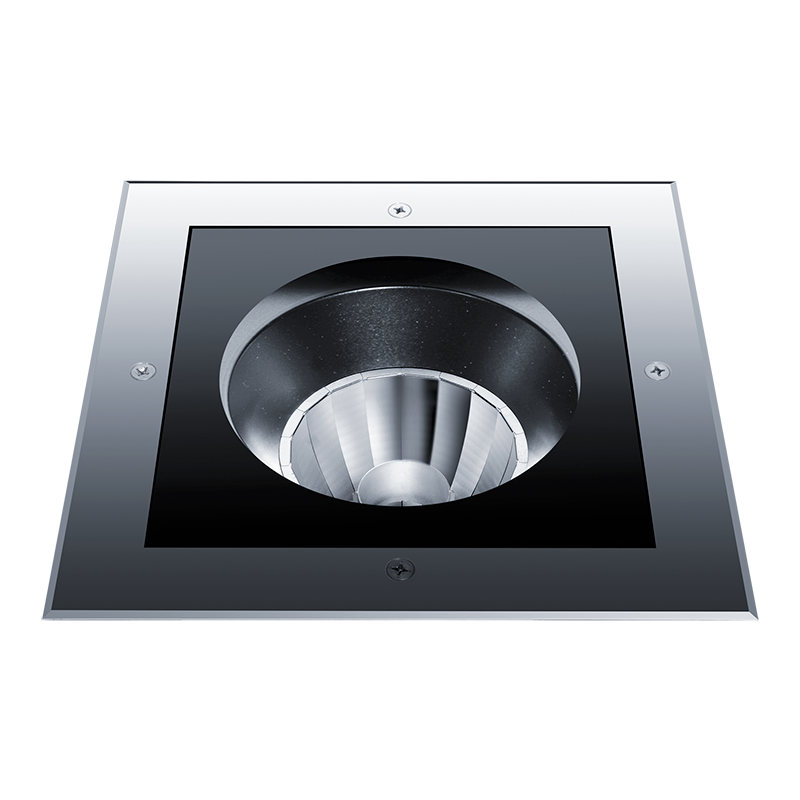

Axyl Opera, extra-large size medium beam
AXYL OPERA XL WO 1L 940 MB HFX SS
Article number: 96701056
EAN number: 9010757144583
floor recessed luminaire 33.2W 2787lm 4,000 K
Luminous flux
2787 lm
Control
Dimming DALI
Correlated colour temperature
4000 K
Colour
Steel
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
E
Luminaire input power
33.2 W
Power factor
0.987
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Dimming DALI
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
2787 lm
Luminaire efficacy
84 lm/W
Correlated colour temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
medium beam
Physical Characteristics
Dimensions
275x275x245 mm
Mounting type
Floor Recessed
Length
275 mm
Width
275 mm
Height
245 mm
Weight
6.152 kg
Colour
Steel
Impact strength
IK09
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
4000 K
Luminous flux
2787 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Axyl Opera, extra-large size medium beam
96701056 AXYL OPERA XL WO 1L 940 MB HFX SS
Axyl Opera, a floor recessed, LED luminaire for decorative facade lighting, with medium beam distribution. Class I electrical.. DALI-2 dimmable LED driver. IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted textured stainless steel. Working ambient temperature: -20°C to +40°C. Complete with 4000K LED..
Dimensions: 275 x 275 x 245 mm
Luminaire luminous flux: 2787 lm
Luminaire efficacy: 84 lm/W
Weight: 6.15 kg
