Cesar Opera, walk over RGBW
CESAR OPERA XL WO 5L RGBW 930 MB PWM SS
Article number: 96700997
EAN number: 9010757143999
floor recessed luminaire 30.4W 1122lm
Luminous flux
1122 lm
Control
Fixed output
Colour
Steel
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 15 working days
Technical Data
Electrical Properties
Luminaire input power
30.4 W
Rated voltage
220 - 240 V
Safety Class
SC3
Control
Fixed output
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
1122 lm
Luminaire efficacy
37 lm/W
Chromaticity tolerance (initial MacAdam)
3
Light Distribution
STD - standard
Beam angle
medium beam
Physical Characteristics
Dimensions
Ø[280]x[245] mm
Mounting type
Floor Recessed
Length
280 mm
Width
280 mm
Height
245 mm
Weight
7.006 kg
Colour
Steel
Impact strength
IK09
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
overviewFeatures_outdoor
Luminous flux
1122 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Accessories

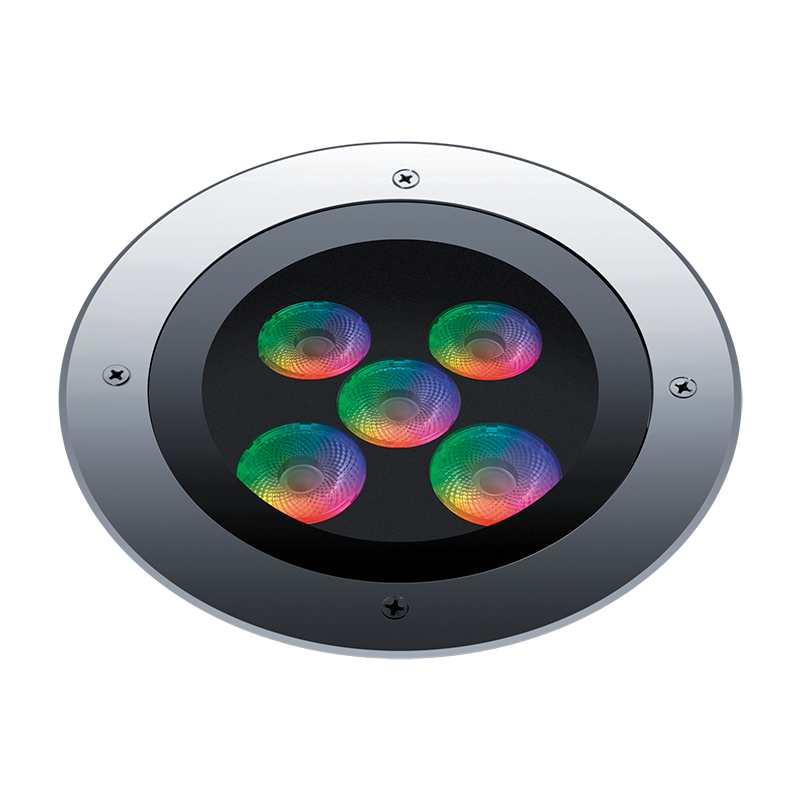

Cesar Opera, walk over RGBW
96700997 CESAR OPERA XL WO 5L RGBW 930 MB PWM SS
Cesar Opera, walk over RGBW, a floor recessed, architectural LED luminaire for decorative facade lighting, with medium beam distribution. Class III electrical. Fixed output LED driver. IP67, Impact strength: IK09. Housing: Die-cast aluminium, unpainted textured stainless steel. Working ambient temperature: -20°C to +37°C. Complete with RGBW LEDs.
Operate with :
96700031 DALI/DMX Remote Driver (to be ordered separately). Up to two luminaire(s).
96700032 DALI/DMX Remote Driver (to be ordered separately). Up to three luminaire(s).
96700033 DALI/DMX Remote Driver (to be ordered separately). Up to twelve luminaire(s).
Maximum distance of 10m between luminaire(s) and driver.
Dimensions: Ø280 x 245 mm
Luminaire luminous flux: 1122 lm
Luminaire efficacy: 37 lm/W
Weight: 7.01 kg
