Cesar Opera, drive over medium
CESAR OPERA M DO 4L 927 AS HF SS
Article number: 96700952
EAN number: 9010757143548
floor recessed luminaire D237 7.1W 449lm 2,700 K
Luminous flux
449 lm
Control
Fixed output
Correlated colour temperature
2700 K
Colour
Steel
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
F
Luminaire input power
7.1 W
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Fixed output
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
449 lm
Luminaire efficacy
63 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
asymmetrical
Physical Characteristics
Dimensions
Ø[237]x[175] mm
Mounting type
Floor Recessed
Length
237 mm
Width
237 mm
Height
175 mm
Weight
2.889 kg
Colour
Steel
Impact strength
IK10
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
449 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Cesar Opera, drive over medium
96700952 CESAR OPERA M DO 4L 927 AS HF SS

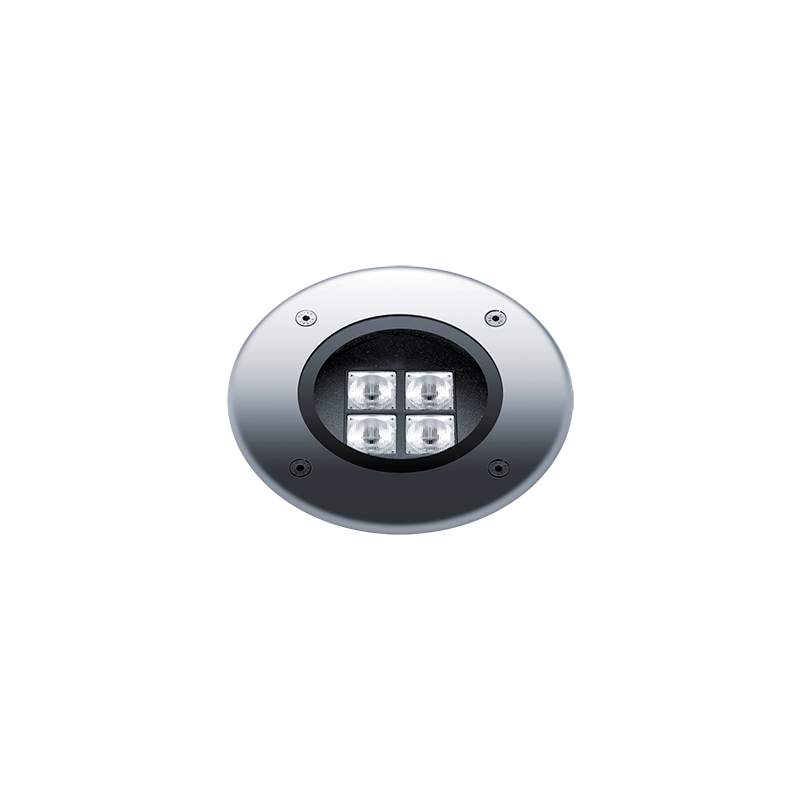

Cesar Opera, drive over a floor recessed, LED luminaire for decorative facade lighting, asymmetrical distribution.. Fixed output LED driver. Class I electrical, IP67, Impact strength: IK10. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED. Class I electrical.
Dimensions: Ø237 x 175 mm
Luminaire luminous flux: 449 lm
Luminaire efficacy: 63 lm/W
Weight: 2.89 kg
