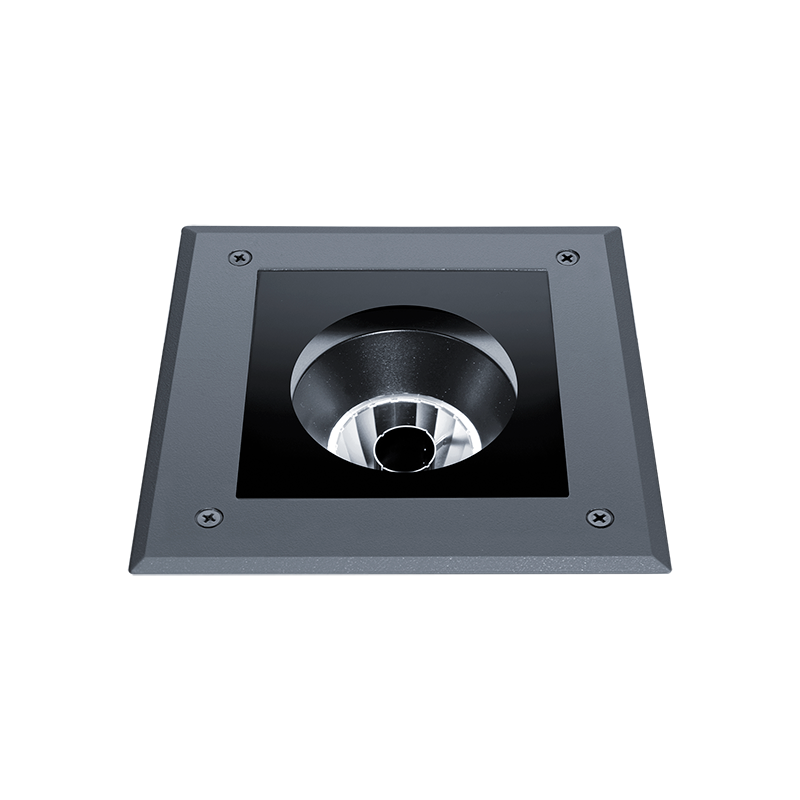

Axyl Opera, large size medium beam
AXYL OPERA L WO 1L 940 MB HFX ANT
Article number: 96700941
EAN number: 9010757143432
floor recessed luminaire 15.2W 1026lm 4,000 K
Luminous flux
1026 lm
Control
Dimming DALI
Correlated colour temperature
4000 K
Colour
Anthracite
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
E
Luminaire input power
15.2 W
Power factor
0.9
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Dimming DALI
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
1026 lm
Luminaire efficacy
67 lm/W
Correlated colour temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
medium beam
Physical Characteristics
Dimensions
210x210x240 mm
Mounting type
Floor Recessed
Length
210 mm
Width
210 mm
Height
240 mm
Weight
3.429 kg
Colour
Anthracite
Impact strength
IK09
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
4000 K
Luminous flux
1026 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Axyl Opera, large size medium beam
96700941 AXYL OPERA L WO 1L 940 MB HFX ANT
Axyl Opera, a floor recessed, LED luminaire for decorative facade lighting, with medium beam distribution. Class I electrical.. DALI-2 dimmable LED driver. IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured anthracite. Working ambient temperature: -20°C to +45°C. Complete with 4000K LED..
Dimensions: 210 x 210 x 240 mm
Luminaire luminous flux: 1026 lm
Luminaire efficacy: 67 lm/W
Weight: 3.43 kg
