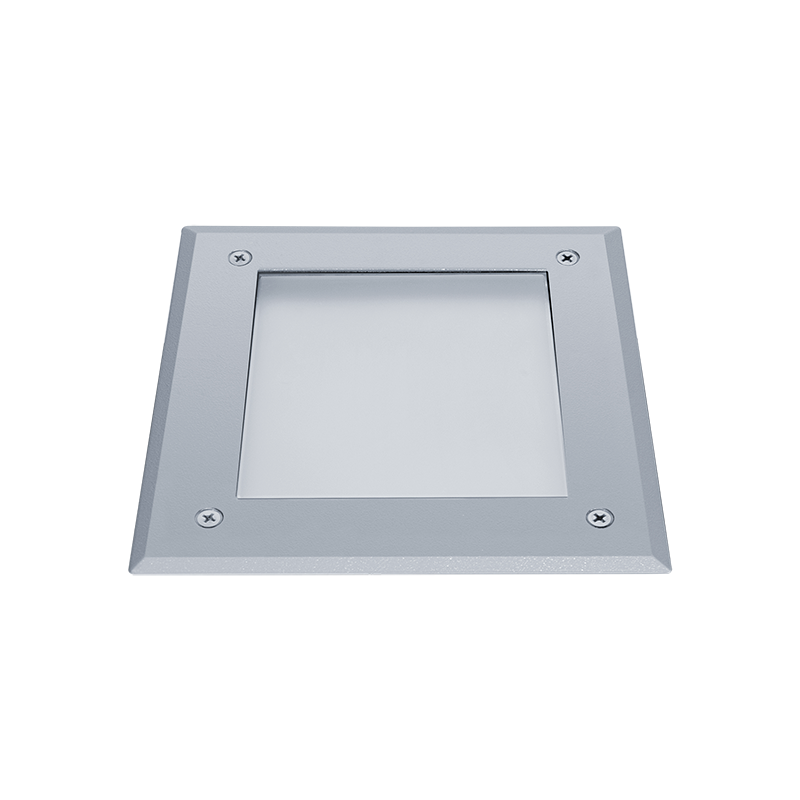

Axyl Opera, large size wide beam (frosted)
AXYL OPERA L WO 24L 927 WB HFX GY
Article number: 96700864
EAN number: 9010757142664
floor recessed luminaire 9.8W 57lm 2,700 K
Luminous flux
57 lm
Control
Dimming DALI
Correlated colour temperature
2700 K
Colour
Grey
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
F
Luminaire input power
9.8 W
Power factor
0.93
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Dimming DALI
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
57 lm
Luminaire efficacy
6 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
wide beam
Physical Characteristics
Dimensions
210x210x240 mm
Mounting type
Floor Recessed
Length
210 mm
Width
210 mm
Height
240 mm
Weight
3.537 kg
Colour
Grey
Impact strength
IK09
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
57 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Axyl Opera, large size wide beam (frosted)
96700864 AXYL OPERA L WO 24L 927 WB HFX GY
Axyl Opera, a floor recessed, LED luminaire for decorative facade lighting, with wide beam distribution. Class I electrical.. DALI-2 dimmable LED driver. IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured grey (RAL9006). Working ambient temperature: -20°C to +45°C. Complete with 2700K LED..
Dimensions: 210 x 210 x 240 mm
Luminaire luminous flux: 57 lm
Luminaire efficacy: 6 lm/W
Weight: 3.54 kg
