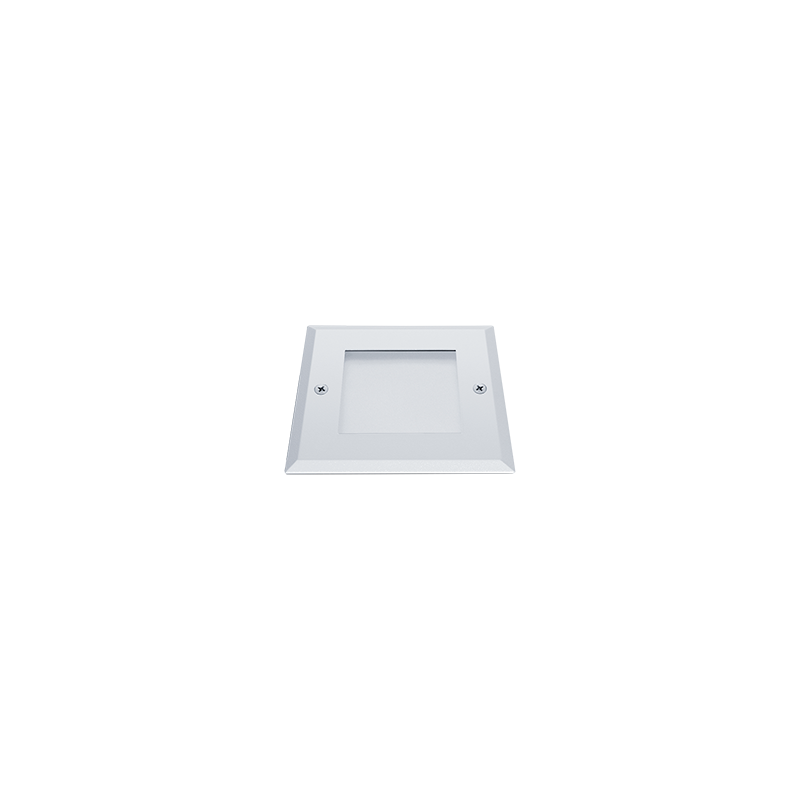

Axyl Opera, small size wide beam (frosted)
AXYL OPERA S WO 1L 927 WB HF WH
Article number: 96700754
EAN number: 9010757141568
floor recessed luminaire 2.2W 19lm 2,700 K
Luminous flux
19 lm
Control
Fixed output
Correlated colour temperature
2700 K
Colour
White
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
F
Luminaire input power
2.2 W
Power factor
0.44
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Fixed output
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
19 lm
Luminaire efficacy
9 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
wide beam
Physical Characteristics
Dimensions
85x85x125 mm
Mounting type
Floor Recessed
Length
85 mm
Width
85 mm
Height
125 mm
Weight
0.672 kg
Colour
White
Impact strength
IK09
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
19 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Axyl Opera, small size wide beam (frosted)
96700754 AXYL OPERA S WO 1L 927 WB HF WH
Axyl Opera, a floor recessed, LED luminaire for decorative facade lighting, with wide beam distribution. Class I electrical.. Fixed output LED driver. IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +50°C. Complete with 2700K LED..
Dimensions: 85 x 85 x 125 mm
Luminaire luminous flux: 19 lm
Luminaire efficacy: 9 lm/W
Weight: 0.67 kg
