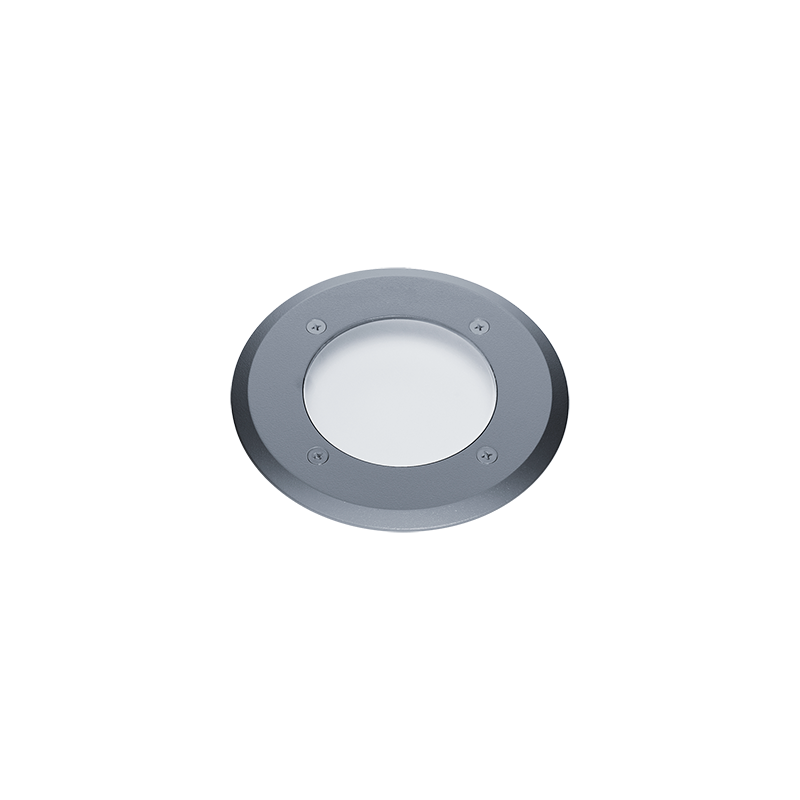

Cesar Opera, walk over medium size wide beam (frosted)
CESAR OPERA M WO 1L 927 WB HF ANT
Article number: 96700709
EAN number: 9010757141117
floor recessed luminaire 3W 30lm 2,700 K
Luminous flux
30 lm
Control
Fixed output
Correlated colour temperature
2700 K
Colour
Anthracite
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
F
Luminaire input power
3 W
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Fixed output
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
30 lm
Luminaire efficacy
10 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
wide beam
Physical Characteristics
Dimensions
Ø[165]x[135] mm
Mounting type
Floor Recessed
Length
165 mm
Width
165 mm
Height
135 mm
Weight
1.234 kg
Colour
Anthracite
Impact strength
IK09
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
30 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Cesar Opera, walk over medium size wide beam (frosted)
96700709 CESAR OPERA M WO 1L 927 WB HF ANT
Cesar Opera, walk over a floor recessed, LED luminaire for decorative facade lighting, wide beam distribution.. Fixed output LED driver. Class I electrical, IP67, Impact strength: IK09. Housing: Die-cast aluminium, powder coated anthracite. Working ambient temperature: -20°C to +45°C. Complete with 2700K LED. Class I electrical.
Dimensions: Ø165 x 135 mm
Luminaire luminous flux: 30 lm
Luminaire efficacy: 10 lm/W
Weight: 1.23 kg
