Axyl Greet B M, height 870
AXYL GREETB M H870 SE 56L 927 AS HFX WH
Article number: 96700657
EAN number: 9010757140592
11.3W 761lm 2,700 K
Luminous flux
761 lm
Control
Dimming DALI
Correlated colour temperature
2700 K
Colour
White
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
C
Luminaire input power
11.3 W
Power factor
0.95
Rated voltage
220 - 240 V
Safety Class
SC2
Control
Dimming DALI
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
761 lm
Luminaire efficacy
67 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
asymmetrical
Physical Characteristics
Dimensions
290x85x870 mm
Mounting type
Free-standing luminaire
Length
290 mm
Width
85 mm
Height
870 mm
Weight
8.868 kg
Colour
White
Impact strength
IK06
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
761 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Accessories

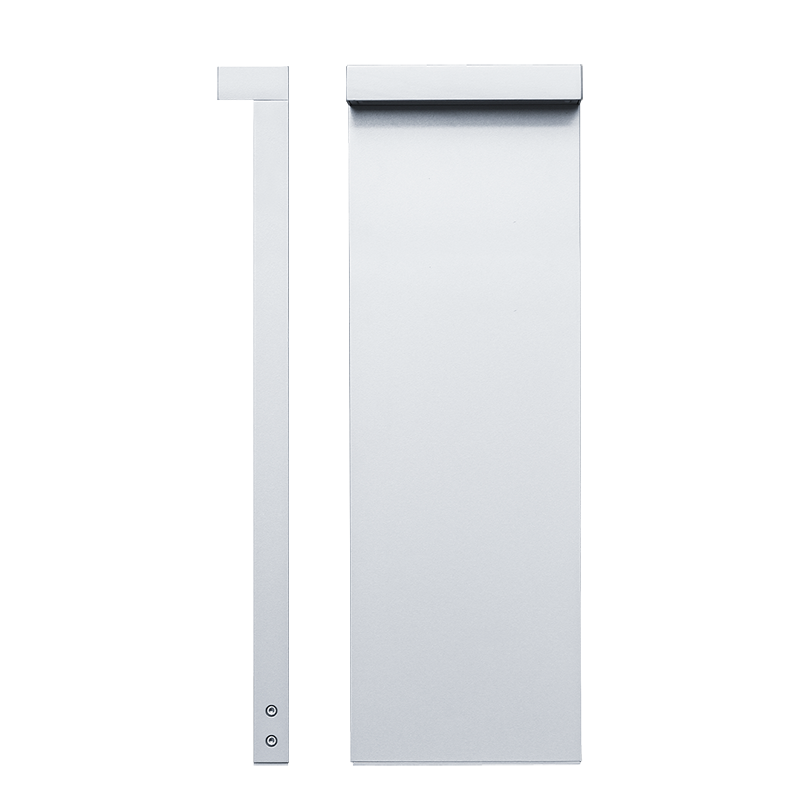

Axyl Greet B M, height 870
96700657 AXYL GREETB M H870 SE 56L 927 AS HFX WH
Axyl Greet B M, height 870, a free-standing, decorative LED bollard with asymmetrical distribution. Class II electrical.. DALI-2 dimmable LED driver. , IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured white (close to RAL9016). Working ambient temperature: -20°C to +50°C. Complete with 2700K LED..
Dimensions: 290 x 85 x 870 mm
Luminaire luminous flux: 761 lm
Luminaire efficacy: 67 lm/W
Weight: 8.87 kg
