Axyl Etch
AXYL ETCH M WF 1L 827 EB HF GY
Article number: 96700575
EAN number: 9010757139770
wall mounted luminaire 4.7W 171lm 2,700 K
Luminous flux
171 lm
Control
Fixed output
Correlated colour temperature
2700 K
Colour
Grey
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
G
Luminaire input power
4.7 W
Power factor
0.6
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Fixed output
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
171 lm
Luminaire efficacy
36 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Beam angle
elliptical beam
Physical Characteristics
Dimensions
150x40x90 mm
Mounting type
Wall surface mounted
Length
150 mm
Width
40 mm
Height
90 mm
Weight
0.73 kg
Colour
Grey
Impact strength
IK10
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
171 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads

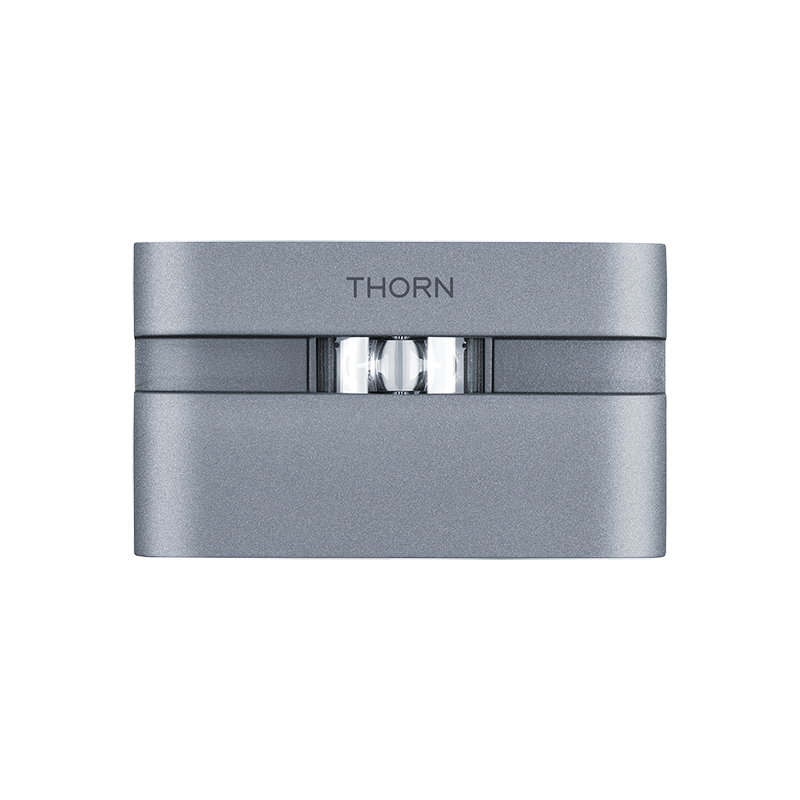

Axyl Etch
96700575 AXYL ETCH M WF 1L 827 EB HF GY
Axyl Etch, a wall mounted, architectural LED luminaire for decorative facade lighting, with elliptical beam distribution. Class I electrical.. Fixed output LED driver. IP65, Impact strength: IK10. Housing: Die-cast aluminium, powder coated textured grey (RAL9006). Working ambient temperature: -20°C to +40°C. Complete with 2700K LED..
Dimensions: 150 x 40 x 90 mm
Luminaire luminous flux: 171 lm
Luminaire efficacy: 36 lm/W
Weight: 0.73 kg
