Axyl Stride, Square (M size)
AXYL STRIDE M SE 28L 927 A/S HF BK
Article number: 96700547
EAN number: 9010757139497
wall mounted luminaire 10.1W 362lm 2,700 K
Luminous flux
362 lm
Control
Fixed output
Correlated colour temperature
2700 K
Colour
Black
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
C
Luminaire input power
10.1 W
Power factor
0.84
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Fixed output
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
362 lm
Luminaire efficacy
36 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
asymmetrical
Physical Characteristics
Dimensions
200x32x200 mm
Mounting type
Wall surface mounted
Length
200 mm
Width
32 mm
Height
200 mm
Weight
1.363 kg
Colour
Black
Impact strength
IK08
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
362 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads
Accessories

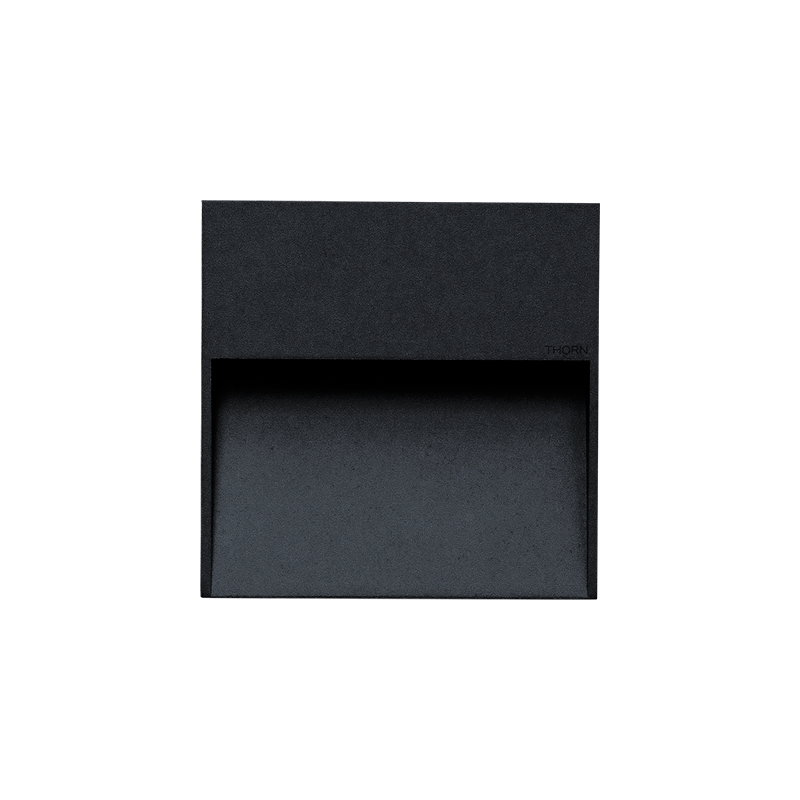

Axyl Stride, Square (M size)
96700547 AXYL STRIDE M SE 28L 927 A/S HF BK
Axyl Stride, a wall mounted, architectural LED luminaire for decorative facade lighting, with asymmetrical distribution. Class I electrical.. Fixed output LED driver. IP65, Impact strength: IK08. Housing: Die-cast aluminium, powder coated textured black (close to RAL9005). Working ambient temperature: -20°C to +40°C. Complete with 2700K LED..
Dimensions: 200 x 32 x 200 mm
Luminaire luminous flux: 362 lm
Luminaire efficacy: 36 lm/W
Weight: 1.36 kg
