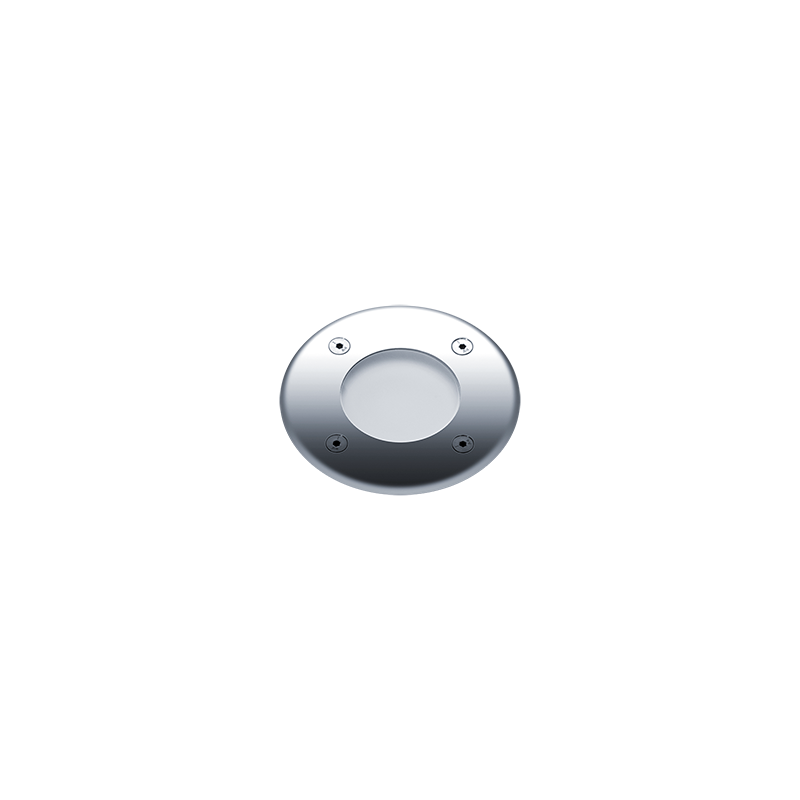

Cesar Opera, drive over small
CESAR OPERA S DO 1L927 WB HF SS
Article number: 96700403
EAN number: 9010757138056
floor recessed luminaire D187 2.2W 19lm 2,700 K
Luminous flux
19 lm
Control
Fixed output
Correlated colour temperature
2700 K
Colour
Steel
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
F
Luminaire input power
2.2 W
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Fixed output
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
19 lm
Luminaire efficacy
9 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
wide beam
Physical Characteristics
Dimensions
Ø[187]x[175] mm
Mounting type
Floor Recessed
Length
187 mm
Width
187 mm
Height
175 mm
Weight
1.738 kg
Colour
Steel
Impact strength
IK10
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
19 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Cesar Opera, drive over small
96700403 CESAR OPERA S DO 1L927 WB HF SS
Cesar Opera, drive over a floor recessed, LED luminaire for decorative facade lighting, wide beam distribution.. Fixed output LED driver. Class I electrical, IP67, Impact strength: IK10. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +50°C. Complete with 2700K LED. Class I electrical.
Dimensions: Ø187 x 175 mm
Luminaire luminous flux: 19 lm
Luminaire efficacy: 9 lm/W
Weight: 1.74 kg
