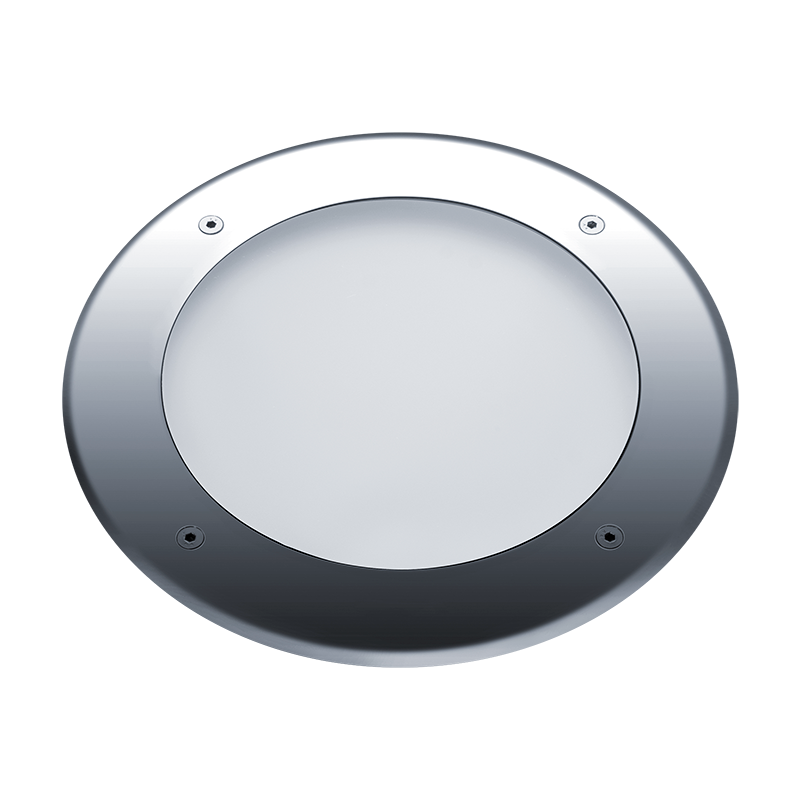

Cesar Opera, drive over extra-large
CESAR OPERA XL DO 1L927 WB HFX SS
Article number: 96700400
EAN number: 9010757138025
floor recessed luminaire D375 11.1W 262lm 2,700 K
Luminous flux
262 lm
Control
Dimming DALI
Correlated colour temperature
2700 K
Colour
Steel
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 15 working days
Technical Data
Electrical Properties
EEC
E
Luminaire input power
11.1 W
Rated voltage
220 - 240 V
Safety Class
SC1
Control
Dimming DALI
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
262 lm
Luminaire efficacy
24 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
wide beam
Physical Characteristics
Dimensions
Ø[375]x[200] mm
Mounting type
Floor Recessed
Length
375 mm
Width
375 mm
Height
200 mm
Weight
9.325 kg
Colour
Steel
Impact strength
IK10
Degree of protection
IP67
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
262 lm
Degree of protection
IP67
Norms and Standards
Certificates
Downloads
Cesar Opera, drive over extra-large
96700400 CESAR OPERA XL DO 1L927 WB HFX SS
Cesar Opera, drive over a floor recessed, LED luminaire for decorative facade lighting, wide beam distribution.. DALI-2 dimmable LED driver. Class I electrical, IP67, Impact strength: IK10. Housing: Die-cast aluminium, unpainted. Working ambient temperature: -20°C to +45°C. Complete with 2700K LED. Class I electrical.
Dimensions: Ø375 x 200 mm
Luminaire luminous flux: 262 lm
Luminaire efficacy: 24 lm/W
Weight: 9.32 kg
