Axyl Glow, small down
AXYL GLOW S DWN1L927 WB HF GY
Article number: 96700144
EAN number: 9010757135468
wall mounted luminaire 4W 90lm 2,700 K
Luminous flux
90 lm
Control
Fixed output
Correlated colour temperature
2700 K
Colour
Grey
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
F
Luminaire input power
4 W
Power factor
0.54
Rated voltage
220 - 240 V
Safety Class
SC2
Control
Fixed output
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
90 lm
Luminaire efficacy
23 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
90
Light Distribution
STD - standard
Beam angle
wide beam
Physical Characteristics
Dimensions
60x200x72 mm
Mounting type
Wall surface mounted
Length
60 mm
Width
200 mm
Height
72 mm
Weight
1.396 kg
Colour
Grey
Impact strength
IK06
Degree of protection
IP65
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L80 70000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
90 lm
Degree of protection
IP65
Norms and Standards
Certificates
Downloads

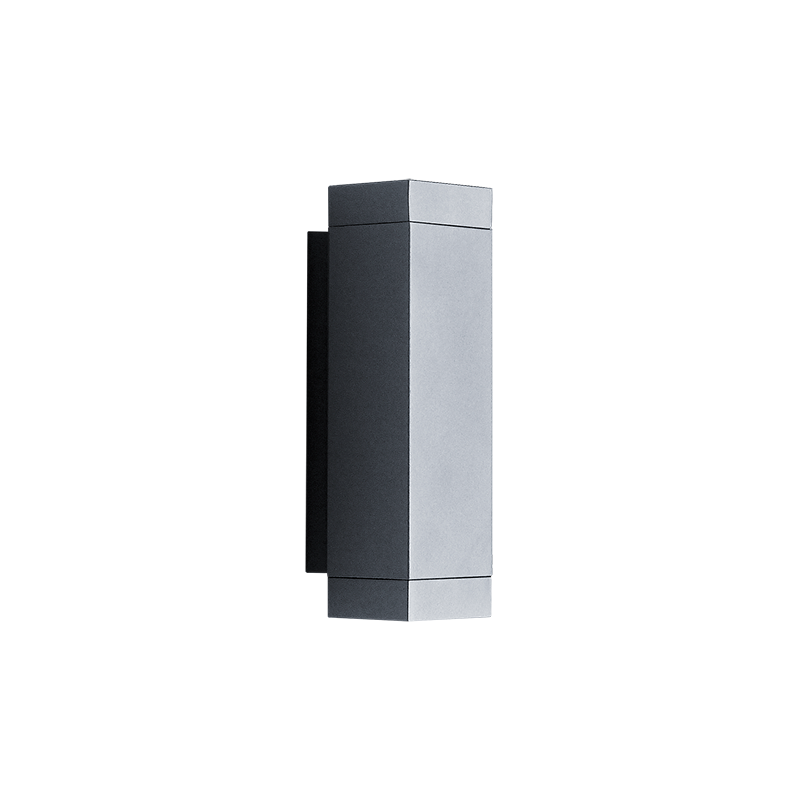

Axyl Glow, small down
96700144 AXYL GLOW S DWN1L927 WB HF GY
Axyl Glow, a wall mounted, architectural LED luminaire for decorative facade lighting, with wide beam distribution. Class II electrical.. Fixed output LED driver. IP65, Impact strength: IK06. Housing: Die-cast aluminium, powder coated textured grey (RAL9006). Working ambient temperature: -20°C to +50°C. Complete with 2700K LED..
Dimensions: 60 x 200 x 72 mm
Luminaire luminous flux: 90 lm
Luminaire efficacy: 23 lm/W
Weight: 1.4 kg
