LE STRT Retrofit Kit
LE STRT Retrofit Kit
LE STRT BASE 12L50-727 NR CL2
Article number: 96684615
EAN number: 3607640767514
Retrofit Kit 20.6W 2397lm 2,700 K
Luminous flux
2397 lm
Control
Dimming DALI
Dimming phase cut-on
Dimming phase cut-off
Correlated colour temperature
2700 K
Technical Data
Electrical Properties
EEC
E
Luminaire input power
20.6 W
Rated voltage
220 - 240 V
Driver
Driver 1: 1 x DRV SO GA-E 50W 1.3A 62V D#OD
Safety Class
SC2
Control
Dimming DALI
Dimming phase cut-on
Dimming phase cut-off
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
2397 lm
Luminaire efficacy
116 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
5
Colour Rendering Index min.
70
Light Distribution
STD - standard
Beam angle
narrow road
Physical Characteristics
Length
294 mm
Width
294 mm
Height
97 mm
Weight
2.327 kg
Impact strength
IK08
Degree of protection
IP66
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L95 100000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
2397 lm
Degree of protection
IP66
Norms and Standards
Certificates
Downloads
LE STRT Retrofit Kit
96684615 LE STRT BASE 12L50-727 NR CL2

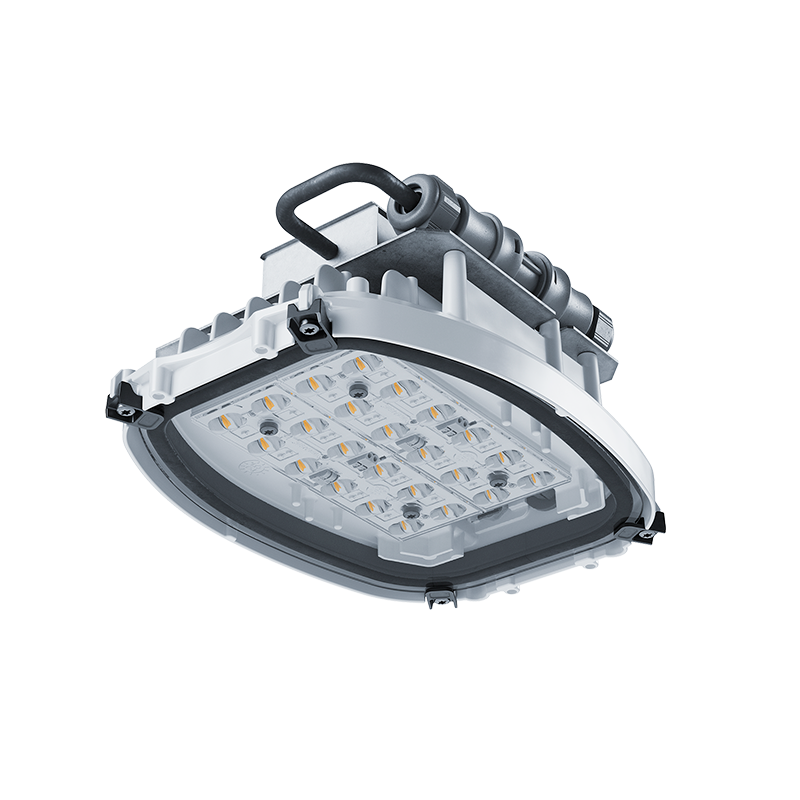

Ready to install LED light engine concept to update or upgrade performances of existing lighting fixtures. 12 LEDs driven at 500mA and narrow road optic. Class II electrical, IP66, Impact strength: IK08. Electronic, dimmable control gear. Housing: Die-cast aluminium with <0,1% of copper to drastically reduce the risk of corrosion. Fitting kit and fixing screws: stainless steel (plate painted in grey for seamless aesthetic integration into existing fixtures). Complete with 2700K LED
Dimensions: Ø294 x 97 mm
Luminaire luminous flux: 2397 lm
Luminaire efficacy: 116 lm/W
Weight: 2.33 kg
