LE STRT Retrofit Kit
LE STRT Retrofit Kit
LE STRT PRE 12L70-727 NR CL2
Article number: 96684610
EAN number: 3607640767460
Retrofit Kit 26.8W 3228lm 2,700 K
Luminous flux
3228 lm
Control
Dimming DALI
Dimming phase cut-on
Dimming phase cut-off
Correlated colour temperature
2700 K
Technical Data
Electrical Properties
EEC
E
Luminaire input power
26.8 W
Rated voltage
220 - 240 V
Driver
Driver 1: 1 x LCO 40/200-1050/64 pD+ NF C PRE3
Safety Class
SC2
Control
Dimming DALI
Dimming phase cut-on
Dimming phase cut-off
Emergency included
No
Lum Data
Yes
Light Distribution
Light Source
LED
Luminous flux
3228 lm
Luminaire efficacy
120 lm/W
Correlated colour temperature
2700 K
Chromaticity tolerance (initial MacAdam)
5
Colour Rendering Index min.
70
Light Distribution
STD - standard
Beam angle
narrow road
Physical Characteristics
Length
286 mm
Width
286 mm
Height
111 mm
Weight
2.53 kg
Impact strength
IK08
Degree of protection
IP66
Reflector Color
Die-cast
Maintenance and Protection
Rated useful life (B10)
L95 100000 h 25 °C
Maintenance category CIE 97
E - Dust-proof IP5X
overviewFeatures_outdoor
Correlated colour temperature
2700 K
Luminous flux
3228 lm
Degree of protection
IP66
Norms and Standards
Certificates
Downloads
LE STRT Retrofit Kit
96684610 LE STRT PRE 12L70-727 NR CL2

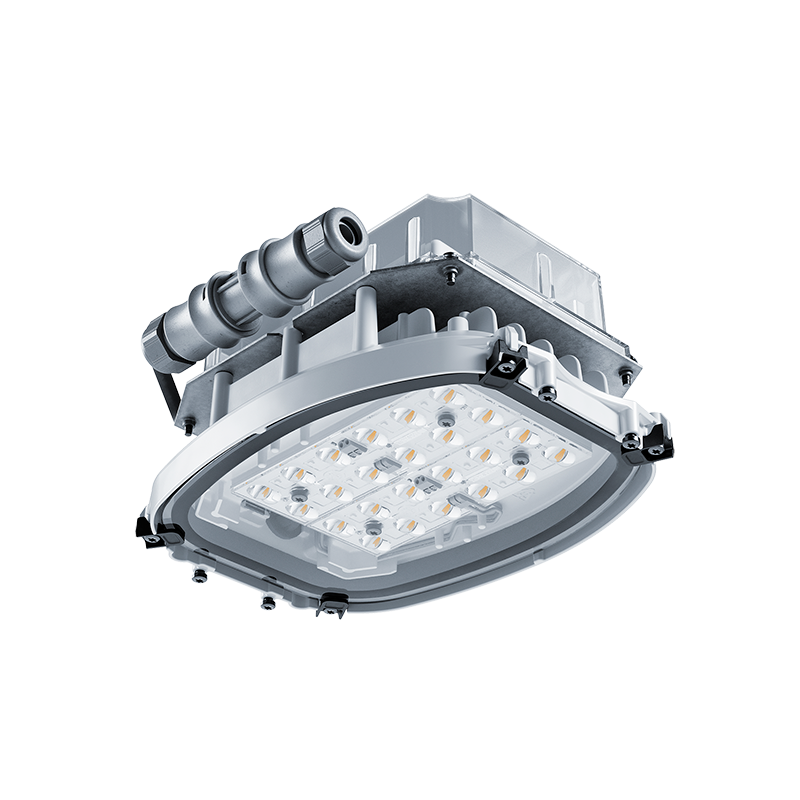

Ready to install LED light engine concept to update or upgrade performances of existing lighting fixtures. 12 LEDs driven at 700mA and narrow road optic. Class II electrical, IP66, Impact strength: IK08. Electronic, dimmable control gear. Housing: Die-cast aluminium with <0,1% of copper to drastically reduce the risk of corrosion. Fitting kit and fixing screws: stainless steel (plate painted in grey for seamless aesthetic integration into existing fixtures). Complete with 2700K LED
Dimensions: Ø286 x 111 mm
Luminaire luminous flux: 3228 lm
Luminaire efficacy: 120 lm/W
Weight: 2.53 kg
