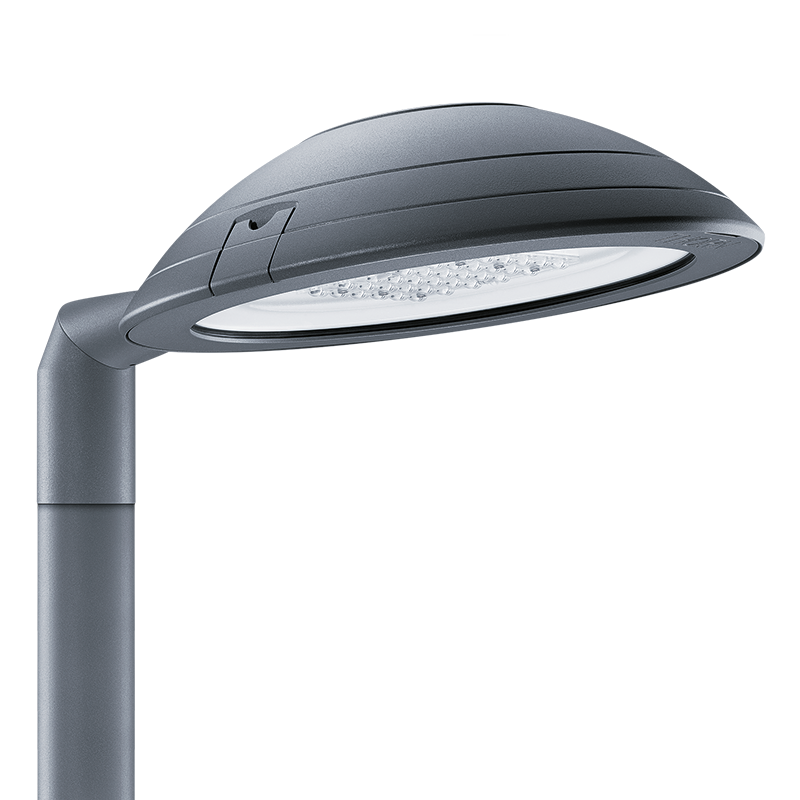

Thor S, Post Top Mounting
TR 36L50 740 NR C90 HFX CL2 FD WS6 ->
Article number: 96665247
EAN number: 5037319324652
53W 6225lm 4,000 K
Luminous flux
6225 lm
Control
Constant light output control gear
Correlated colour temperature
4000 K
Colour
Anthracite
Technical Data
Electrical Properties
EEC
E
Luminaire input power
53 W
Power factor
0.96
Rated voltage
220 - 240 V
Driver
Driver 1: 1 x DRV TR LCO 60W 1.05A 107V D#EXC3 VAR
Safety Class
SC2
Control
Constant light output control gear
Emergency included
No
Lum Data
Yes
Light Distribution
Light Source
LED
Luminous flux
6225 lm
Luminaire efficacy
117 lm/W
Correlated colour temperature
4000 K
Chromaticity tolerance (initial MacAdam)
5
Colour Rendering Index min.
70
Light Distribution
STD - standard
Beam angle
narrow road
Physical Characteristics
Dimensions
618x459x251 mm
Mounting type
Outdoor post top
Length
618 mm
Width
459 mm
Height
251 mm
Weight
9.35 kg
Colour
Anthracite
Impact strength
IK10
Degree of protection
IP66
Pole Diameter
60 mm
Reflector Color
Die-cast
Windage (Scx)
0.038 m2
Maintenance and Protection
Rated useful life (B10)
L98 100000 h 25 °C
overviewFeatures_outdoor
Correlated colour temperature
4000 K
Luminous flux
6225 lm
Degree of protection
IP66
Pole Diameter
60 mm
Norms and Standards
Certificates
Downloads
Thor S, Post Top Mounting
96665247 TR 36L50 740 NR C90 HFX CL2 FD WS6 ->
A small size, smart urban LED lantern with 36 LEDs driven at 500mA with narrow road optic and die-cast aluminium EN AC 47100 + CAT dome with anthracite finish (close to RAL7043). Class II electrical, IP66, IK10. Body: Die-cast aluminium (EN AC 47100 + CAT) treated against corrosion, powder coated anthracite (close to RAL7043), bracket: Die-cast aluminium (EN AC-47100 + CAT) treated against corrosion, powder coated anthracite (close to RAL7043). Enclosure: 6mm toughened flat glass. Screws and closing set: stainless steel. Pre-wired with 6m cable. Post top mounting to Ø60mm column, tilt 0°, adjustable from -15° to +10°. Equipped with 50% power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. It can be deactivated at installation with an easily accessible internal switch. Complete with 4000K LED.
Dimensions: 618 x 459 x 251 mm
Luminaire luminous flux: 6225 lm
Luminaire efficacy: 117 lm/W
Weight: 10.6 kg
Scx: 0.038 m²
