Escort
ESCORT I-SLCT 800/1K-840 HF
Article number: 96636082
EAN number: 5063016229273
7.3W 800lm 4,000 K
Luminous flux
800 lm
Control
fixed output control gear
Correlated colour temperature
4000 K
Technical Data
Electrical Properties
EEC
C
Luminaire input power
7.3 W
Power factor
0.77
Rated voltage
220 - 240 V
Driver
Driver 1: 1 x LC 10W 150-400mA flexC SC EXC
Safety Class
SC1
Control
fixed output control gear
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
800 lm
Luminaire efficacy
110 lm/W
Correlated colour temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
800lm
Beam angle
disymmetric
Physical Characteristics
Dimensions
352x102x79 mm
Mounting type
Surface mounted
Length
352 mm
Width
102 mm
Height
79 mm
Weight
0.944 kg
Impact strength
IK10
Degree of protection
IP65
Reflector Color
stove enamelled
Maintenance and Protection
Rated useful life (B10)
L75 100000 h 25 °C
overviewFeatures_indoor
Correlated colour temperature
4000 K
Luminous flux
800 lm
Luminaire efficacy
110 lm/W
Luminaire input power
7.3 W
Degree of protection
IP65
Mounting type
Surface mounted
Norms and Standards
Certificates
Downloads
Escort
96636082 ESCORT I-SLCT 800/1K-840 HF

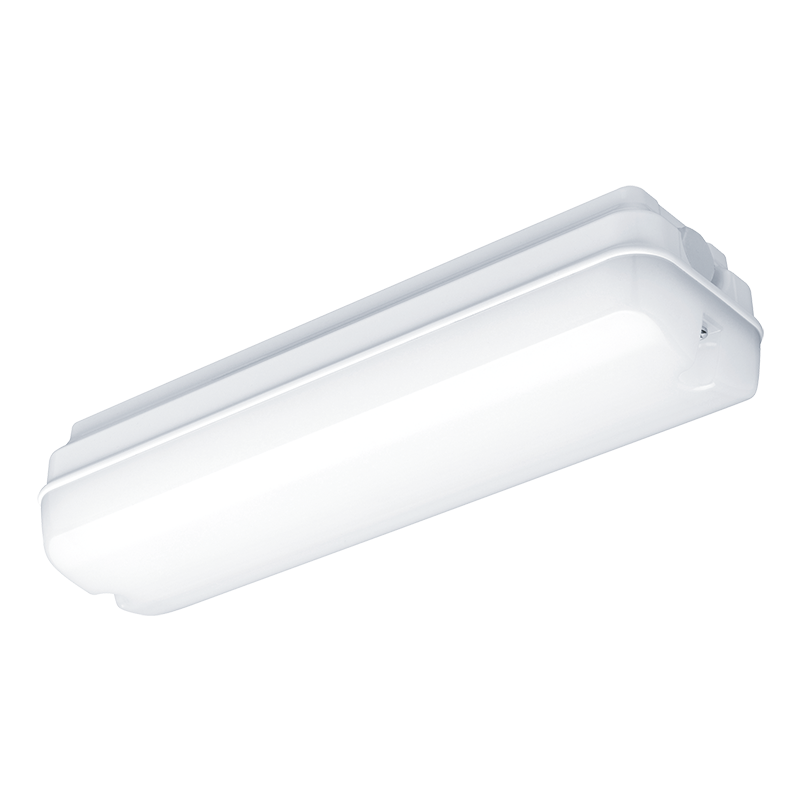

A self-contained, IP65, weatherproof bulkhead luminaire. Electronic, fixed output control gear. Durable, white, stove enamelled Die-cast aluminium body and opal polycarbonate diffuser with vandal resistant screw fixings (Type T25 TORX screwdriver required). Suitable for interior and exterior industrial or public amenity usage. Lumen output selectable via internal switch. Complete with 4000K LED
ambient temperature: 0°C to +25°C
Dimensions: 352 x 102 x 79 mm
Luminaire luminous flux: 800 lm
Luminaire efficacy: 110 lm/W
Weight: 1 kg
