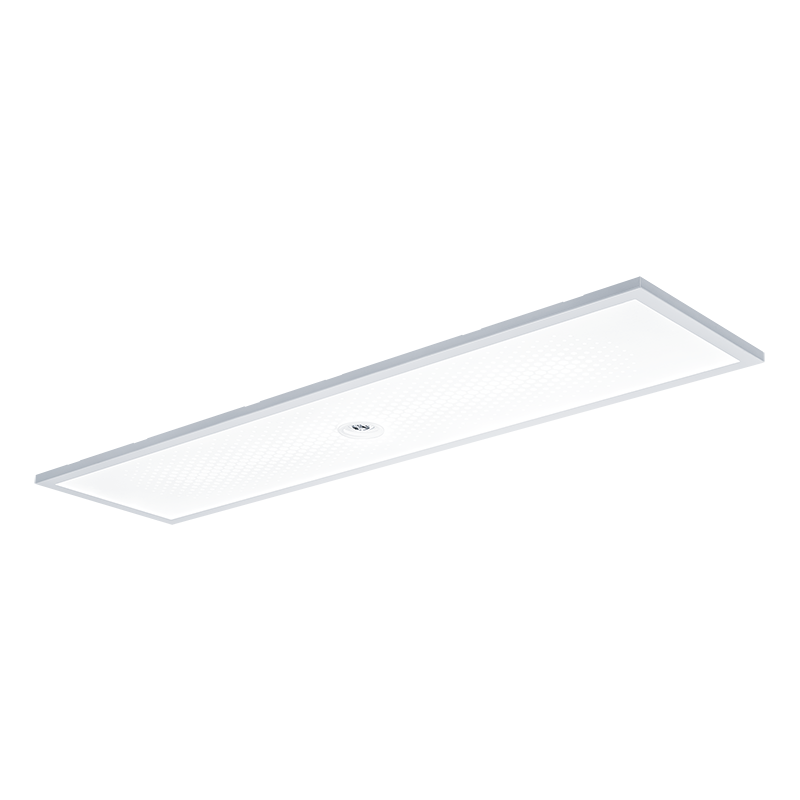

Omega Pro 2 CKITplus, HX optic
OP2 3800-840 CKIT+ HX E3 3X12
Article number: 92914016
EAN number: 5037319736080
27.4W 3800lm 4,000 K
Luminous flux
3800 lm
Control
Dimming DALI
Correlated colour temperature
4000 K
Colour
White
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
D
Luminaire input power
27.4 W
Power factor
0.98
Standby Power
0.15 W
Rated voltage
220 - 240 V
Driver
Driver 1: 1 x EM TR EM TR EM R2A BASIC NM 132 2W
Driver 2: 1 x LCA 35W 150-700mA one4all lp PRE
Safety Class
SC2
Control
Dimming DALI
Emergency included
Yes
Lum Data
Yes
Light Distribution
Light Source
LED
Luminous flux
3800 lm
Luminaire efficacy
139 lm/W
Correlated colour temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Dimensions
1197x297x59 mm
Mounting type
Ceiling recessed
Length
1197 mm
Width
297 mm
Height
59 mm
Weight
6.09 kg
Colour
White
Impact strength
IK03
Degree of protection
IP40_IP20
Maintenance and Protection
Rated useful life (B10)
L90 50000 h 25 °C
Maintenance category CIE 97
D - Enclosed IP2X
overviewFeatures_indoor
Correlated colour temperature
4000 K
Luminous flux
3800 lm
Luminaire efficacy
139 lm/W
Luminaire input power
27.4 W
Degree of protection
IP40_IP20
Mounting type
Ceiling recessed
Norms and Standards
Certificates
Downloads
Accessories
OP2 CKIT+ BC
Article Number 96633270
Plug and Play-Emergency-set
Price on request
Delivery time on request
OP2 CKIT+ HFSX
Article Number 96633268
Plug and Play-Emergency-set
Price on request
Delivery time on request
OP2 SAFETY WIRE KIT MRG
Article Number 96633199
Suspension kit
Price on request
Delivery time on request
OP2 CONCEALED CEILING MTG KIT PULL UP
Article Number 96633271
Price on request
Delivery time on request
OP2 CKIT+ BC E3D
Article Number 96633264
Plug and Play-Emergency-set
Price on request
Delivery time on request
OP2 SUSPENSION KIT 1500 MSW
Article Number 96633197
Suspension set
Price on request
Delivery time on request
OP2 SURFACE MTG KIT 3X12
Article Number 96633191
Surface housing
Price on request
Delivery time on request
OP2 HIDDEN CEILING KIT CLICK IN 3x12
Article Number 96633300
Bracket
Price on request
Delivery time on request
Omega Pro 2 CKITplus, HX optic
92914016 OP2 3800-840 CKIT+ HX E3 3X12
A recessed/surface/suspended, edge-lit LED luminaire. LED driver, DALI-2 dimmable with 3 hour, manual test, emergency lighting circuit. Class II electrical, IP40_IP20, Impact strength: IK03. Body: sheet steel, finished white (close to RAL9016). Diffuser: UV-stabilised polycarbonate hexagonal comfort optic with central control pod hole. Electrical connection via 7 pole piano key terminals, loop-in/loop-out possible. Complete with 4000K LED,
Dimensions: 1197 x 297 x 59 mm
Luminaire luminous flux: 3800 lm
Luminaire efficacy: 139 lm/W
Weight: 6.09 kg
