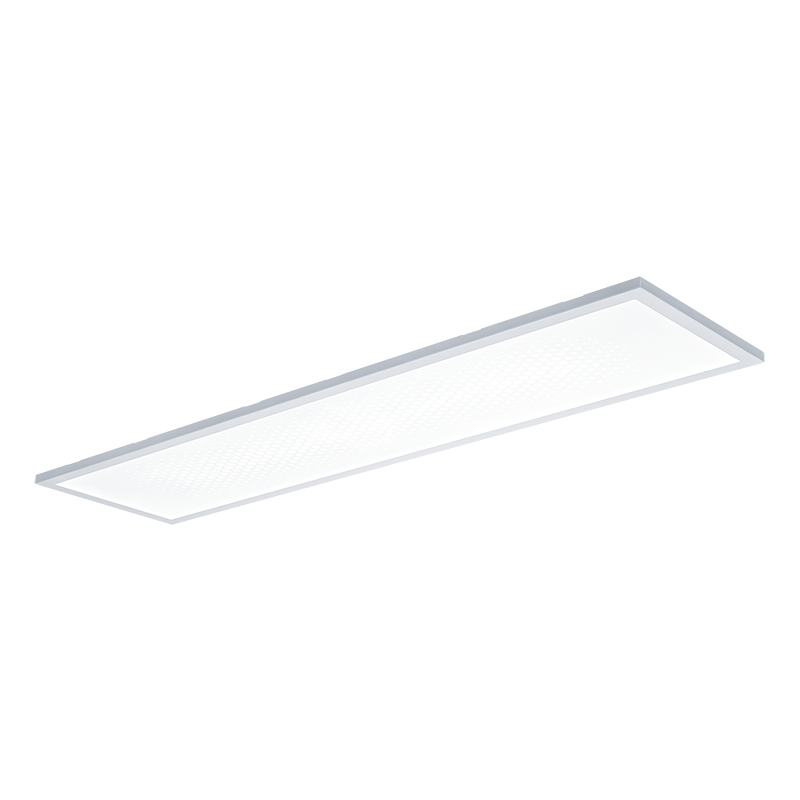

Omega Pro 2, HX optic
OP2 3800-840 HX HF 3X12
Article number: 92913223
EAN number: 5037319727040
28.2W 3800lm 4,000 K
Luminous flux
3800 lm
Control
Fixed output
Correlated colour temperature
4000 K
Colour
White
Login to view your exclusive prices and stock availability
No account yet? Register and upgrade to access your individual pricing and stock info.
Made to orderAvailable in about 20 working days
Technical Data
Electrical Properties
EEC
D
Luminaire input power
28.2 W
Power factor
0.95
Rated voltage
220 - 240 V
Driver
Driver 1: 1 x LC 25W 350-1050mA flexC SR EXC
Safety Class
SC2
Control
Fixed output
Emergency included
No
Lum Data
No
Light Distribution
Light Source
LED
Luminous flux
3800 lm
Luminaire efficacy
135 lm/W
Correlated colour temperature
4000 K
Chromaticity tolerance (initial MacAdam)
3
Colour Rendering Index min.
80
Light Distribution
STD - standard
Physical Characteristics
Dimensions
1197x297x57 mm
Mounting type
Ceiling recessed
Length
1197 mm
Width
297 mm
Height
57 mm
Weight
5.3 kg
Colour
White
Impact strength
IK03
Degree of protection
IP40_IP20
Maintenance and Protection
Rated useful life (B10)
L90 50000 h 25 °C
Maintenance category CIE 97
D - Enclosed IP2X
overviewFeatures_indoor
Correlated colour temperature
4000 K
Luminous flux
3800 lm
Luminaire efficacy
135 lm/W
Luminaire input power
28.2 W
Degree of protection
IP40_IP20
Mounting type
Ceiling recessed
Norms and Standards
Certificates
Downloads
Accessories
Omega Pro 2, HX optic
92913223 OP2 3800-840 HX HF 3X12
A recessed/surface/suspended, edge-lit LED luminaire. LED driver, Fixed output. Class II electrical, IP40_IP20, Impact strength: IK03. Body: sheet steel, finished white (close to RAL9016). Diffuser: UV-stabilised polycarbonate hexagonal comfort optic. Electrical connection via piano key terminals, loop-in/loop-out possible. Complete with 4000K LED,
Dimensions: 1197 x 297 x 57 mm
Luminaire luminous flux: 3800 lm
Luminaire efficacy: 135 lm/W
Weight: 5.28 kg
