Chalice
Projekt
Boozt Fulfilment Centre, Sverige

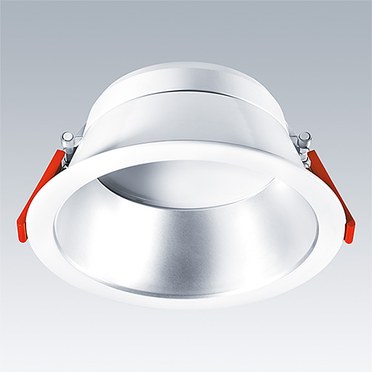

Wembley Stadium, StorbritannienLED Downlight familj i två storlekar erbjuder direkt uppgradering av lysrörslösningar med upp till 3000 lm
- Hög effektivitet på 106lm/W för låg energiförbrukning
- Mindre än 100mm totalhöjd för tak med lågt infällnadsdjup
- IP54 som standard för användning in badrum/tvättrum
- Ersätt lysrörslösningar med mindre underhåll och livstid på L80 50.000 timmar
- ANDRA ALTERNATIV FINNS TILLGÄNGLIGA (dimning, nödljus etc.). Se konfigurationsalternativ i myProduct.
Utförande
Armaturhölje: Aluminium vitmålad
Frontring: RAL9016
Reflektorfinish: Satin
Installering och montering
Chalice kan installeras direkt från lådan i flera olika typer av innertak med varierande tjocklek från 1 mm–40 mm. Det externa drivdonet gör installation
och underhåll snabb och enkelt.
New Product
LumExpress Product
eControl Product
▼ Chalice 200
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | E-nummer | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| CHAL 200 LED1400-830 HF RSB | 13 | 1370 | LED | 0.91 | 96629019 | |||||
| CHAL 200 LED1400-840 HF RSB | 13 | 1440 | LED | 0.91 | 96629020 | |||||
| CHAL 200 LED2000-830 HF RSB | 17 | 1990 | E7472639 | LED | 0.91 | 96642304 | ||||
| CHAL 200 LED2000-840 HF RSB | 17 | 2090 | E7472640 | LED | 0.91 | 96642305 | ||||
| CHAL 200 LED3000-830 HF RSB | 26 | 2970 | LED | 0.91 | 96629021 | |||||
| CHAL 200 LED3000-840 HF RSB | 26 | 3130 | LED | 0.91 | 96629022 |
▼ Chalice 150
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED1400-830 HF RSB | 12 | 1340 | LED | 0.49 | 96629023 | ||||
| CHAL 150 LED1400-840 HF RSB | 12 | 1410 | LED | 0.49 | 96629024 | ||||
| CHAL 150 LED2000-830 HF RSB | 17 | 1880 | LED | 0.49 | 96629025 | ||||
| CHAL 150 LED2000-840 HF RSB | 17 | 1980 | LED | 0.49 | 96629026 | ||||
| CHAL 150 LED3000-830 HF RSB | 27 | 2740 | LED | 0.49 | 96629027 | ||||
| CHAL 150 LED3000-840 HF RSB | 27 | 2880 | LED | 0.49 | 96629028 |
▼ Chalice 200-med nödbelysning
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 200 LED1400-830 HF E3 RSB | 13 | 1370 | LED | 1.93 | 92900789 | ||||
| CHAL 200 LED1400-830 HF E3TX RSB | 13 | 1370 | LED | 1.93 | 92900790 | ||||
| CHAL 200 LED1400-840 HF E3 RSB | 13 | 1440 | LED | 1.93 | 92900794 | ||||
| CHAL 200 LED1400-840 HF E3TX RSB | 13 | 1440 | LED | 1.93 | 92900795 | ||||
| CHAL 200 LED2000-830 HF E3 RSB | 17 | 1990 | LED | 1.93 | 96642316 | ||||
| CHAL 200 LED2000-840 HF E3 RSB | 17 | 2090 | LED | 1.93 | 96642317 | ||||
| CHAL 200 LED3000-830 HF E3 RSB | 26 | 2970 | LED | 1.93 | 92900732 | ||||
| CHAL 200 LED3000-830 HF E3TX RSB | 26 | 2970 | LED | 1.93 | 92900733 | ||||
| CHAL 200 LED3000-840 HF E3 RSB | 26 | 3130 | LED | 1.93 | 92900656 | ||||
| CHAL 200 LED3000-840 HF E3 RSB WL4 | 26 | 3130 | LED | 1.93 | 92902481 | ||||
| CHAL 200 LED3000-840 HF E3TX RSB | 26 | 3130 | LED | 1.93 | 92900744 |
▼ Chalice 200-med ljusreglering
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | E-nummer | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| CHAL 200 LED1400-830 HFIX RSB | 13 | 1370 | LED | 0.91 | 92900791 | |||||
| CHAL 200 LED1400-840 HFIX EC RSB | 13 | 1440 | LED | 0.91 | 92901061 | |||||
| CHAL 200 LED1400-840 HFIX RSB | 13 | 1440 | LED | 0.91 | 92900796 | |||||
| CHAL 200 LED1400-927-65 HFIX RSB | 19 | 1400 | LED | 0.93 | 96633611 | |||||
| CHAL 200 LED2000-830 HFIX RSB | 17 | 1990 | E7472693 | LED | 0.91 | 96642310 | ||||
| CHAL 200 LED2000-840 HFIX RSB | 17 | 2090 | E7472688 | LED | 0.91 | 96642311 | ||||
| CHAL 200 LED2000-927-65 HFIX RSB | 26 | 2000 | LED | 0.93 | 96633612 | |||||
| CHAL 200 LED3000-830 HFIX RSB | 26 | 2970 | LED | 0.91 | 92900729 | |||||
| CHAL 200 LED3000-840 HFIX RSB | 26 | 3130 | LED | 0.91 | 92900688 |
▼ Chalice 200-med ljusreglering och nödbelysning
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 200 LED1400-840 HFIX E3 RSB | 13 | 1440 | LED | 1.93 | 92900797 | ||||
| CHAL 200 LED1400-840 HFIX E3TX RSB | 13 | 1440 | LED | 1.93 | 92900798 | ||||
| CHAL 200 LED2000-830 HFIX E3 RSB | 1.93 | 96642322 | |||||||
| CHAL 200 LED2000-840 HFIX E3 RSB | 17 | 2090 | LED | 1.93 | 96642323 | ||||
| CHAL 200 LED3000-830 HFIX E3 RSB | 26 | 2970 | LED | 1.93 | 92900730 | ||||
| CHAL 200 LED3000-830 HFIX E3TX RSB | 26 | 2970 | LED | 1.93 | 92900731 | ||||
| CHAL 200 LED3000-840 HFIX E3 RSB | 26 | 3130 | LED | 1.93 | 92900743 | ||||
| CHAL 200 LED3000-840 HFIX E3TX RSB | 26 | 3130 | LED | 1.93 | 92900742 |
▼ Chalice 200 basicDIM
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 200 LED1400-840 BC RSB | 13 | 1440 | LED | 0.84 | 96631228 | ||||
| CHAL 200 LED2000-840 BC RSB | 17 | 2090 | LED | 0.97 | 96631227 | ||||
| CHAL 200 LED3000-840 BC RSB | 26 | 3130 | LED | 0.97 | 92909117 |
▼ Chalice 200 basicDIM, nödljus
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 200 LED1400-840 BC E3 RSB | 13 | 1440 | LED | 1.99 | 92912548 | ||||
| CHAL 200 LED2000-840 BC E3 RSB | 17 | 2090 | LED | 1.99 | 92912547 | ||||
| CHAL 200 LED3000-840 BC E3 RSB | 26 | 3130 | LED | 1.99 | 92912549 |
▼ Chalice 150 (varianter)
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED3000-830 HFIX EC RSB WO5 | 27 | 2740 | LED | 0.49 | 92901424 |
▼ Chalice 150-med nödbelysning
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED1400-830 HF E3 RSB | 12 | 1340 | LED | 1.51 | 92900779 | ||||
| CHAL 150 LED1400-830 HF E3TX RSB | 12 | 1340 | LED | 1.51 | 92900780 | ||||
| CHAL 150 LED1400-840 HF E3 RSB | 12 | 1410 | LED | 1.51 | 92900672 | ||||
| CHAL 150 LED1400-840 HF E3TX RSB | 12 | 1410 | LED | 1.51 | 92900752 | ||||
| CHAL 150 LED2000-830 HF E3 RSB | 17 | 1880 | LED | 1.51 | 92900784 | ||||
| CHAL 150 LED2000-830 HF E3TX RSB | 17 | 1880 | LED | 1.51 | 92900785 | ||||
| CHAL 150 LED2000-840 HF E3 RSB | 17 | 1980 | LED | 1.51 | 92900758 | ||||
| CHAL 150 LED2000-840 HF E3TX RSB | 17 | 1980 | LED | 1.51 | 92900759 | ||||
| CHAL 150 LED3000-830 HF E3 RSB | 27 | 2740 | LED | 1.51 | 92900727 | ||||
| CHAL 150 LED3000-830 HF E3TX RSB | 27 | 2740 | LED | 1.51 | 92900728 | ||||
| CHAL 150 LED3000-840 HF E3 RSB | 27 | 2880 | LED | 1.51 | 92900762 | ||||
| CHAL 150 LED3000-840 HF E3TX RSB | 27 | 2880 | LED | 1.51 | 92900661 |
▼ Chalice 150-med ljusreglering
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED1400-840 HFIX RSB | 12 | 1410 | LED | 0.54 | 92900679 | ||||
| CHAL 150 LED1400-927-65 HFIX RSB | 23 | 1400 | LED | 0.61 | 96633608 | ||||
| CHAL 150 LED2000-840 HFIX RSB | 17 | 1980 | LED | 0.54 | 92900680 | ||||
| CHAL 150 LED2000-927-65 HFIX RSB | 29 | 1850 | LED | 0.61 | 96633609 | ||||
| CHAL 150 LED3000-830 HFIX RSB | 27 | 2740 | LED | 0.59 | 92900724 | ||||
| CHAL 150 LED3000-840 HFIX RSB | 27 | 2880 | LED | 0.59 | 92900671 |
▼ Chalice 150-med ljusreglering och nödbelysning
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED1400-840 HFIX E3 RSB | 12 | 1410 | LED | 1.51 | 92900765 | ||||
| CHAL 150 LED1400-840 HFIX E3TX RSB | 12 | 1410 | LED | 1.51 | 92900751 | ||||
| CHAL 150 LED2000-840 HFIX E3 RSB | 17 | 1980 | LED | 1.51 | 92900760 | ||||
| CHAL 150 LED2000-840 HFIX E3TX RSB | 17 | 1980 | LED | 1.51 | 92900761 | ||||
| CHAL 150 LED3000-830 HFIX E3 RSB | 27 | 2740 | LED | 1.51 | 92900725 | ||||
| CHAL 150 LED3000-830 HFIX E3TX RSB | 27 | 2740 | LED | 1.51 | 92900726 | ||||
| CHAL 150 LED3000-840 HFIX E3 RSB | 27 | 2880 | LED | 1.51 | 92900763 | ||||
| CHAL 150 LED3000-840 HFIX E3TX RSB | 27 | 2880 | LED | 1.51 | 92900764 |
▼ Chalice 150 basicDIM
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED1400-840 BC RSB | 12 | 1410 | LED | 0.57 | 96631230 | ||||
| CHAL 150 LED2000-840 BC RSB | 17 | 1980 | LED | 0.57 | 96631229 | ||||
| CHAL 150 LED3000-840 BC RSB | 27 | 2880 | LED | 0.62 | 92912550 |
▼ Chalice 150 basicDIM, nödljus
| Beskrivning | Armatureffekt (W) | Armaturljusflöde (lm) | Type | Vikt (kg) | SAP nummer | ||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL 150 LED1400-840 BC E3 RSB | 12 | 1410 | LED | 1.59 | 92912553 | ||||
| CHAL 150 LED2000-840 BC E3 RSB | 17 | 1980 | LED | 1.64 | 92912552 | ||||
| CHAL 150 LED3000-840 BC E3 RSB | 27 | 2880 | LED | 1.64 | 92912551 |
▼ Chalice-tillbehör
| Beskrivning | Vikt (kg) | SAP nummer | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CHAL MSF HOUSING | 1.10 | 96628908 | |||||||
| CHAL MSF MSW1 1500mm | 0.24 | 96238862 | |||||||
| CHALICE 150 CEILING RING 160-170 WH | 0.41 | 96633601 | |||||||
| CHALICE 150 CEILING RING 180-190 WH | 0.48 | 96633602 | |||||||
| CHALICE 200 CEILING RING 210-220 WH | 0.44 | 96633600 | |||||||
| CHALICE 200 CEILING RING 230-240 WH | 0.48 | 96633599 | |||||||
| CHALICE/CETUS3 200 CEILING RING 250MM WH | 0.56 | 96633598 |
